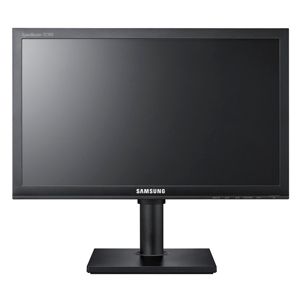

The SAMSUNG TC220 is a 22-inch LCD monitor which is perfect for B2B market and to be used in the Thin Client Network. The all-in-one design uses the innovative LED Back Light Unit, bringing you an eco-friendly that not only reduces energy consumption, but also creates more space on your desk. With the crystal-clear screen, these TC180s can also be used as Internet monitor or digital signage monitor.
Unlike other Thin Clients, the Samsung TC180 come ready-to-view. With their high-performance, high-quality LCD screens, they are a one-step server based network solution. Their high brightness and contrast ratio allow them to display images with real depth of color, clarity, and detail while their 5ms response time leaves many conventional PC monitors standing still. Capable of displaying high resolution images with immaculate integrity, the Samsung TC180 open up an new world of opportunity to a variety of users, presenting both still images and high-speed video to perfection.
Creating a Comprehensive Resource Archive
The advantage of storing information on a central server is that resources can be stored and shared in a more efficient and effective way. When data is uploaded to the server, it is secured against loss and damage far more than when it is contained on individual PCs, while at the same time being made available to a wider group of users. This benefits not only present-day users, but also creates a valuable resource archive that future-users can access and enjoy. Searching information stored on a central server is fast, easy, and intuitive, enabling information to be shared and subjects to be taught in a future-forward way.
Creative Space-Saving Solutions
When space is a key factor, PCs can be bulky and make a workspace appear more cluttered than it needs to be. The inclusion of built-in speakers and the elimination of the need for an external hard drive means that each workspace can be kept as clear and clean as can be, thereby enabling a higher workstation to space ratio, greater productivity. and enhanced user-comfort.
Easier Management, Easier Maintenance
For education purposes, a central server system is not only cost-effective to maintain due to lower software outlay, but it allows the system administrator to control, manage, and update the entire system from one__.location, making his or her job a lot easier. Because the IT administrator can dedicate their time working on the central server, time and money is saved, making the system easier to manage and maintain.
LED Panel
Make sure your environmental impact is a positive one. Samsungs Cloud Display uses innovative LED Back Light Unit (BLU) technology which saves energyup to 40% compared to conventional CCFL screens. Whats even better is this LED panel is halogen- and mercury-free, so youll help conserve our planets natural resources and reduce carbon emissions.
Security You can Trust
The security offered by a Thin Client network is second-to-none. With important confidential data stored on the central server, the system is efficiently secured against viruses, hacks, and Internet attacks, thereby providing you with a cost- effective system that makes you and your customers feel fully protected at all times.
All-in-One Design
Samsungs innovative Cloud Display integrates a thin client into the LED screen for greater efficiency. Its contemporary and innovative design ensures that keeping your work environment clean and tidy is simple. The benefit of having a separate thin client box is that professionals can use their desk space in a much more efficient manner. Other great features include Power-over-Ethernet option, which reduces a power cable by providing power through a LAN cable, and the embedded speaker system. These innovative features come together perfectly for an all-in-one design that enhances desktop productivity.
By eliminating the expense of individual software licenses and personnel support for every workstation, Samsung Thin Client solutions are cost-effective to install and easier for your IT department to manage. Software and data can be installed, managed, and updated on the central server and then distributed across the entire Samsung Thin Client network, enabling each and every workstation to be managed and maintained for a fraction of the cost of a PC-based system.
Monitor Remote Management S/W
Samsungs Cloud Monitor delivers amazing levels of convenience by using the remote management software of MagicRMS Pro. It delivers a more centralised operation and saves administrators the time and hassle associated with physically having to visit each device for routine checks. Other benefits include real-time device status monitoring, an efficient and accurate inventory process and finally remote upgrading of firmware to all devices. With so many standout benefits for day-to-day operations, the MagicRMS software really is essential to any efficient office environment.
Specifications
Display
| Screen Size |
22" |
| Resolution |
1,680 x 1,050 |
| Brightness |
250 cd/m |
| Contrast Ratio |
1,000:1 |
| Aspect Ratio |
16:10 |
| Pixel Pitch |
0.282 x 0.282 mm |
| Color Supported |
16.7 M |
| Viewing Angle (H/V) |
170 / 160 deg (CR10), 178 / 178 deg (CR5) |
| Response Time (G-to-G) |
5 ms |
Signal Input
| Video Signal |
D-SUB |
Power
| Power Consumption |
45 W (Max) / 30 W (Typ) |
| Power Supply |
Built-in |
| Stand By Power(DPMS) |
Less than 2.7 W |
Sound
| Speaker Type |
1 W x 2 (Optional) |
Network Option
| CPU |
AMD Ontario 1.0GHz Dual |
| GPU |
AMD Radeon HD6290 |
| Storage |
SSD 8GB |
| Memory |
DDR3 1GB(Citrix Zero)/2GB(WES7) |
| Ethernet |
Gigabit Ethernet |
Dimension
| Product Dimensions (Without Stand) |
508.0 x 344.3 x 49.0 mm |
| Product Dimensions (With Stand) |
508.0 x 396.3 x 216.6 mm |
| Shipment Dimensions |
585.0 x 422.0 x 167 mm |
Weight
| Product Weight |
5.5 kg |
| Shipment Weight |
7.4 kg |
