All stock codes associated to this product
LF24MGWLBM/XY, 1821385
TS240 Cloud Display 24 inch - C Series - LCD WES7 Thin Client
- Crystal-clear LCD screen
- Creating a comprehensive resource archive
- Creative space-saving solutions
- Easier management, easier maintenance
Features

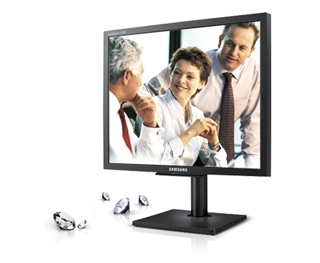

Crystal-clear LCD screen
The Samsung TC190 and TC240 come ready-to-view. With their high-performance, high-quality LCD screens, they are a one-step server based network solution. Their high brightness and contrast ratio allow... them to display images with depth of colour, clarity, and they also have a fast 5ms response time. Capable of displaying high resolution images with immaculate integrity, the Samsung TC190 and TC240 open up an new world of opportunity to a variety of users exceptionally presenting both still images and high-speed video to perfection.
Creating a comprehensive resource archive
The advantage of storing information on a central server is that resources can be stored and shared in an efficient and effective way. When data is uploaded to the server, this can help to secure it... against loss and damage , while at the same time being made available to a wider group of users. This benefits not only users, but also creates a valuable resource archive that future-users can access and enjoy. Searching information stored on a central server is fast, easy, and intuitive, enabling information to be shared and subjects to be taught in a future-forward way.
Creative space-saving solutions
When space is limited, PCs can be bulky and make a workspace appear more cluttered than it needs to be. The elimination of the need for an external hard drive means that each workspace can be kept clear... and clean, thereby enabling a high workstation to space ratio, great productivity. and enhanced user-comfort. They are managed, maintained and controlled from the central server. This can help maintenance requirements.
Easier management, easier maintenance
For education purposes, a central server system is not only easy to maintain , but it allows the system administrator to control, manage, and update the entire system from one location, making his or... her job simple. Because the IT administrator can dedicate their time working on the central server, time is saved, making the system easier to manage and maintain.
Security you can trust
The security offered by a Thin Client network is a great advantage. With important confidential data stored on the central server the Thin Client Network helps to secure the system against viruses,... hacks, and Internet attacks, thereby providing you with a system that means your customers feel fully protected at all times.
Saving money for you and your customers
By eliminating the requirement for individual software licenses and personnel support for every workstation, Samsung Thin Client solutions are effective and easy for your IT department to manage. Software... and data can be installed, managed, and updated on the central server and then distributed across the Samsung Thin Client network, enabling each and every workstation to be managed and maintained with ease.
Specifications:
Display
| Screen Size |
23.6" |
| Brightness |
300cd/m |
| Contrast Ratio |
1,000:1 |
| Resolution |
1,920 x 1,080 |
| Response Time |
5 |
| Viewing Angle (Horizontal/Vertical) |
170 / 160 (CR 10) |
| Colour Supported |
16.7 Mil. |
Interface
| Audio In/Out |
1 watts x 2 (optional) |
| Special |
4 x USB2.0 |
General Feature
| Embedded Function |
[System] -CPU: AMD 210U (1.5G Hz) -OS: WES7 - Extra video memory (64MB) - DDR2 2G (optional) - Flash 4G (optional) [S / W] - Windows XP Service Pack 3 - Internet Explorer 7.0 - Microsoft RDP 6.1 - Citrix XenApp [Connectivity] - Serial Port - Headphone / Line out, Microphone in - USB2.0 (1) |
| OS Compatibility |
Window Embedded Standard 7 |
| Energy/Environment Mark |
None |
| Plug&Play |
DDC 2B |
| Cabinet Colour |
Black |
Design
| Stand Type |
Swivel / Height Adjustable |
| Stand Function |
None |
| Wall Mount |
VESA 100mm (VESA 100 x 200mm also available) |
Power
| Power consumption |
65 watts |
| type |
Built-in |
| Stand-by Power (DPMS) |
< 2.7 watts |
Dimension
| Set Dimension with Stand (WxHxD) |
568.6 x 385.2 x 226.0mm |
| Set Dimension without Stand (WxHxD) |
568.6 x 341.9 x 77.7mm |
| Package Dimension (WxHxD) |
650 x 418 x192mm |
Weight
| Package Weight |
Weight > Shipment Weight (kg): [ 10.2 (without speaker)] |
Signal Input
| Connector |
15pin D-sub |
| Sync Signal |
Separate H / V, Composite |
| Video Signal |
Analog RGB |
Usage note
- (1) 4 - 1 Giga Ethernet - VGA in (for PC monitor), VGA out (for Dual Video)
