All stock codes associated to this product
C746DN(41G0081)

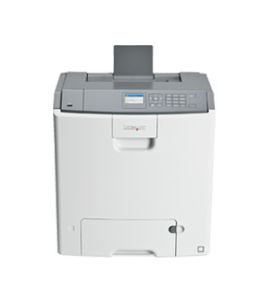

Lexmark C746dn
Part#: 41G0081
High-quality colour support for midsize workgroups
The Lexmark C746dn delivers the easy-to-use features and reliable performance essential to midsize workgroups. Energy-saving features make responsible printing easy.
Colour
2.4-inch LCD
Up to 35ppm
Duplex (2-Sided)
Network
Eco-Mode
Features
INTUITIVE NAVIGATION
The 6-cm LCD is easy to read and the colour graphics make navigation and troubleshooting intuitive.
CORPORATE COLOUR MATCHING
Match corporate colours on marketing collateral and brand-sensitive text and graphics with Lexmark Named Color Replacement and PANTONE® calibration.
USE LESS ENERGY
The instant warm-up fuser reduces energy consumption and delivers a time to first page as fast as 9 seconds in both black and colour.
MULTIPLE MEDIA SUPPORT
Expand input capacity with optional paper drawers that let you load multiple paper types and boost total input capacity up to 4,300 sheets.
ECO-FRIENDLY PRINTING
Print responsibly with Eco-Settings that let you customise print settings and Hibernate Mode which reduces energy consumption to less than one watt.
HIGH-SPEED PROCESSING
The high-speed processor and Gigabit Ethernet networking mean fast data transfer and fast processing, even on complex colour documents.
Specifications:
- Print Technology
- Colour Laser
- Print Resolution, Black
- 1200 x 1200 dpi
4800 Colour Quality (2400 x 600 dpi)
- Print Resolution, Colour
- 1200 x 1200 dpi
4800 Colour Quality (2400 x 600 dpi)
- Time to First Page (Black) As fast as
- 9 seconds
- Time to First Page (Colour) as fast as
- 9 seconds
- Print Speed (A4, Colour): Up to
- 33 ppm
- Print Speed (A4, Black) Duplex: Up to
- 22 spm
- Recommended Monthly Page Volume
- 1500 - 9200 pages
- Maximum Monthly Duty Cycle: Up to
- 85000 pages per month
- Duty Cycle Notes
- "Recommended Monthly Page Volume" is a range of pages that helps customers evaluate Lexmarks product offerings based on the average number of pages customers plan to print on the device each month. Lexmark recommends that the number of pages per month be within the stated range for optimum device performance, based on factors including: supplies replacement intervals, paper loading intervals, speed, and typical customer usage.
"Maximum Monthly Duty Cycle" is defined as the maximum number of pages a device could deliver in a month using a multishift operation. This metric provides a comparison of robustness in relation to other Lexmark printers and MFPs.
- Print Noise Level, Operating
- 54 dBA
- Duplex Print Noise Level, Operating
- 55 dBA
- Expandable Memory Options
- Yes
- Hard Disk
- Option available
- Printable Area (metric)
- 4.2 mm of the top, bottom, right and left edges (within)
- Supplies Yield
- *Average continuous black or continuous composite CMY declared cartridge yield up to this number of standard pages in accordance with ISO/IEC 19798.
12,000*-page Black High Yield Toner Cartridge
7,000*-page Colour (CMY) Toner Cartridges
- Photoconductor Estimated Yield: Up to
- 20,000 pages, based on 3 average letter/A4-size pages per print job
- Cartridge(s) Shipping with Product
- 6,000*-page Black Starter Return Program Toner Cartridge
6,000*-page Colour (CMY) Starter Return Program Toner Cartridges
- Photoconductor Notes
- Actual Yield may vary based on other factors such as device speed, paper size and feed orientation, toner coverage, tray source, percentage of black-only printing and average print job complexity.
- Paper Handling Standard
- 300-Sheet Output Bin
Integrated Duplex
100-Sheet Multipurpose Feeder
550-Sheet Input Tray
- Paper Handling Optional
- 550-Sheet Drawer
2,000-Sheet High Capacity Feeder
550-Sheet Specialty Media Drawer
- Number of Paper Inputs, Standard
- 2
- Number of Paper Inputs, Maximum
- 6
- Paper Input Capacity, Standard: Up to
- 650 pages 75 gsm bond
- Paper Input Capacity, Maximum: Up to
- 4300 pages 75 gsm bond
- Paper Output Capacity, Standard: Up to
- 300 pages 75 gsm bond
- Paper Output Capacity, Maximum: Up to
- 300 pages 75 gsm bond
- Duplex (2-sided) Printing
- Integrated Duplex
- Media Types Supported
- Card Stock
Envelopes
Paper Labels
Plain Paper
Transparencies
Vinyl Labels
Refer to the Card Stock & Label Guide
- Media Sizes Supported
- 10 Envelope
7 3/4 Envelope
9 Envelope
A4
A5
B5 Envelope
C5 Envelope
DL Envelope
B5
Executive
Folio
JIS-B5
Legal
Letter
Statement
Universal
Oficio
A6
- Network Management Protocols
- HTTP
HTTPs (SSL*/TLS)
SNMPv3
WINS
IGMP
BOOTP, RARP
APIPA (AutoIP)
DHCP
ICMP
DNS
SNMPv2c
Bonjour
DDNS
mDNS
ARP
NTP
Telnet
Finger
*This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit.
- Network Printing Methods
- LPR/LPD
Direct IP (Port 9100)
HTTP
Enhanced IP (Port 9400)
FTP, TFTP
IPP 1.1 (Internet Printing Protocol)
ThinPrint .print integration
- Network Protocol Support
- TCP/IP IPv4
AppleTalk
TCP/IP IPv6
TCP
UDP
- Network Security
- SNMPv3
802.1x Authentication: MD5, MSCHAPv2, LEAP, PEAP, TLS, TTLS
IPSec
- Microsoft Windows Operating Systems Supported
- Microsoft Windows XP
Microsoft Windows Server 2003
Microsoft Windows XP x64
Microsoft Windows Server 2003 running Terminal Services
Microsoft Windows Server 2003 x64
Microsoft Windows Server 2003 x64 running Terminal Services
Microsoft Windows Vista
Microsoft Windows Vista x64
Microsoft Windows Server 2008
Microsoft Windows Server 2008 x64
Microsoft Windows Server 2008 running Terminal Services
Microsoft Windows Server 2008 x64 running Terminal Services
Microsoft Windows 7
Microsoft Windows 7 x64
Microsoft Windows Server 2008 R2
Microsoft Windows Server 2008 R2 running Terminal Services
- Apple Macintosh Operating Systems Supported
- Apple Mac OS X (10.5, 10.6, 10.7)
- Citrix MetaFrame
- Microsoft Windows Server 2003 running Terminal Services with Citrix Presentation Server 3.0, 4.0, 4.5
Microsoft Windows Server 2003 x64 running Terminal Services with Citrix Presentation Server 4.0 x64, 4.5 x64
Microsoft Windows Server 2003 and 2003 X64 Edition with Citrix XenApp 5.0
Microsoft Windows Server 2008 and 2008 X64 Edition with Citrix XenApp 5.0
- Linux Operating Systems Supported
- SUSE Linux Enterprise Server 10, 11
SUSE Linux Enterprise Desktop 10, 11
Red Flag Linux Desktop 6.0
Linpus Linux Desktop 9.6
openSUSE 11.2, 11.3, 11.4
Debian GNU/Linux 5.0, 6.0
Fedora 14
Mint 9, 10
Red Hat Enterprise Linux WS 4.0, 5.0, 6.0
Ubuntu 9.04 LTS, 10.04, 10.10
Ubuntu 11.04, 11.10, 12.04
PCLinuxOS 2010
- Novell Operating Systems Supported
- Novell NetWare 6.5 Open Enterprise Server
Novell NetWare 5.1(SP 6+), 6.0(SP 3+) with Novell Distributed Print Services (NDPS)
Novell Open Enterprise Server on SUSE Linux Enterprise Server
- UNIX Operating Systems Supported
- Sun Solaris SPARC 8, 9, 10
Sun Solaris x86 10
HP-UX 11.11, 11.23, 11.31
IBM AIX 5.2, 5.3, 6.1, 7.1
- Standard Ports
- USB 2.0 Specification Hi-Speed Certified (Type B)
Front USB 2.0 Specification Hi-Speed Certified port (Type A)
Ethernet 10/100/1000 BaseTX (RJ-45)
- Optional Local Ports
- Internal RS-232C serial
Internal 1284-B Bidirectional Parallel
- Optional Network Ports
- Internal MarkNet N8250 802.11b/g/n Wireless
- Fonts and Symbol Sets
- 3 of 9 scalable PCL 5e fonts in Narrow, Regular and Wide
158 scalable PostScript fonts
2 PCL bitmap fonts
39 scalable PPDS fonts
5 PPDS bitmap fonts
84 scalable PCL fonts
OCR-A, OCR-B scalable PCL 5e fonts
For more information, refer to the Technical Reference.
- Printer Languages (Standard)
- PCL 5c Emulation
PCL 6 Emulation
Personal Printer Data Stream (PPDS)
PostScript 3 Emulation
xHTML
PDF 1.6
Direct Image
Microsoft XPS (XML Paper Specification)
- Display
- 60 mm colour LCD display
- Energy Star Typical Electricity Consumption (TEC)
- 3.561 kilowatt-hours per week
- Size (mm - H x W x D)
- 455 x 435 x 400 mm
- Packaged Size (mm - H x W x D)
- 545 x 588 x 553 mm
- Packaged Weight (kg)
- 29.7 kg
- Size, Trays Extended (mm - H x W x D)
- not define mm
- Product Certifications
- Energy Star, Blue Angel (RAL-UZ-122), CAN/CSA-C22.2 60950-1, CSA E60825-1, ICES-003 Class B, BSMI Class B, VCCI Class B, US FDA, FCC Class B, UL 60950-1, EN/IEC 60320-1, CE Class B, CB IEC 60950-1, EN 60950-1, EN/IEC 61000-3, EN 55022 Class B, EN 55024, EN/IEC 60825-1, GS (TV), AR S (TV), SMA C-tick mark Class B, CCC Class B, CISPIR 22 Class B, MIC Mark, EK Mark
- Product Warranty
- 1-Year Onsite Service, Next Business Day
- Country of Origin
- China (PR)
- Harmonized Tariff Code
- 8443.31.0000
