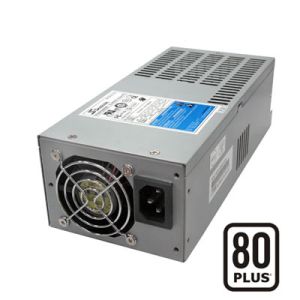

Seasonic SS-460H2U Active PFC 80+ 2U 460W Power Supply


  • Specification compliance: Intel EPS12V
  • Forward converter circuit
  • High efficiency and reliability for industrial level
  • Easy swap connector design
  • High reliability ball bearing fan
  • Low ripple & noise
  • Smart & Silent Fan Control (S2FC)
  • Zero minimum load on 3.3V rail
  • Short circuit protection on all outputs
  • Over voltage protection
  • Over power protection
  • 100% hi-pot test
  • 100% burn in, high temperature cycled on/off
  • PFC harmonics compliance: IEC1000-3-2 /EN61000-3-2 standards
  • L225 x W100 x H40mm (8.9” x 3.9” x 2.7”)
Fan type:
  • 38 x 38mm
  • Customized modular cables
Electrical Specifications:
  • Input frequency: 50 / 60 Hz
  • Inrush current, cold start: 100A max.
  • Hold up time, full load: 12ms. typical
  • Efficiency, 220-240VAC, full load: 83% typical
  • Efficiency, 100-120VAC, full load: 80% typical
  • Dielectric withstand, input to frame/ ground: 1800VAC, 1sec.
  • Dielectric withstand, input to output: 1800VAC, 1sec.
  • Line regulation: +/-1% typical
  • Load regulation: +/-5% typical
  • Cross regulation: +/-5% typical
  • Ripple / noise: 1%
  • MTBF, full [email protected]? amb. (Excluding the DC fan):>100K hours
  • Power Factor Correction: Active PFC 99% typical
  • Safety: CUL, TUV, CB, CCC, BSMI
  • EMC: CE, FCC, C-tick

No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 Year Return to Base
