All stock codes associated to this product
CP9020037AU(AX860I), CP-9020037-AU(AX860I), 843591018661

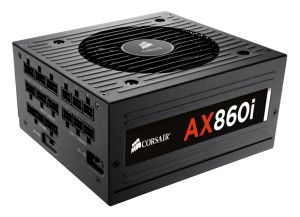

AX860i Digital ATX Power Supply 860 Watt 80 PLUS Platinum Certified Fully-Modular PSU
Corsair AXi Digital ATX PSU: complete digital control
The revolutionary AXi Series PSUs are the first desktop PC power supplies to use digital (DSP) control and Corsair Link to bring you an unprecedented level of monitoring and performance customization. The DSP in the AX860i makes on-the-fly adjustments for incredibly tight voltage regulation, 80 PLUS Platinum Efficiency, and clean, stable power.
Overview
Corsair AXi Digital ATX PSU: complete digital control
The revolutionary AXi Series PSUs are the first desktop PC power supplies to use digital (DSP) control and Corsair Link to bring you an unprecedented level of monitoring and performance customization. The DSP in the AX860i makes on-the-fly adjustments for incredibly tight voltage regulation, 80 PLUS Platinum Efficiency, and clean, stable power.

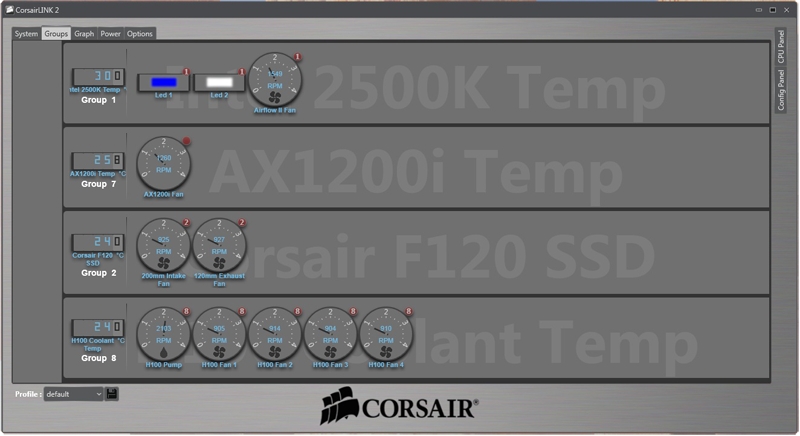

Real-time monitoring and control with Corsair Link
Put the AX860i under your control by connecting it directly to a USB header on your motherboard with the included cable, or to a Corsair Link Commander (available separately). Then, download the free Corsair Link Dashboard software for unrivaled power supply monitoring and control options.
Monitor power input and output, efficiency, fan speed, and internal temperature, directly from the Windows based application. Or, take it to the next level and set up and modify fan speed profiles, or even select from virtual single rail or multi-rail software modes, with selectable OCP points.
Stable and Reliable Power Delivery
DSP-controlled, real-time voltage regulation helps ensure that your valuable components receive clean, stable power.
Less Heat and Lower Operating Cost
AX860i's extreme efficiency earns it coveted 80 PLUS® Platinum certification. Less wasted power means minimal excess heat. This can reduce the strain on your other components, and it can save you money over the long run in the form of lower power bills.
Quiet Operation at low loads
Super-high efficiency has another benefit: silence. The thermally-controlled fan doesn't even spin at low loads. It's ideal if you're building a quiet PC or you just want to reduce the amount of ambient noise in your life.
Easy installation and cable routing, with better airflow
The fully modular cable set allows you to use only the cables you need, and the flat design makes cable routing much easier in tight spaces. You get a clean-looking system build with cables out of the airflow path for efficient space usage that's energy efficient as well.

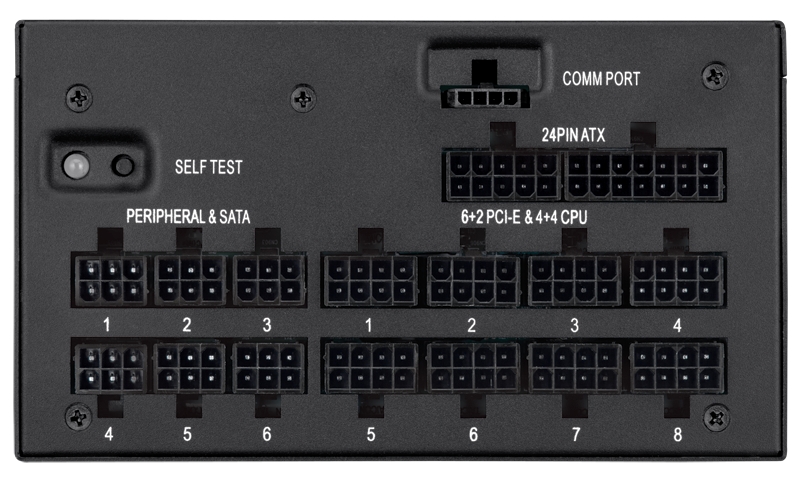

The fully modular layout allows you to use only the cables you need, and the Self Test button makes it easy to check the status of your PSU.
Features
An ultra-quiet, 140mm double ball-bearing fan delivers excellent airflow with exceptionally low noise levels by varying fan speed in response to temperature.
The AX860i is so efficient that the fan doesn't spin up until you're pushing your system hard. And, fan speed thresholds can be adjusted with Corsair Link.
Are you used to checking to see if the fan spins to verify if your power supply is working? No worries. AX860i has a self-test switch to verify proper functionality before you install.
Superior Components and Better Engineering for Excellent Performance and Protection
- High-quality capacitors provide uncompromised performance and reliability.
- Active Power Factor Correction (PFC) with PF value of 0.99
- Over-voltage, under-voltage, over-current, and short circuit protection provide maximum safety for your critical system components
- Engineered to meet maximum power output at a server-grade 50C temperature rating.
The AX860i provides a dedicated single +12V rail, with configurable virtual "single-rail" and "multi-rail" software modes
Contents and Specifications
Features
- Digital Signal Processor (DSP) for delivering extremely clean, efficient power with real-time adjustments
- Corsair Link Integration for monitoring and adjustment of performance, noise, and OCP settings
- Dedicated single +12V rail with user-configurable virtual "single rail" and "multi-rail" software modes
- An ultra-quiet, 140mm double ball-bearing fan delivers excellent airflow with exceptionally low noise levels by varying fan speed in response to temperature

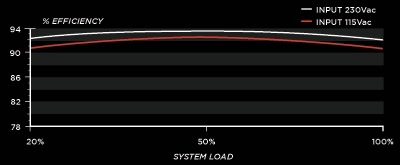

- 80 PLUS Platinum certified, delivering up to 92% energy efficiency under real-world load conditions
- Active Power Factor Correction (PFC) with PF value of 0.99
- Universal AC input from 90~264V
- Over-voltage, under-voltage, over-current, and short circuit protection provide maximum safety for your critical system components
- Engineered to meet maximum power output at a server-grade 50C temperature rating.
- Self-test switch to determine PSU functionality even before installation.
- High-quality capacitors provide uncompromised performance and reliability
- A seven year warranty and lifetime access to Corsair's legendary technical support and customer service
- Safety Approvals: cTUVus, CE, CB, FCC Class B, TV, CCC, C-tick
Package contents
- AX860i power supply
- Modular cable pack
- Accessory bag with mounting hardware, cable ties, and case badge
- Installation Guide
- Corsair Link Digital interface cable
- Corsair Link USB Dongle
Compatibility
- Conforms to ATX12V v2.31 and EPS 2.92 standards, and is backward compatible with the ATX12V 2.2 and ATX12V 2.01 standards
Specifications:
Warranty: Seven years
Dimension: 5.9"(W) x 3.4"(H) X 6.3"(L); 150mm(W) x 86mm(H) x 160mm(L)
Modular: Fully
Power 860: Watts
80 Plus: Platinum
ATX Connector: 1
EPS Connector: 2
PCI-E Connector: 6
4 Pin Peripheral Connector: 8
SATA Connector: 12
Floppy Connector: 2
MTBF: 100,000 hours
