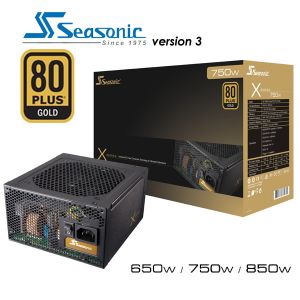

Seasonic X-Series 750W PSU 80Plus Gold (Version 3)


01

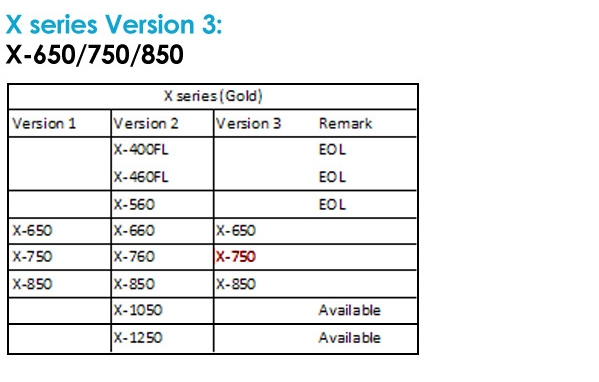

1. KM3(80+Gold): Model: X-650/X-750/X-850

Main difference (to compare with previous model):

  • Tight Voltage Regulation: decrease from 3%to 2%
  • Warranty: increase from 5 years to 7 years
  • Wire: use black flat module wire
  • More reliable performanc

02

Seasonic Patented DC Connector Panel with Integrated Voltage Regulation Module

Seasonic’s Patented Fully Modular Design while minimizing voltage drops and impedance, it greatly maximizes efficiency and cooling to enhance overall performance and reliability. * Patent #: US8.040.686, TW381825, CN1552150, JP3171420.  Patent Pending: US, DE

3

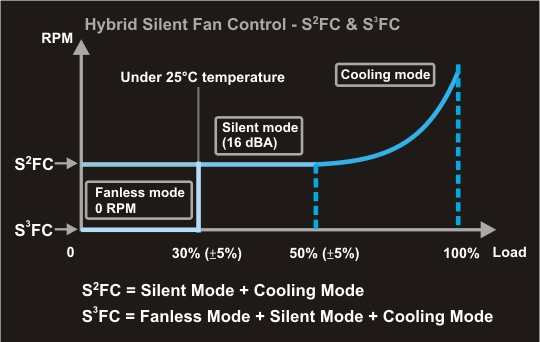

Seasonic Hybrid Silent Fan Control – S2FC and S3FC

The industry first, advanced three-phased thermal control balances between silence and cooling.

The Hybrid Silent Fan Control provides three operational stages: Fanless, Silent, and Cooling Mode. In addition, there is a switch provided to allow for manual selection between the Seasonic S2FC (fan control without Fanless Mode) and the S3FC (fan control including Fanless Mode).*Patent #: TW410250, CN808637, CN1980304. Patent Pending: US, JP

4

03

Sanyo-Denki San Ace Silent Fan

The world-renowned Sanyo Denki Ball bearing fans are made of the highest quality components to ensure maximum quality and performance. The use of spoon shaped high-density plastic fan blades with smoothed leading edges, strict tolerance ball bearings and precision copper axel are just some features to ensure ultra-low noise performance and quality. In addition, the fan uses 3 balancing points, instead of the industry standard of 2 points, to ensure perfect balance and rotation. The Sanyo Denki fan is a perfect match to the class leading Sea Sonic Hybrid Silent Fan control for the absolute top performance of the industry.

Special Features:

  • 80PLUS Gold Certified Super High Efficiency
  • Full Modular Cabling Design
  • Patented DC Connector Module with Integrated VRM [Voltage Regulator Module]
  • DC to DC Converter Design
  • Seasonic Hybrid Silent Fan Control
  • Sanyo Denki San Ace Silent Fan
  • Conductive Polymer Aluminum Solid Capacitors
  • Highly Reliable 105 Japanese Brand Capacitors
  • Tight Voltage Regulation [1%]
  • Active Power Factor Correction [99% PF Typical]
  • High +12V Output
  • High Current Gold Plated Terminals
  • Dual Sided PCB Layout
  • Ultra Ventilation [Honeycomb Structure]
  • Multi-GPU Technologies Supported
  • All-in-One DC Cabling Design
  • Easy Swap Connector
  • Universal AC Input [Full Range]
  • 7 Years Warranty

Product Information:

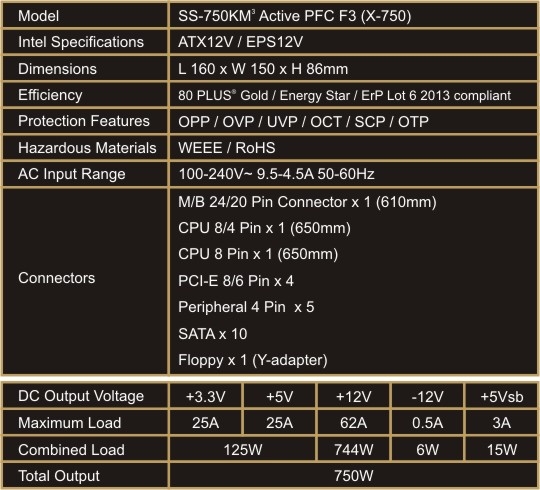

AC input & DC output voltages / Wire Configuration

Model: X-750 (SS-750KM3 Active PFC F3)

05
06
08

No additional files, specification sheets, guides or documentation found for product.
