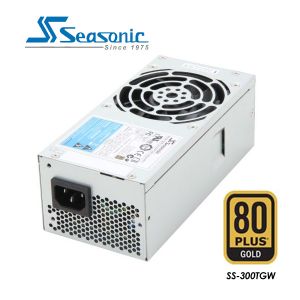

Seasonic 300W SS-300TGW True Power - TFX12V v2.31, Super Low Noise Fan Control, 80 PLUS Gold Certified

IMG 1 of 1
No Longer Available
Part Number:
229008
(?) Brand:
Seasonic
Manuf No:
SS-300TGW
SS300TGW
Shipping Weight:
2.5 KG (Includes product packaging)
Estimate Shipping
Date Added:
14/10/2013
Details Files Images & Video
All stock codes associated to this product
SS300TGW, SS-300TGW, PSSTFX300WGOLD, PSS-TFX300WGOLD

Seasonic SS-300TGW TFX 300w True Power 80plus Gold Certified PSU



SeaSonic SS-300TGW

Features:

  • TFX12V (v2.31)
  • Maximum Power: 300W
  • Support the latest Intel & AMD Socket
  • DC to DC converter design
  • High efficiency and reliability
  • Low ripple & noise
  • Super low noise fan control
  • Short circuit protection on all outputs
  • Over voltage protection
  • Over power protection
  • 100% hi-pot test
  • 100% burn in, high temperature cycled on/off

Specifications:

  • Efficiency: > 87%
  • Energy-Efficient: 80 PLUS GOLD Certified
  • Over Voltage Protection: Yes
  • Input Frequency Range: 47 - 63 Hz
  • Output: +3.3V@10A, +5V@14A, +12V1@18A, +12V2@18A, [email protected], +5VSB@2A
  • Ripple/noise: 1%
  • MTBF: >100,000 Hours
  • Approvals: CUL, TUV, CB, CE, FCC, C-tick
  • Dimensions: 175mm x 85mm x 63.5mm
  • Connectors: Standard Cabling


No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 year return to base

Full manufacturers warranty details are available at the manufacturers web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
