All stock codes associated to this product
ML06B, CASTML06B, CAST-ML06B, 4710007221013
ML06
INTRODUCTION

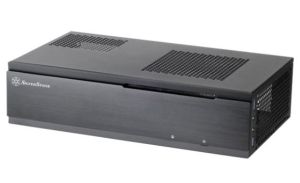

Continuing with the popular slim form factor HTPC, the Milo ML06 HTPC case is the smallest in the Milo series to-date and yet still able to fit modern day components. Although measuring only 7 liters in size (half the size of Micro-ATX based ML03), it can accommodate Mini-ITX motherboard, SFX power supply and install up to four 2.5” hard drives. An innovative multipurpose 4-in-1 bracket also allows installation of a slim optical drive, a 3.5” hard drive, two 2.5” drives, or a 120mm fan depending on user’s requirement. Complementing a superbly compact design is a beautiful aluminum front panel finished with hairline brush pattern that seamlessly integrates into home theater environments, making ML06 the best petite HTPC case on the market.
SPECIAL FEATURES
- Super small at only 7 liters
- Aluminum front panel with premium styling
- Support up to two 80mm fans
- Multipurpose 4-in-1 bracket
- Support Mini-ITX motherboard and SFX power supply
- Support four 2.5 HDD/SSD
Specifications:
|
Model No.
|
SST-ML06B (black) |
| -- |
| -- |
| -- |
|
Material
|
7mm aluminum front panel, 0.8mm steel body |
|
Motherboard
|
Mini-ITX |
|
Multimedia
|
-- |
|
Drive Bay
|
External |
9.5mm/12.7mm slim slot-loading optical drive x 1 (replaceable with 3.5 HDD x 1 or 2.5 HDD x 2 or 120mm fan x 1) |
| None |
| Internal |
2.5 x 4 |
|
Cooling System
|
Front |
-- |
| Rear |
-- |
| Side |
Right: 2 x 80mm fan slot |
| Top |
120mm fan slot / oversized PSU vents |
| Bottom |
-- |
| Internal |
-- |
|
Expansion Slot
|
1 |
|
Front I/O Port
|
USB 3.0 x 2
audio x 1
MIC x 1
|
|
Power Supply
|
1 x Optional standard SFX |
|
Operating system support
|
-- |
|
Expansion Card
|
1x low profile, width restriction-2.95" |
|
Limitation of CPU cooler
|
37~70mm |
|
Limitation of PSU
|
140mm |
|
Net Weight
|
2.4kg |
|
Dimension
|

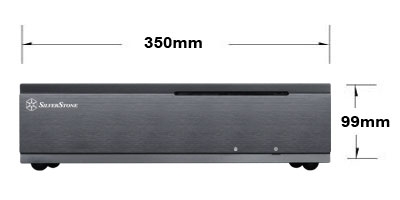

350mm (W) x 99 mm (H) x 205 mm (D), 7 liters |
|
Extra
|
support Kensington lock |
|
Support VESA Mount
|
-- |
