Ergotron 60-609-216 StyleView Vertical Lift W/ Keyboard and

Perfect for space-constrained patient exam rooms, the low-profile vertical lift provides 9" (23 cm) of smooth vertical adjustment and folds into a slim, compact unit when not in use.
The slide-out, negative tilt keyboard enhances user comfort, while the monitor and keyboard pan capability promote patient-caregiver interaction. A unique cable management system conceals and organizes cords and makes cleaning a snap!

Benefits

Side-to-side pan of keyboard and display promote patient caregiver interaction while access data
Slide-out Keyboard Tray can extend out an extra 5" (125 mm) for comfortable data entry
With the keyboard folded up, total system depth is as little as 4.5" (114 mm)
Ergonomic back-tilt keyboard tray with left or right mouse tray ensures wrists remain in a neutral position during data entry
Patented counterbalance system provides smooth adjustment while maintaining touch-screen stability
9" (229 mm) vertical adjustment enhances ergonomics for multiple users
Steel construction for long-lasting durability
Right- or left-side cable management system conceals and organizes cords and makes cleaning a snap!

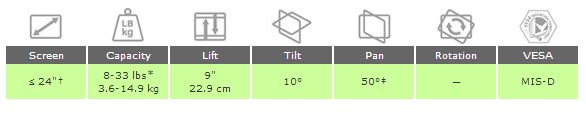

Specifications:

Part Number: 60-609-216 (formerly 60-594-216)
Description: StyleView Vertical Lift, Patient Room version (white)
Includes mouse pad, wrist rest, mouse pouch, scanner holder

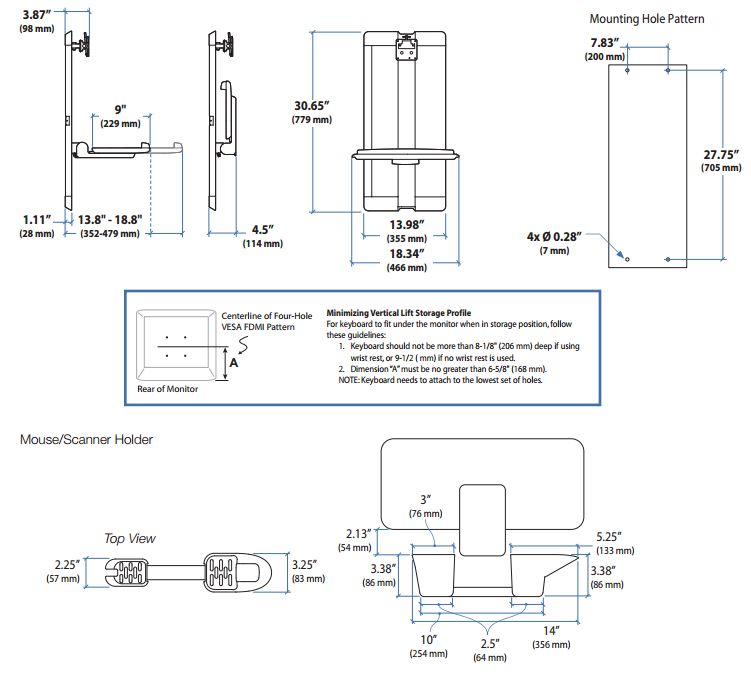

Larger display sizes may inhibit the keyboard tray folding flat in storage position. See Dimensional Illustrations for details
Weight Capacity: Listed weight capacity represents total load, including both the monitor and contents of keyboard tray. Maximum monitor weight = 25 lbs (11.3 kg); monitor thickness greater than 3" (7.6 cm) may decrease capacity
Mounting Standards: VESA FDMI MIS-D, 100/75 (hole pattern: 100 x 100 mm & 75 x 75 mm)
Monitor pans left/right up to 50° (varies per size of monitor)
Fold-down keyboard with built-in mouse pad surface
Keyboard tray extends out up to 5" (127 mm) inches when in use
Keyboard tray pans left/right up to 120°
Back-tilt keyboard tray adjustable (0 to -10 degrees)
Scanner and mouse holder integrated into the keyboard tray
Integrated cable management system can be configured on either side
Easy-to-clean exterior
Shipping Dimensions: 39.5" x 16" x 10.75" (1000 x 406 x 273 mm)
Shipping Weight: 35.5 lbs (16.1 kg)
Warranty: Five (5) years

No additional files, specification sheets, guides or documentation found for product.

Warranty: 5 year return to base

Full manufacturers warranty details are available at the manufacturers web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
