C11CA93031 | Epson PP-100AP DiscProducer - 100 disk Capacity, up to 95

The reliable Discproducer print-only model, Autoprinter, is ideal for use with high-speed duplication systems. It has all the features you need to print up to 100 customized discs at a time at a fast print speed of 95 discs per hour. And with its vibrant six-colour inkjet printing, precision AcuGrip™ robotic arm and easy-to-use software you get the high quality results you're looking for every time.





Best–in–class printing
The Epson Discproducer features a built–in Epson inkjet printer with Epson’s patented MicroPiezo technology. Using six colours instead of the common four, it delivers the highest print quality available in its class for crisp, clear text and vibrant graphics at up to 1440 x 1440 dpi resolution. In addition, ink level status is shown with a LED readout for each colour to prevent printing without ink.

Best–in–class Cost per Disc
Thanks to Epson's individual inks system, the cost of each produced media is low as you only need to replace the colour used and, depending on the print image, you can produce over 1,000 discs from one set of cartridges. And when a cartridge becomes empty, the PP-100AP automatically stops printing until it’s replaced to avoid miss-prints.
The Epson Discproducer also provides you with more affordable disc duplication and printing. Cost per Disc calculations are based on Epson's Internal Testing with a set of new ink cartridges.





 AcuGrip™ Built to perform

Unlike other disc publishers, the Epson Discproducer features patented AcuGrip picking technology which ensures that only one disc is placed in the drive or printer even if two are stuck together. The arm has a guide that places it in the center of the disc. Then three independently powered fingers extend to separate the top disc from the remaining discs. Finally the peel off lever (or kicker lever) lifts the top disc for transportation. If more than one disc is lifted, they will be put in the reject stacker or the system will indicate an error has occurred. This technology not only increases the life of the product, but helps protect against the interruption of unattended production runs due to mechanical blockage.



MicroPiezo® print heads are at the heart of every Epson ink jet printer. These print heads spray ink through microscopic nozzles, or holes on the print head. Each of these nozzles has tiny, piezo electric elements, which vibrate tens of thousands of times per second, allowing the nozzle to fire ink droplets onto the disc at extremely rapid rates. No heat is involved in the printing. This ensures greater accuracy when firing ink droplets precisely onto the disc. And, it gives the printer greater control over ink droplet size. MicroPiezo technology ensures uniform, stable ink droplets with virtually no satellites or misting all of which means you get the high quality results you’d expect from Epson.







When you build industrial robots, you learn about quality, reliability and precision engineering. And Epson is a world-leader in the design, development and manufacture of such robots as for medical technology and airbag testing. That’s why our other products are so reliable – because they are built on the platform of knowledge and experience gained from the robotics environment. The Epson Discproducer™ is a perfect example. Its compact design, coupled with its dust-proof body and a minimum of moving parts, delivers precision performance, superb reliability and amazingly low running costs.

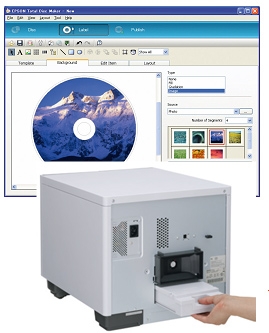

The Epson Discproducer™ PP-100AP is just as easy to operate as any office printer. The use of the software and hardware is intuitive, leaving you free to concentrate on your day-to-day work.
With the Total Disc Maker software, it is easy to create your own printed image for CD/DVD. Whether you want to use photographs, graphics, text or pre-existing templates, there are virtually no restrictions on your creativity.



In the final step, you can select the ideal
quality and speed setting for your project:



Quality: 50 media per hour
Speed: 75 media per hour
High-speed: 95 media per hour
The maintenance cartridge is very easy to change.

































PRODUCT TYPE	Disc Publisher Autoprinter
PRODUCT NAME	Epson DiscProducer PP-100AP
PRODUCT CODE	C11CA93031
MAIN UNIT
PRINT SPEED	CD	50 discs/hour, (level 1) 75 discs/hour, (level 2) 95 discs/hour, (level 3)
WRITING SPEED	CD	Maximum 40 x
	DVD-R, DVD+R	Maximum 12 x
	DVD-R DL, DVD+R DL	Maximum 8 x
POWER CONSUMPTION	50 W (Operation), 30 W (Standby)
ELECTRICAL	Rated Voltage	AC100V to AC240V
	Frequency	50hz to 60Hz
EXTERNAL DIMENSIONS	377mm (w) x 465mm (d) x 348mm (h) (Excluding the AC cable & USB cable)
WEIGHT	Approximately 22Kg (Including stackers and ink cartridges, excluding the AC cable and discs)
ENVIRONMENTAL CHARACTERISTICS	Temperature and Relative Humidity	10 C to 35 C, 20% to 80% (no condensation)
STANDARDS	Safety: AS/NZS CISPR 22 Class A
EXPECTED LIFETIMES	Ink Pad Life	Approx. 30,000 printable discs **
HARDWARE
PRINTER MODE	Print Head	Black ink 180 Nozzles, Colour ink 180 Nozzles x 5
	Print Direction	Bidirectional or unidirectional
	Print Resolution	Level1 (High-resolution): 1440 dpi 1440 dpi Level2: 1440 dpi 720 dpi Level3 (High-speed): 720 dpi 720 dpi [dpi: dots per 25.4 mm (1 inch)]
PRINT AREA	Standard setting for outside diameter	116 mm
	Outside diameter setting range	70-119.4 mm
	Standard setting for inside diameter	45 mm
	Inside diameter setting range	18-50 mm
	Guaranteed print area	45-116 mm
	Printable area of EPSON-specified discs	25-116.5 mm (0.98 to 4.59 inches)
STACKER CAPACITY	Stacker 1,2,3	50 discs (It's possible to print 100 discs without stopping by using both stackers 1 and 2.)
	Stacker 4	5 discs
INTERFACE	1 x USB 2.0 High speed Only
INK CARTRIDGE	Ink Type	Dye ink
	Colours	Yellow, Magenta, Cyan, Light Cyan, Light Magenta, Black
	Yield ***	1,000 discs or more (diameter 45 - 116 mm, 16.7% colour sharing, continuous printing, mode setting: Level 1)
	Cost per disc	Cost per Disc calculations are based on Epson's Internal testing. For further details please see Disc yields page.
SOFTWARE (WINDOWS)
	Total Disc Maker	Installed on the user's PC to publish discs.
	Total Disc Monitor	Displays the status of JOBs and devices.
	Total Disc Setup	Installed on user's PC to set-up PP-100AP.
	TD Bridge system	Incorporation tool to use with other applications, supplied free via the website on product registration.
LABEL EDITING	Template	Up to 58 templates
	Background	Full-filled, gradation, graphic, including EPSON original background files (up to 74 files)
	Printing items
	Text	strings, automatic inserted strings (published date, created date, counter, number of sheets, number of pages), writing face gearing strings (date size, volume label/title), arch style strings
	Graphic	BMP, JPEG, TIFF, PNG, EPSON original graphic files (up to 81), trimming, transmit
	Thumbnail	tile, circle, gearing with writing surface
	Folder list	Create folder list automatically
	Diagram	Straight line, rectangle, oval
	Export	BMP, JPEG, TIFF, PNG
PUBLISHING		Publishing modes (number of copies)
	Batch mode:	1- 100, 3 stackers used
	Standard mode:	1- 50, 2 stackers used
	External output mode:	1- 5 CDs/DVDs, 2 stackers & pick-up tray used
STATUS MONITOR	Job monitoring	Job status, Canceling, Pausing, Restarting
	Device monitoring	Ink remaining, Drive status, Printing status, Stacker status, Media remaining
SOFTWARE (MAC)
	Total Disc Maker	Installed on the user's PC to publish discs.
	Total Disc Utility	Displays the status of JOBs and devices and change the publish settings. Click here to register.
LABEL EDITING	Printing items
	Text	strings, automatic inserted strings (published date, created date, counter, number of sheets, number of pages), writing face gearing strings (date size, volume label/title)
	Graphic	BMP, JPEG, TIFF, PNG, PDF, AI (For PDF and AI files are available only they can be previewed from Finder.)
	Barcode	JJAN8/EAN8, JAN13/EAN13,  ITF,  CODE128,  PDF417.  QR(model 2), CODE39,  NW-7
	Export	BMP, JPEG, TIFF, PNG
PUBLISHING		Publishing modes (number of copies)
	Standard mode:	1- 100
	Low volume mode:	1-20 (Stacker 3 is used in this mode)
	Data comparing	Data comparing is selectable (audio CD not supported)
	Label type	Epson specified CD/DVD Label CD/DVD Premium Label CD/DVD Label
	Number of discs	1 disc to 100 discs (depends on publishing mode)
STATUS MONITOR (Total Disc Utility)	Job monitoring	Job status, Canceling, Pausing, Restarting
	Device monitoring	Ink remaining, Drive status, Printing status, Stacker status, Media remaining
REQUIRED SYSTEM
REQUIRED PC ENVIRONMENT	Operating System	Windows 7, Vista SP1 or later; Windows XP SP2 or later, Windows 2000 SP4 or later , Server 2008 R2, Server 2008 SP2 or later; and Server 2003/2003 R2 SP2 or later (Windows XP and Server 2003/2003 R2 32 bit only)
	CPU	Intel Pentium 4 Processor 1.4GHz or higher (2.0GHz or higher for Server 2008)
	Memory	2Gb or larger (Vista: 1Gb or larger)
	HDD	30 Gb available space or larger, (50Gb available space Windows Server 2008) 7,200 rpm or more
	Graphics environment	XGA or more, 65,536 colors or more
	Sound environment	A sound device and a supported driver must be installed for music media.
	No supported chipset list (ATI)	ATI's Southbridge IXP (SB)460 or earlier chipsets not supported
	Interface	Universal Serial Bus Specifications Revision 2.0, Transmission speed: 480 Mbps (High-speed Device)
REQUIRED MAC ENVIRONMENT	Operating System	Mac OS 10.7.3 Lion, Mac OS 10.6.8 Snow Leopard
	CPU	Mac OS X 10.6.8 Snow Leopard : Intel Core Duo 1.83GHz or more, Mac OS X 10.7.3 Lion : Intel 64bit CPU
	Memory	Mac OS X 10.6.8 Snow Leopard : 1GB or larger, Mac OS X 10.7.3 Lion : 2GB or larger
	HDD	25GB available space or larger, HDD rotation speed: 7,200 rpm or more
	Graphics environment	Graphics environment: XGA or more
	Interface	Universal Serial Bus Specifications Revision 2.0, Transmission speed: 480 Mbps (High-speed Device)
SUPPORTED MEDIA
SIZE	Outside diameter	120 mm 0.3 mm
	Inside diameter	15 mm + 0.1/-0 mm
	Thickness	1.2 mm + 0.3/-0.1 mm
FORM		Supports standard 12 cm (4.7 inch) discs Does not support specially-shaped disks.
TYPE	CD-R, DVD-R, DVD+R, DVD-R DL, DVD+R DL
LABEL TYPE	Epson Specified CD/DVD Label CD/DVD Premium Label CD/DVD Label
SURFACE	Inkjet printable (Note: As for printable glossy discs, only Epson recommended discs are supported)
CONSUMABLES
PRODUCT	PRODUCT NAME	PRODUCT CODE
Ink cartridge cyan	PJIC1(C)	C13S020447
Ink cartridge light cyan	PJIC2(LC)	C13S020448
Ink cartridge light magenta	PJIC3(LM)	C13S020449
Ink cartridge magenta	PJIC4(M)	C13S020450
Ink cartridge yellow	PJIC5(Y)	C13S020451
Ink cartridge black	PJIC6(K)	C13S020452
