All stock codes associated to this product
CA1B600F1WN00, CA-1B6-00F1WN-00
Core V71
CA-1B6-00F1WN-00
Design
Features

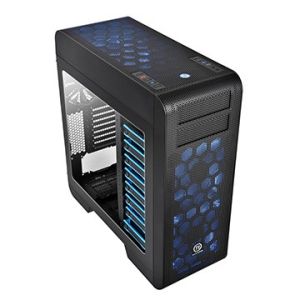

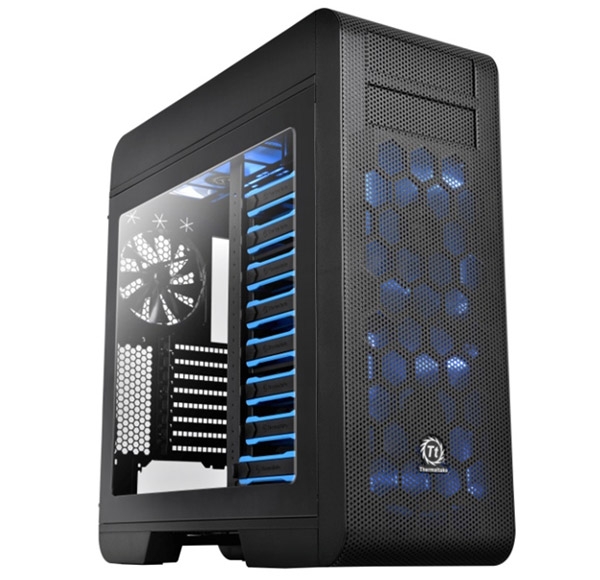

Thermaltake Core V71 full-tower chassis
Experience the epic of chassis design! Thermaltake introduces a new of its kind concept for more versatility and adaptability to any configuration. The Core V71 full-tower E-ATX case gives PC enthusiast flexible installation and keeps the system cool. Users can modify for superior liquid cooling or superb airflow through seamless operation. This new chassis is the ultimate powerhouse suitable for any type of PC enthusiast – no matter liquid cooling or extreme airflow.
Enthusiast Design

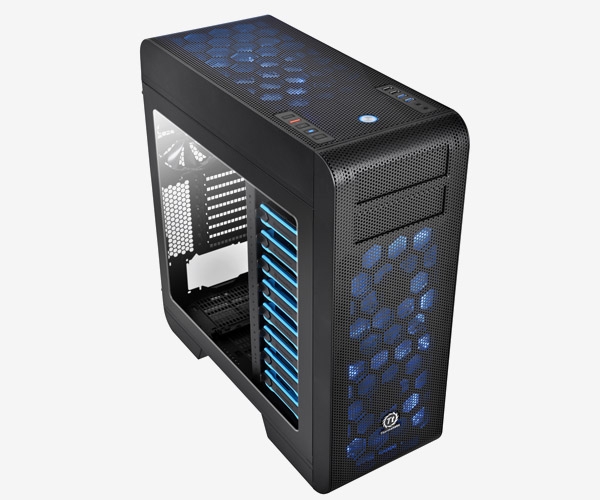

Subtle curves, bold textures and clean lines - Among many award winning case designs from Thermaltake. Core V71 keeps it to include enthusiast level features while keeping the design simple. The massive mesh design maintains a constant stream of fresh air inside the case while keeping the hot air out. With integration of fan controller and LED indicator, offering a perfect complement outside of the chassis.
Fully Modular Concept

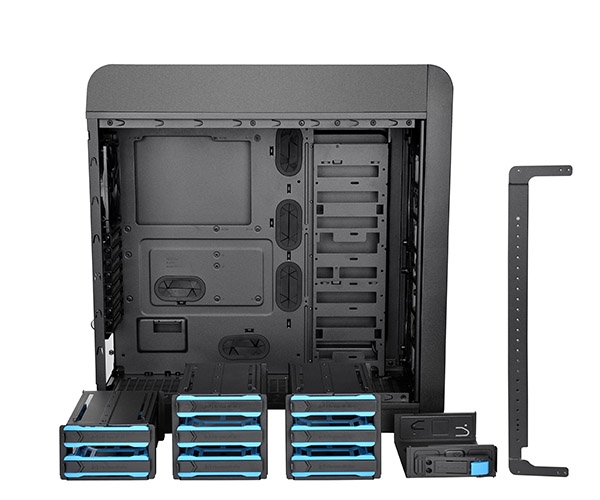

A highly customizable 5.25” & 3.5” drive bay feature enables users to freely interchange the 3.5” hard-drive cages to suit one’s need and removing the 5.25” & 3.5” drive bays to gain maximum interior space for advance cooling performance or liquid system build.
Tool-free Installation

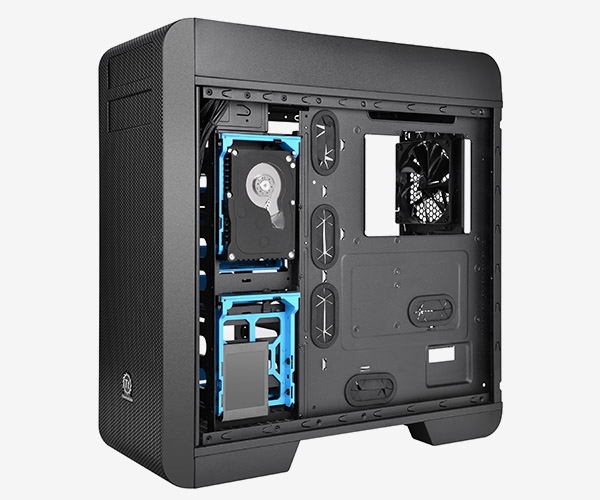

Exclusive back tray design allows user to assemble and expand easily and fast when all the drive cages have been removed. Time saving screwless assembly with 5.25” & 3.5” tool-free drive bay design minimized the hassles of installing ODD and HDD devices for convenience and ease of accessibility
Supreme Air Cooling System

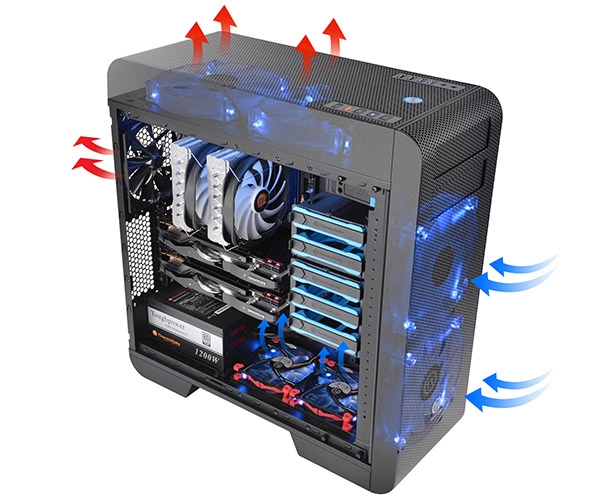

Core V71 is build with it fundamental airflow optimized design. Standard equipped with triple 200mm LED fans and a 140mm fan. It is the first in market that has the ability to house 4x 200mm fans along with three more 120mm fans by achieving unrivalled airflow in your chassis.
Extensive liquid cooling support

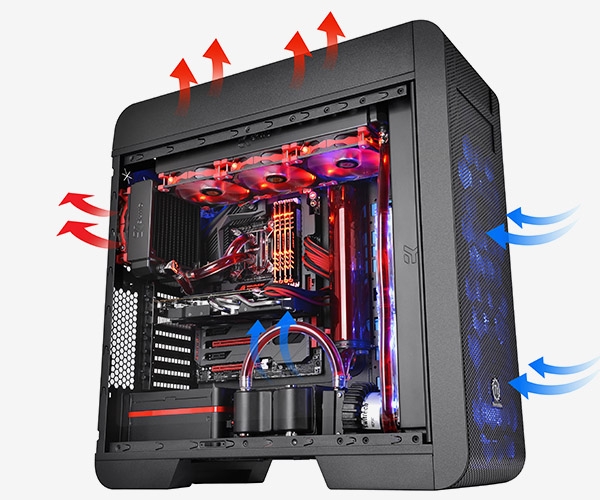

Core V71 pushes the envelope and utilize high-end water cooling solution that feature with front 360/420mm, top 360/420mm and bottom 120/240mm radiators support for extreme performance.

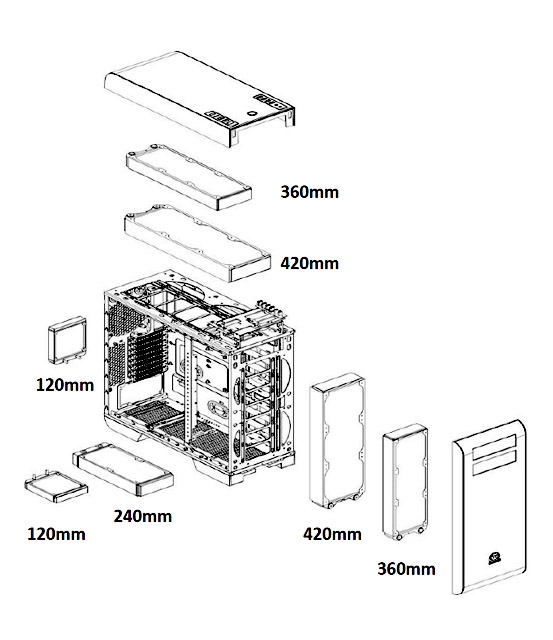

Core V71 Radiator Supporting List
| Radiator Compatibility |
| |
120mm |
140mm |
240mm |
280mm |
360mm |
420mm |
| Front |
* |
* |
* |
* |
* |
* |
| Top |
* |
* |
* |
* |
* |
* |
| Rear |
* |
|
|
|
|
|
| Bottom |
* |
|
* |
|
|
|
|
| Water 3.0 Compatibility List |
| |
Performer |
Pro |
Extreme |
| Front |
* |
* |
* |
| Top |
* |
* |
* |
| Rear |
* |
* |
|
| Bottom |
* |
* |
* |
|

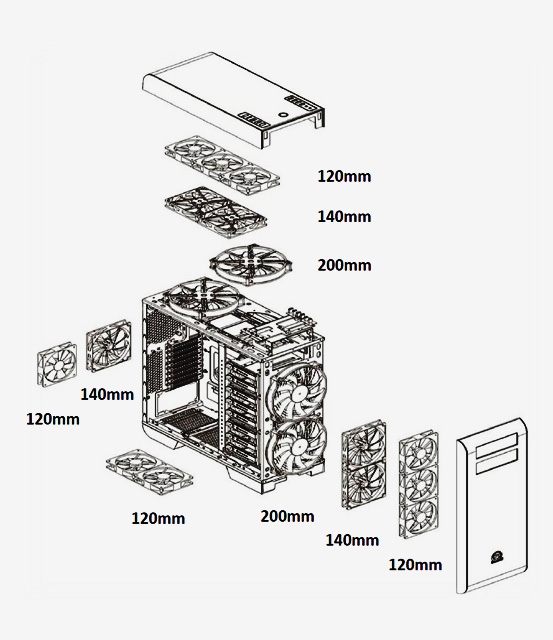

Core V71 Fan
Supporting List
| Fan Compatibility List |
| |
120mm |
140mm |
200mm |
| Front |
3 |
2 |
2 |
| Top |
3 |
2 |
2 |
| Rear |
1 |
1 |
- |
| Bottom |
2 |
- |
- |
|
| Thermaltake Compatible Fan |
| PURE FAN Series |
* |
|
* |
| LUNA FAN Series |
* |
|
|
|
Core V71 Fan
Supporting List
| Fan Compatibility List |
| |
120mm |
140mm |
200mm |
| Front |
3 |
2 |
2 |
| Top |
3 |
2 |
2 |
| Rear |
1 |
1 |
- |
| Bottom |
2 |
- |
- |
|
| Thermaltake Compatible Fan |
| PURE FAN Series |
* |
|
* |
| LUNA FAN Series |
* |
|
|
|
Specifications
| Model |
Core V71 |
| P/N |
CA-1B6-00F1WN-00 |
| Case Type |
Full Tower |
| Dimension (H x W x D) |
583 x 230 x 560 mm
(23 x 9.1 x 22 inch)
|
| Net Weight |
13.2 kg
|
| Side Panel |
Transparent Window |
| Color |
Exterior & Interior : Black |
| Material |
SPCC |
| Cooling System |
Front (intake) :
200 x 200 x 30 mm Blue LED fan (600~800rpm, 13~15dBA) x 2
Rear (exhaust) :
140 x 140 x 25 mm Turbo fan (1000rpm, 16dBA)
Top (exhaust) :
200 x 200 x 30 mm Blue LED fan (600~800rpm, 13~15dBA)
|
| Drive Bays |
-Accessible : 2 x 5.25
-Hidden : 8 x 3.5 or 8 x 2.5
|
| Expansion Slots |
8 |
| Motherboards |
9.6 x 9.6 (Micro ATX), 12 x 9.6 (ATX), 12 x 13 (Extend ATX) |
| I/O Port |
USB 3.0 x 2,USB 2.0 x 2, HD Audio x 1 |
| PSU |
Standard PS2 PSU (optional) |
| LCS Upgradable |
Supports 1/23/81/4 water tube |
| Fan Support |
Front:
1 x 120mm or 2 x 120mm or 3 x 120mm
1 x 140mm or 2 x 140mm
1 x 200mm or 2 x 200mm
Top:
1 x 120mm or 2 x 120mm or 3 x 120mm
1 x 140mm or 2 x 140mm
1 x 200mm or 2 x 200mm
Rear:
1 x 120mm or 1 x 140mm
Bottom:
1 x 120mm or 2 x 120mm
|
| Radiator Support |
Front:
1 x 120mm or 1 x 240mm or 1 x 360mm
1 x 140mm or 1 x 280mm or 1 x 420mm
Top:
1 x 120mm or 1 x 240mm or 1 x 360mm
1 x 140mm or 1 x 280mm or 1 x 420mm
Rear:
1 x 120mm
Bottom:
1 x 120mm or 1 x 240mm
|
| Other |
CPU cooler height limitation: 185mm
VGA length limitation: 310mm(with HDD rack)
400mm(without HDD rack) |
