VW24ATLR
Overview
ECO-efficiency Monitor With Built-in-Human Sensor
- Exclusive QuickFit function provides real size photo grid formats on the operating windows as a guide to accurately view and edit photos in real size on the screen.
- 100,000,000:1 ASUS Smart Contrast Ratio delivers the darkest blacks and brightest whites, delivering lifelike images
- Built-in Human Sensor for power saving and Information Security
- Ergonomic design for tilt, pivot, swivel and height adjustments ensure a comfortable viewing experience
True-to-life Pictures Powered by LED
Energy Saving and Information Security with Built-in Human Sensor
The human sensor feature provides convenience with energy savings* and information security by ensuring that the monitor conserves power when it is not in use. The sensor prompts the monitor to switch to power saving mode when it detects the user is away from the monitor, and then resume normal operation when the user returns.
When sensor is on, energy saving is up to 98%. (Comparing to monitors without human sensor equipped.)
100,000,000:1 ASUS Smart Contrast Ratio
Dynamically enhances the displays contrast by adjusting the luminance of the backlight to achieve the darkest black and brightest white delivering lifelike images.
Full HD 1080p for High-resolution Digital Content Display
Supporting Formats:
- 16:9 wide screen with 1920 x 1080 resolution is optimized for Full HD1080p vision and enables borderless full-screen video display.
- Pristine and stunning image clarity.
- Great for both video games and HD DVD movies playback.

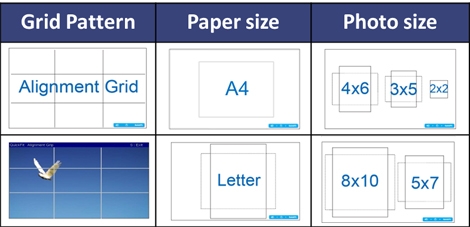

QuickFit Virtual Scale Function (patent-pending)
What you see is what you get. Allowing users to preview photos on screen in their actual sizes prior to printing. It can activated via a hotkey on monitor and used as a guide to accurately view and edit photos.
Supporting Formats:
- Photo: 8x10, 5x7, 4x6, 3x5, 2x2
- Grid: Alignment, Document

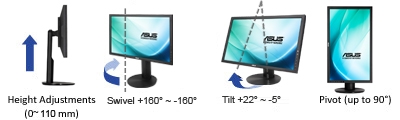

Versatile Comfort with Ergonomic Design
The ergonomically-designed VW24ATLR Monitor comes with swivel, tilt, pivot, and height adjustments for ideal viewing position.
Specifications
- Display
Panel Size: Wide Screen 24.0"(61.0cm) 16:9
Color Saturation : 72%(NTSC)
Panel Type : TN
True Resolution : 1920x1080
Full HD 1080P : Yes
Pixel Pitch : 0.2715mm
Brightness(Max) : 300 cd/
Contrast Ratio (Max) : 1000:1
ASUS Smart Contrast Ratio (ASCR) : 100000000:1
Viewing Angle (CR10) : 170(H)/160(V)
Response Time : 5ms
Display Colors : 16.7M
- Video Feature
SPLENDID Video Intelligence Technology
SPLENDID Video Preset Modes : 6 Modes (sRGB Mode/Scenery Mode/Theater Mode/Standard Mode/Night View Mode/Game Mode)
QuickFit (modes) : Yes (Letter/A4/Alignment Grid/Photo Modes)
HDCP support
- Audio Features
Stereo Speakers : 1W x 2 Stereo RMS
- Convenient Hotkey
SPLENDID Video Preset Mode Selection
Auto. Adjustment
Brightness Adjustment
QuickFit
- I/O Ports
Signal Input : D-Sub, DVI-D
PC Audio Input : 3.5mm Mini-Jack
- Signal Frequency
Analog Signal Frequency : 30~80KHz(H) / 50~76Hz(V)
Digital Signal Frequency : 30~80KHz(H) / 50~76Hz(V)
- Power Consumption
Power Consumption(Typical):<23.2W*
Power Saving Mode:<0.5W
Power Off Mode<0.5W
Voltage:100-240V,50/ 60Hz
- Mechanical Design
Swivel : Yes
Pivot : Yes
Height Adjustment : Yes
VESA Wall Mounting : 100x100mm
- Security
Kensington lock
- Dimensions
Phys. Dimension with Stand(WxHxD): 568.4 x 378.8 x 224.8mm
Phys. Dimension w/o Stand(WxHxD): 568.4 x 346.8 x 61.5 mm (For VESA Wall Mount)
Box Dimension (WxHxD): 690 x 423 x 203 mm
- Weight
Net Weight (Esti.):5.7kg
Gross Weight (Esti.):8.5kg
- Accessories
DVI cable
VGA cable
Audio cable
Power cord
Quick start guide
Warranty Card
- Regulation Approval
BSMI, CB, CCC, CE, C-Tick, ErP, FCC, J-MOSS, RoHS, UL/cUL, VCCI, WEEE, WHQL (Windows 8, Windows 7), Green ASUS
- Note
Built-in Human Sensor
*Based on Energy Star 6.0 standard
