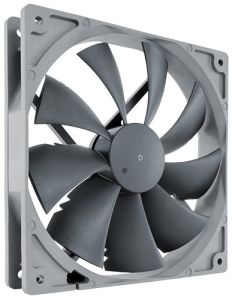

NF-P14S-REDUX-1500-PWM | Noctua NF-P14S Redux Edition PWM Cooling Fan - 140x140x25mm



Now available in a square frame version called NF-P14s (s for square frame) that lends itself to use in case and radiator cooling, the classic NF-P14 is a long-standing favourite among enthusiast users around the world and helped to found Noctuas reputation as a top-tier manufacturer of premium quality quiet cooling components. The new redux edition reissues this award-winning model in a streamlined, accessibly priced package that has been reduced to the essential core: the NF-P14 premium fan. Its industry grade SSO bearing, over 150.000 hours MTBF rating and full 6 years manufacturers warranty make the NF-P14 redux a proven premium choice that provides trusted Noctua quality at an attractive price point. The performance-oriented top speed of the 1500rpm PWM version is ideal for high efficiency case, radiator and CPU cooling as well as other applications that require both extended performance headroom and PWM for automatic speed control.




Tens of thousands of quiet cooling enthusiasts around the globe swear by Noctuas classic NF-P14. Thanks to its impressive quietness, excellent performance and impeccable quality, the NF-P14 has become an established reference for quiet 140mm fans.






The redux product line reissues some of Noctuas most popular, award-winning models by presenting them in streamlined, accessibly priced packages. All redux edition products are industry proven, time-tested models that helped to found Noctuas reputation as a first-tier supplier of premium grade low noise cooling equipment.






The square 140mm frame of the NF-P14s features standard 140mm mounting holes (124.5mm spacing), which makes it a premium grade replacement for common 140mm case fans and perfect for use on 140mm water cooling radiators, where its square shape will ensure full coverage and best pressure performance.



Specifically developed for high-impedance applications such as CPU coolers, water-cooling radiators or cases with tight fan grills, the NF-P14’s nine-blade impeller provides outstanding pressure and airflow performance.




Noctua’s signature Vortex-Control Notches split up trailing edge vortices and thus spread the fan’s noise emission over a wider range of frequencies. This measure makes the fan sound more pleasant to the human ear.






Supporting fully automatic speed control via PWM, the fan uses Noctua’s custom designed NE-FD1 PWM IC that integrates Smooth Commutation Drive (SCD) technology. By providing smoother torque impulses, SCD suppresses PWM switching noises and thus makes the fan quieter at lower speeds.





Combining the proven concept of hydrodynamic bearings with an additional magnet that supports the self-stabilisation of the rotor axis, Noctua’s time-tested SSO-Bearing technology has become synonymous with supremely quiet operation and exceptional long-term stability.





Users can choose from Noctua’s wide range of optional accessories such as anti-vibration mounts, Low-Noise-Adaptors, y-cables, 3:4 pin adaptors or extension cables to upgrade redux edition fans according to their individual needs.





Noctua fans are renowned for their impeccable quality and outstanding longevity. Like all Noctua fans, the redux edition models feature an MTBF rating of more than 150.000 hours and come with a full 6 years manufacturer’s warranty.



Size		140x140x25 mm
Connector		4-pin PWM
Bearing		SSO
Rotational Speed (+/- 10%)		1500 RPM
Min. Rotational Speed (PWM, +/-20%)		450 RPM
Airflow		133,7 m/h
Acoustical Noise		25,8 dB(A)
Static Pressure		1,91 mm H2O
Max. Input Power		2,4 W
Max. Input Current		0,2 A
Voltage		12 V
MTBF		> 150.000 h
Scope of Delivery		Fan 4 Fan Screws
Warranty		6 years
