All stock codes associated to this product
NFB9REDUX1600, NF-B9-REDUX-1600

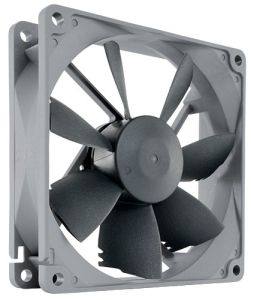

The classic NF-B9 is a long-standing favourite among enthusiast users around the world and helped to found Noctuas reputation as a top-tier manufacturer of premium quality quiet cooling components. The new redux edition reissues this award-winning model in a streamlined, accessibly priced package that has been reduced to the essential core: the NF-B9 premium fan. Its industry grade SSO bearing, over 150.000 hours MTBF rating and full 6 years manufacturers warranty make the NF-B9 redux a proven premium choice that provides trusted Noctua quality at an attractive price point. The 1600rpm version is ideal for efficient case ventilation or other applications that demand an even balance of performance and quietness.
Proven NF-B9 design
Tens of thousands of quiet cooling enthusiasts around the globe swear by Noctuas classic NF-B9. Thanks to its impressive quietness, excellent performance and impeccable quality, the NF-B9 has become an established reference for quiet 92mm fans.
Streamlined redux edition
The redux product line reissues some of Noctuas most popular, award-winning models by presenting them in streamlined, accessibly priced packages. All redux edition products are industry proven, time-tested models that helped to found Noctuas reputation as a first-tier supplier of premium grade low noise cooling equipment.
Vortex-Control Notches
Noctuas signature Vortex-Control Notches split up trailing edge vortices and thus spread the fans noise emission over a wider range of frequencies. This measure makes the fan sound more pleasant to the human ear.
Bevelled Blade Tips
Reducing critical rotor stator interaction, Bevelled Blade Tips permit to combine extended leading edges and a higher blade surface area with quieter operation and thus form a cornerstone of the fans outstanding efficiency.
Smooth Commutation Drive 2
The latest version of Noctua’s advanced Smooth Commutation Drive system ensures superb running smoothness by eliminating torque variations and switching noises. This makes the fan remarkably quiet even at very close distance.
SSO-Bearing
Combining the proven concept of hydrodynamic bearings with an additional magnet that supports the self-stabilisation of the rotor axis, Noctua’s time-tested SSO-Bearing technology has become synonymous with supremely quiet operation and exceptional long-term stability.
Optional accessories
Users can choose from Noctua’s wide range of optional accessories such as anti-vibration mounts, Low-Noise-Adaptors, y-cables, 3:4 pin adaptors or extension cables to upgrade redux edition fans according to their individual needs.
6 years manufacturers warranty
Noctua fans are renowned for their impeccable quality and outstanding longevity. Like all Noctua fans, the redux edition models feature an MTBF rating of more than 150.000 hours and come with a full 6 years manufacturers warranty.
Specifications
| Size |
|
92x92x25 mm |
| |
| |
| |
| Connector |
|
3-pin |
| |
| |
| |
| Bearing |
|
SSO |
| |
| |
| |
| Rotational Speed (+/- 10%) |
|
1600 RPM |
| |
| |
| |
| Min. Rotational Speed (PWM, +/-20%) |
|
350 RPM |
| |
| |
| |
| Airflow |
|
64,3 m/h |
| |
| |
| |
| Acoustical Noise |
|
17,6 dB(A) |
| |
| |
| |
| Static Pressure |
|
1,61 mm H2O |
| |
| |
| |
| Max. Input Power |
|
1,32 W |
| |
| |
| |
| Max. Input Current |
|
0,11 A |
| |
| |
| |
| Voltage |
|
12 V |
| |
| |
| |
| MTBF |
|
> 150.000 h |
| |
| |
| |
| Scope of Delivery |
|
|
| |
| |
| |
| Warranty |
|
6 years |
