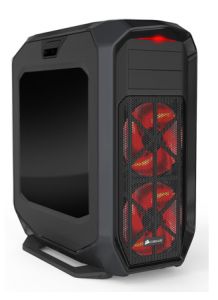

Graphite Series 780T Full-Tower PC Case
Overview
Premium looks, premium space, premium cooling.
The stunning Graphite Series 780T Full-Tower PC case can satisfy the most hardcore gamer or overclocker with ample room for nine drives and nearly a dozen large cooling fans. Into water cooling? Youll appreciate the generous space for dual 360mm radiators. And, youll get everything done faster: the 780T offers easy maintenance shortcuts like tool-free removal of side panels, hard drives, and graphics cards. A three-speed fan control button and generous options for peripheral connections make the front-panel a true time saver.
Rounded corners and a sleek, cohesive design
A nicely built high performance PC can be a thing of beauty, and this is truer than ever with the artfully crafted exterior.
Latched side panels for easy access
No tools or twisting are necessary to get at your components for maintenance and upgrades. You’ll get in, get out, and get on with your work or play.
Dual 360mm radiator support
Does your next dream build demand state of the art cooling? The 780T has you covered. Of course, if your heat transfer needs are a little more down-to-earth, 120mm and 240mm cooling goes in just as easily.
Dual 140mm intake fans and a 140mm exhaust fan
The 780T gives you ample airflow right out of the package. Large diameter front intake fans deliver plenty of cool air to your high performance components.
Front-panel three-mode fan controller and four USB ports
Power is nothing without control. You can be the judge of the optimal noise and cooling ratio. The three-step LED gauge tells you exactly where youre at: one bar for surfing the web, and three when youre pushing your GPUs hard.
The front panel also has two USB 3.0 and two USB 2.0 ports, so device management is easy.
Smart storage configuration
Modular hard drive cages and space-saving side-mounted SSD bays make the most of interior volume. You can remove the cages you don’t need, and your solid-state storage tucks out of sight and out of the airflow path.
Contents and Specifications
Package contents
- Graphite Series 780T Full Tower PC Case
- Accessory and screw kit
- Quick Start Guide
Compatibility
- Mini-ITX, MicroATX, ATX, E-ATX, XL-ATX motherboards
Technical specifications
- Maximum GPU Length: 355mm
- Maximum CPU Cooler Height: 200mm
- Maximum PSU Length: 260mm
- Radiator Mount Locations:
- Front: 360mm or 280mm
- Top: 360mm or 280mmBottom: 240mm
- Rear: 140mm
Fan Mount Locations:
- Front: 3 x 120mm or 2 x 140mm
- Top: 3 x120mm or 2 x 140mm
- Bottom: 2 x 120mm (HDD Cage Removed)
- Rear: 1 x 120/140mm
Specifications
- Warranty: Two years
- Weight: 11.3kg
- Color: Black
- Case Form Factor: Full-Tower
- Dimensions: 637mm x 288mm x 602mm
- Case Motherboard Support: Mini-ITX, MicroATX, ATX, E-ATX, XL-ATX
- Maximum GPU Length: 355mm
- Maximum CPU Cooler Height: 200mm
- Maximum PSU Length: 260mm
- Case Expansion Slots: 9
- Case Drive Bays: (x2) 5.25in (x3) 2.5in (x6) Combo 3.5in/2.5in
- Case Material: Steel
- Case Power Supply: ATX (not included)
External Connections:
- (x2) USB 2.0
- (x2) USB 3.0
- (x1) Fan Controller
- (x1) Headphone Port
- (x1) Microphone Port
Fan Mount Locations
- Front: (x3) 120mm or (x2) 140mm
- Top: (x3) 120mm or (x2) 140mm
- Rear: (x1) 120/140mm
- Bottom: (x2) 120mm
Fans Included
- Front: (x2) 140mm
- Rear: (x1) 140mm
Radiator Mount Locations
- Front: 240/280/360mm
- Top: 240/280/360mm
- Rear: 120/140mm
- Bottom: 240mm
Compatible Corsair Liquid Coolers
- H55, H60, H75, H80i, H90, H100i, H105, H110
