All stock codes associated to this product
100W10500KR, 100-W1-0500-KR, 21EWPS500W, 21E-WPS-500W, 843368026318
Overview
Ready for 4th Generation Intel Core Processors (C6/C7 Idle Mode)

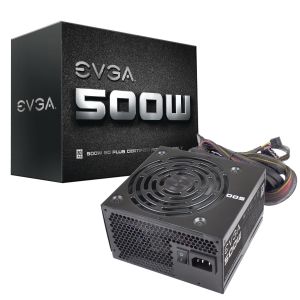

When building on a budget, the EVGA 500W 80 PLUS is a great choice at a low cost. Supporting 40A on a single +12V rail provides more options without having to reduce your component requirements. Save space with the 500W's compact design, well-placed power switch and fully sleeved cables. The 500W offers the connections and protections needed for basic system builds. With a standard 3 year warranty and ultra quiet fan design the 500W will be a great asset for your next build on a budget.
Features
Key Features
Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), and SCP (Short Circuit Protection)
Quiet and Intelligent Auto Fan for near-silent operation
3 Year Warranty
Award winning EVGA Support backed by a full 3 Year Warranty!
Details
Specifications:
Cable Length
ATX Cable |
1x 550mm |
EPS Cable |
1x 600mm |
PCIE Cable |
1x 550mm, 670mm |
SATA Cable |
2x 450mm, 570mm, 690mm |
Four-Pin Peripheral Cable |
1x 450mm, 570mm, 690mm (f) |
Floppy Adapter |
1x 120mm |
AC Power |
1x 1200mm (m) |
Modular Cable Type |
No |
Connector Quantity
24 Pin ATX |
1x |
EPS (CPU) |
1x 8pin (4+4) |
PCIE |
2x 8pin (6+2) |
SATA |
6x |
Four-Pin Peripheral |
3x |
Floppy |
1x |
Power Specs
AC Input |
100 - 240 VAC, 8A, 50 - 60 Hz |
Rail |
+3.3V |
+5V |
+12V |
+5Vsb |
-12V |
Max output |
24A |
20A |
40A |
3A |
0.3A |
40A |
120W |
480W |
15W |
3.6W |
Total |
500W @ +40C |
Additional Details
Operating Temperature |
0 to 50 C |
ECO Mode |
No |
MTBF |
100,000 Hours |
Net Weight |
4 lbs |
Size |
85mm (H) x 150mm (W) x 140mm (L) |
Approvals |
TUV, cUL, UL, CE, FCC, WEEE, RoHS
|
Fan Size / Bearing |
120mm Sleeve Bearing |
Product Warranty
This product comes with a 3 year warranty. Registration is recommended.
