All stock codes associated to this product
ESART30

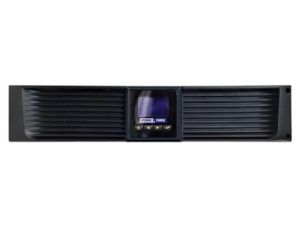

Upsonic Series 2 - 3000VA Rack/Tower 2U UPS Line Interactive & AVR
Description
ENERGY SAVING - ESART SERIES II (ALTO)
Energy Saving Technology 3000VA
Output on Battery
- Intelligent Charging controlled
- 98% Efficiency in ECO Mode
- Intelligent interactive LCD control panel
- Multiple interfaces options: RS232/RS485/MODBUS/USB/SNMP
Standard and long backup time
Starts on battery, no mains power required
- Protection against overload, overheating, surges, spikes, short circuit, over charging
- Ability to Integrate with Genset
Due to rising electricity costs, Energy Saving has become one of today's most important issues. It is a trend to operate ECO - Economical mode on big capacity on-line double conversion UPS. This seems to virtually turn UPS back to Stand by (0ff-line) era.
Our new ES pure sine wave line-interactive UPS are based on Energy Saving technology. In addition to providing high quality Sine Wave power and low Harmonic Distortion to support both Linear and Non-linear loads the ES series has a built in wide range AVR (automatic voltage regulator) on Bypass circuit which stabilises power and makes the ES series operate even more effectively and safely than an On-line double conversion UPS operated under ECO mode.
ES pure sine wave line-interactive UPSvsOn-line double conversion UPS operated under ECO mode
- Wider input range:More than 10% wider input main power voltage range than an on-line UPS.
- High overall efficiency:Consumes much less power than an on-line double conversion UPS during bypass mode operation.
- Better stability:Concise designed compact unit gives better stability.
- Economically smaller:Smaller footprint. Less expense for users.
Specifications
| Model |
ESART-1000 |
ESART-2000 |
ESART-3000 |
| Capacity |
Watt |
1000/900W |
2000/1800W |
3000/2700W |
| Input |
Input voltage range |
161-276VAC |
| |
Frequency range |
50/60Hz 5Hz for Normal Mode |
| 40-70Hz for Generator Mode |
| Output |
Voltage |
220/230/240VAC |
| Voltage Regulation |
5% |
| (Batt. Mode) |
230 VAC |
| Frequency |
50Hz or 60Hz |
| Waveform |
Pure sinewave |
| Overload rating |
Line Mode |
110% -0%, +8%: shutdown after 3 minutes. |
| 150% -0%, +10%: shutdown after about 200ms |
| Battery Mode |
110% 6%; shutdown after 30 seconds. |
| 120 % 6 %; Shutdown after about 100ms |
| Internal battery |
Battery Type |
12V/7AH |
12V/7AH |
12V/9AH |
| Quantity |
3 |
6 |
6 |
| Recharge Time |
3 hours to 90% after discharged |
3 hours to 90% after discharged |
4 hours to 90% after discharged |
| External battery |
Battery Type |
12V/7AH |
12V/7AH |
12V/9AH |
| Interface |
RS232 |
Yes |
| Dry-Contact |
Yes |
| USB |
Yes |
| SNMP |
Optional |
| EPO |
Optional |
| Operating Environment |
Temperature |
0 to 40C |
| Humidity |
20%-80% relative humidity (non-condensing) |
| Altitude |
<1500m |
| Storage Temperature |
>-15 to 40C |
| Dimensions |
(W x H x D in mm) |
438X86.5x436 |
438X86.5x608 |
438X86.5x608 |
| Net Weight Kg |
17.8 |
27.8 |
27.8 |
| Indicator |
AC Mode |
NORM---normal mode |
| Backup Mode |
Show bATT and sounding every 4 seconds |
| Load/Battery Level |
LCD showing |
| UPS Fault |
LCD show red screen and **** |
| Overload |
LCD show red screen and OVLD |
| Audible Alarm |
Low Battery |
LCD show red screen and bTLW |
| Backup Mode |
Sounding every 4 seconds |
| Low Battery |
Sounding every second |
| UPS Fault |
Continuously Sounding |
| Overload |
Sounding every second |
| Battery Replacement |
Sounding every second |
