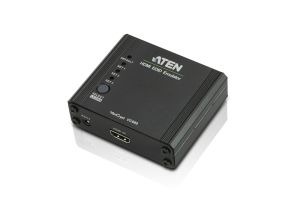

Aten HDMI EDID Emulator
VC080-AT
Description

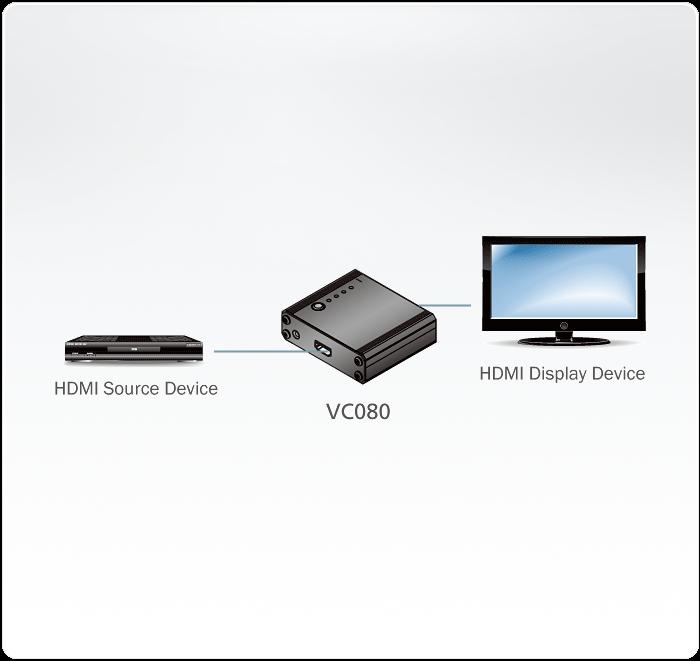

The ATEN VC080 is a HDMI EDID Emulator, which is designed to emulate and store the EDID of a video display, providing constant and reliable EDID data for the a HDMI source device to efficiently optimize video resolution.
The ATEN HDMI EDID Emulator is a convenient tool that ensures smooth viewing experience for any video installation. The EDID Emulator provides three flexible methods for selecting and switching between EDID Modes: Default Mode, Programming Mode, and Learning Mode. It comes with an easy-to-use EDID Wizard that allows users to quickly view, store and manage EDID settings.
Features:
- Superior video qualityHDTV resolutions of 480i, 480p, 720i, 720p, 1080i, 1080p (1920 x 1080); VGA, SVGA, XGA, SXGA, UXGA and WUXGA (1920 x 1200)
- EDID Wizardallows a user an easy way to manage EDID settings
- Consumer Electronics Control (CEC) allows interconnected HDMI devices to communicate and respond to one remote control
- EDID mode selectionDefault, Learning , Programming
- HDMI (3D, Deep Color), HDCP compatible
- Supports Dolby True HD and DTS HD Master Audio
- Automatically manages EDID communication between connected devices
- Signaling rates up to 2.25 Gbits in support of 1080p display
- LED indication of video source devices
- Supports wide screen
- Supports hot-plugging
- Non-Powered*
*If the video source is not receiving enough power an external power cord should be connected.
Package Contents:
- 1x VC080 HDMI Emulator
- 1x RS-232 Configuration Cable
- 1x USB to DC Power Cord
- 1x User Instructions
Specifications
| |
Video In |
1 x HDMI Type A Female (Black) |
| Video Out |
1 x HDMI Type A Female (Black) |
| RS-232 Port |
1 x mini jack (Black) |
| Power |
1 x DC Jack |
| Switches |
Learn/Select |
1 x Pushbutton |
| LEDs |
EDID Set |
4 (Green) |
| Video |
1920 x 1200; 1080p |
| Power Consumption |
DC5V, 0.15W |
| Environment |
Operating Temp. |
0-50C |
| Storage Temp. |
-20-60C |
| Humidity |
080% RH, Non-condensing |
Physical
Properties |
Housing |
Metal |
| Weight |
0.15 kg |
Dimensions
(L x W x H) |
7.90 x 7.16 x 2.55 cm |
