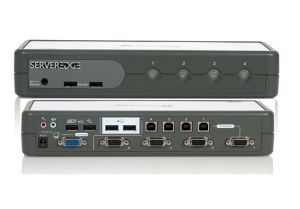

Serveredge KD04UVH2 4-Port USB/VGA Desktop KVM Switch With Audio & USB Hub 2.0

IMG 1 of 1
Our Price:
$460.20
RRP:
$524.45
You Save:
$64.25
or quickly purchase this product
In stock for shippingShips from our warehouse in 1-3 business days
Part Number:
380024
(?) Brand:
Serveredge
Manuf No:
KD04UVH2
Shipping Weight:
1.2 KG (Includes product packaging)
Estimate Shipping
Date Added:
26/11/2014
Details Files Images & Video
All stock codes associated to this product
KD04UVH2, 9352399001405
Serveredge 4-Port USB / VGA Desktop KVM Switch With Audio & USB Hub2.0 - Includes Cables

KD04UVH2

Product Description

The Serveredge KD04UVH2 is a 4-port USB KVM switch with audio and microphone switching function. It also provides four USB 2.0 hub ports for high-speed USB 2.0 devices sharing. You can select the computers, USB device hub port control and audio/mic channel independently, using either front-panel buttons or keyboard hotkeys. This stylish Compact Desktop KVM Switch family is much more than an ordinary desktop KVM Switch. With Active Sync Replication (A.S.R.), KD04UVH2 can fully support advanced DDC video signaling requirement of the latest operating systems, such as Windows 7 and Mac OS X.

PRODUCT SPECIFICATION

Model No.
KD04UVH2
Product Description
4-Port VGA USB KVM Switch w/ Audio, Mic & Hub
Number of Ports
4
Number of Console
1
Console Keyboard Connector
USB Type A Female
Console Mouse Connector
USB Type A Female
Console Video Connector
VGA HDB15 Female
Console Audio/Mic Connector
2 x 3.5mm Audio/Mic Jack Female
Console USB Hub Ports
4 x USB 2.0 Type A Female
PC Keyboard Connector
4 x USB Type B Female
PC Mouse Connector
Via PC Keyboard Connector
PC Video Connector
4 x VGA HDB15 Female
PC Audio/Mic Connector
4 x 3.5mm Audio/Mic Jack Male
PC selection
Push Button / Hotkeys
PC port LED
4
Analog Display Resolution
2048 x 1536
Keyboard & Mouse Emulation
Yes (TTU)
Auto Scan Delay Time
5~100 sec
Operation Temperature
0 ~ 40C
Storage Temperature
-20 ~ 60C
Humidity
0~90% RH, Non-Condensing
Power type
2.5mm Power Jack
Power Adapter
DC 5V/2A
Weight
450g
DDC Emulation A.S.R
Dimension(LWH)
262 X 101 X 45 mm
Safety / Emission
FCC, CE

PRODUCT FEATURE

  • 4 extra USB 2.0 device port for high-speed USB device sharing
  • True Transparent USB emulation technology for any keyboard and mouse
  • Active Sync Replication for DDC emulation
  • Independent/simultaneous switching of computer/audio/USB hub ports
  • PC selection by push button and keyboard hotkeys
  • LED indicators for easy status monitoring
  • Low power consumption using ASIC
  • VGA video resolution support up to 2048 x 1536
  • IR remote switching control

No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 Year Return to Base

Full manufacturers warranty details are available at the manufacturers web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
