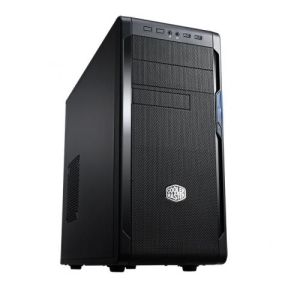

CoolerMaster N300 Midi-Tower Case - Thermaltake 500W PSU Bundle, Midnight Black
  • 2xUSB3.0, 1xHD-Audio, 120mm Fan, Polymer, Mesh Front Bezel, ATX

IMG 1 of 1
Not for individual purchase
or quickly purchase this product
Backorder
(?) Brand:
CoolerMaster Web Site
Manuf No:
TBB9733486266
Shipping:
Free Shipping
Date Added:
6/10/2015
Details Files Images & Video
All stock codes associated to this product
, TBB9733486266
N300

NSE-300-KKN2

Introduction

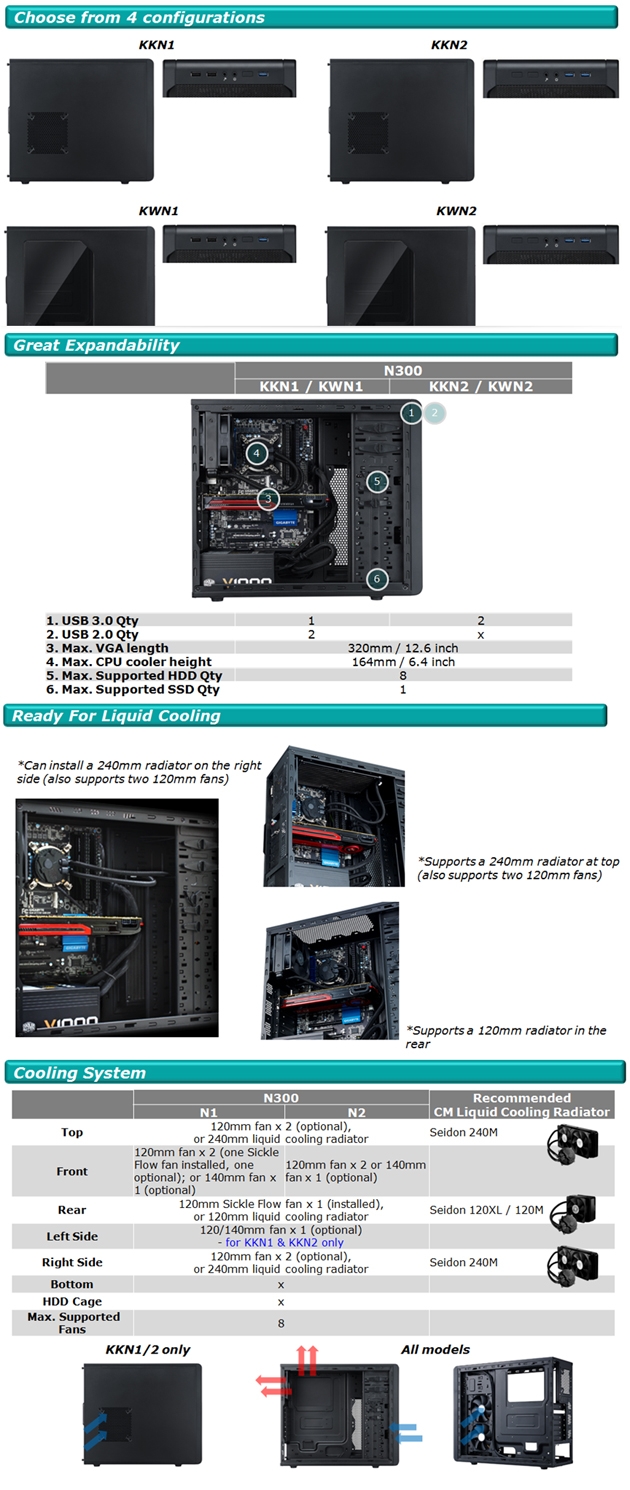

The new Cooler Master N300 is a mid-tower designed for optimum cooling. There are four models to choose from by single / dual USB 3.0 support and side panel window. To keep constant cooling, the front panel is fully covered by mesh, and thanks to the SickleFlow fans, N300 generates extreme high airflow and keep silence for long-time operation. If you prefer liquid cooling solutions, installing 240mm or 120mm radiators in N300 won't be a problem as well. The 240mm radiator can be installed at the top or on the right side, and the 120mm one - in the rear. Additionally, N300 supports up to 8 HDDs and high-end graphics cards up to 320mm / 12.6 inch for a plenty of expansion.

Features

  • Full mesh on the front panel
  • Supportsa 240mm liquid cooling radiator or two 120mm fans on the right side / at the top
  • Supports a 120mm liquid cooling radiator in the rear
  • Supports high-end graphics cards up to 320mm / 12.6 inch, including NVIDIA GTX 690 & AMD HD 7990
  • Supports up to 8 HDDs (2 tool-less)
  • Dust filter under the PSU for easy maintenance
  • Accessible power switch button with blue LED illuminated when the power is on
  • Super Speed USB 3.0 Support (KKN1 / KWN1); Dual USB 3.0 Support (KKN2/ KWN2)
  • Includestwo SickleFlow 120mm fans arranged for optimum airflow in the front and rearwith support for up to 8 fans (KKN1) / 7 fans (KWN1)
  • Includes one SickleFlow 120mm fan (no LED) in the rear for optimum airflow with support for up to8 fans (KKN2) / 7 fans (KWN2)
  • Large side panel window (KWN1 / KWN2)
  • Caninstall one optional 120/140mm fan on the left side panel to cool the graphics cards (KKN1 / KKN2)


Specifications:

Available Color Midnight Black

Material Polymer, mesh front bezel

Dimension (W / H / D) 190 x 426 x 491.5 mm / 7.5 x 16.7 x 19.3 inch

Weight 5.2 kg / 11.5 lbs

M/B Type microATX, ATX

5.25" Drive Bay 2 (exposed)

3.5" Drive Bay 1 (exposed), 7 (hidden)

I/O Panel KKN1 / KWN1: USB 3.0 x 1 (int.), USB 2.0 x 2, Mic x 1, Audio x 1 (supports AC97 / HD Audio)
KKN2 / KWN2: USB 3.0 x 2 (int.), Mic x 1, Audio x 1 (supports AC97 / HD Audio)

Expansion Slots 7

Cooling System Top: 120mm fan x 2 (optional)
Front (KKN1 / KWN1): 120mm fan x 2 (one SickleFlow fan installed, one optional); or 140mm fan x 1 (optional)
Front (KKN2 / KWN2): 120mm fan x 2 or 140mm fan x 1 (optional)
Rear: 120mm SickleFlow fan x 1 (installed)
Left Side: 120/140mm fan x 2 (for KKN1 / KKN2 only)
Right side: 120mm fan x 2 (optional)

Power Supply Standard ATX PS2

2.5"/3.5"- SATA HDD Drive Bay 1 (hidden)

Maximum Compatibility VGA card length: 320 mm / 12.6 inch
CPU cooler height: 164mm / 6.4 inch

This bundle is comprised of the following products:

4341351 x CoolerMaster N300 Midi-Tower Case - NO PSU, Midnight Black
4104641 x ThermalTake 500W Litepower Power Supply - ATX 12V V2.2, OEM
120mm Silent Fan
24-Pin(1), ATX12V 4+4-Pin(1), Molex(3), PCI-E 6-Pin(1), SATA(5)
CoolerMaster N300 Midi-Tower Case - NO PSU, Midnight Black

CoolerMaster N300 Midi-Tower Case - NO PSU, Midnight Black

back to top

Product Description:

The new Cooler Master N300 is a mid-tower designed for optimum cooling. There are four models to choose from by single / dual USB 3.0 support and side panel window. To keep constant cooling, the front panel is fully covered by mesh, and thanks to the SickleFlow fans, N300 generates extreme high airflow and keep silence for long-time operation. If you prefer liquid cooling solutions, installing 240mm or 120mm radiators in N300 won't be a problem as well. The 240mm radiator can be installed at the top or on the right side, and the 120mm one - in the rear. Additionally, N300 supports up to 8 HDDs and high-end graphics cards up to 320mm / 12.6 inch for a plenty of expansion.

Basic
Brand Name:Cooler Master
Colour:Midnight Black
Form Factor:Mid-tower
Material:Polymer
Motherboard Supported:µATX
Number of External 3.5" Bays:1
Number of External 5.25" Bays:2
Number of Internal 3.5" Bays:7
Number of Power Supplies Supported:1
Number of Total Expansion Bays:9
Product Family:N
Product Type:Computer Case
Bays
Number of External 3.5" Bays:1
Number of External 5.25" Bays:2
Number of Internal 2.5" Bays:11
Number of Internal 3.5" Bays:7
Number of Total Expansion Bays:9
General Information
Brand Name:Cooler Master
Manufacturer Website Address:https://www.coolermaster.com
Manufacturer:Cooler Master Co., Ltd
Product Model:N300
Product Name:N300 System Cabinet
Product Series:N
Product Type:Computer Case
I/O Expansions
Number of Total Expansion Slots:7
Interfaces/Ports
Total Number of Audio In Ports:1
Total Number of Audio Out Ports:1
Total Number of USB Ports:3
Physical Characteristics
Colour:Midnight Black
Depth:491.5 mm
Form Factor:Mid-tower
Height:426 mm
Material:Polymer
Weight (Approximate):5.20 kg
Width:190 mm
Power Description
Number of Power Supplies Supported:1
Technical Information
Fan Size Supported:120 mm
Installed Fan Size:120 mm
Motherboard Supported:µATX
Number of Fans Installed:2
Number of Fans Supported:8


ThermalTake 500W Litepower Power Supply - ATX 12V V2.2, OEM120mm Silent Fan24-Pin(1), ATX12V 4+4-Pin(1), Molex(3), PCI-E 6-Pin(1), SATA(5)

ThermalTake 500W Litepower Power Supply - ATX 12V V2.2, OEM
  • 120mm Silent Fan
  • 24-Pin(1), ATX12V 4+4-Pin(1), Molex(3), PCI-E 6-Pin(1), SATA(5)

back to top

Product Description:

Overview

  • Intel ATX 12V 2.2 Compatible.
  • 6-pin PCI-E connector included to support high-end graphic card.
  • Stable output and excellent performance.
  • Build-in Over Power Protection, Over Voltage Protection, and Short-Circuit Protection.
  • Safety: TUV, UL, CE, FCC, BSMI certification

Features

  • Intel ATX 12V 2.2 Compatible.
  • 6-pin PCI-E connector included to support high-end graphic card.
  • Stable output and excellent performance.
  • Build-in Over Power Protection, Over Voltage Protection, and Short-Circuit Protection.
  • Safety: TUV, UL, CE, FCC, BSMI certification.

Specifications

Max. Output Capacity

400 Watts

Peak Output Capacity

500 Watts

Colour

Silver

P. G. Signal

100-500 ms

PFC (Power Factor Correction)

non PFC

Cooling System

12cm Fan

Over Voltage Protection

+5V output: 5.74V~7.0V

+3.3V output: 3.76V~4.3V

+12V output: 13.4V~15.6V

Dimension

14cm(L)x15cm(W)x8.6cm(H)

Input Voltage

110Vac / 220Vac

Input current

8A max

Input Frequency

Range 47Hz~63Hz

Hold Up Time

16ms(minimum) at 80% Load

Operating Temperature

+5? to +35 ?

Operating Humidity

20% to 85%, relative humidity
