Core P5

P/N: CA-1E7-00M1WN-00

Design

Feature

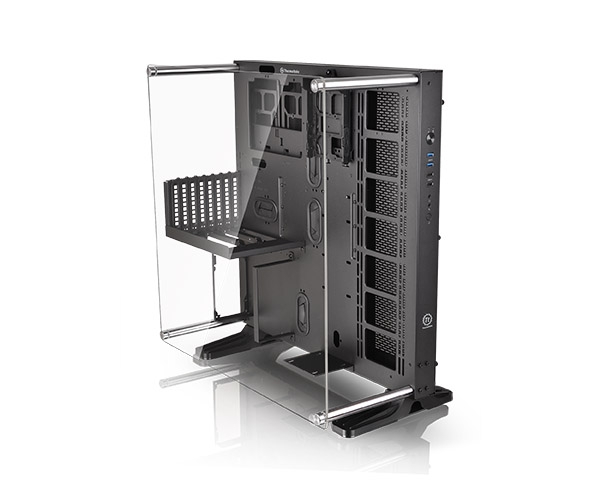

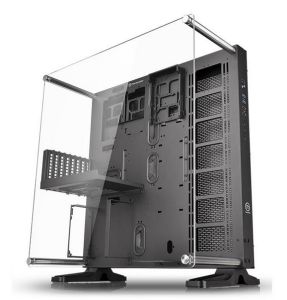

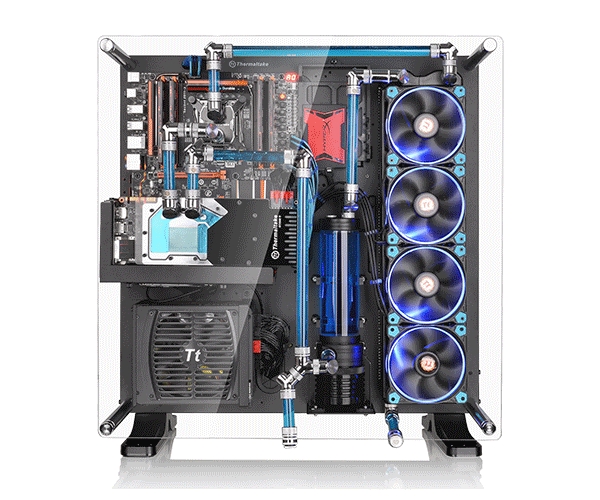

Thermaltake Core P5 ATX Wall-Mount Chassis

Take presentation to the next level with the Core P5 Open Frame chassis by Thermaltake. The fully modular design of the Core P5 allows flexibility for 3-way placement layouts (Wall mount, Horizontal and Vertical), dual GPU layout locations: Horizontal and Vertical and placement locations for liquid cooling components. Uncover greatness with the Core P5s panoramic viewing angle with its large acrylic window to protect and present. Seeing is believing, the Core P5 brings the ultimate in PC hardware viewing wherever you mount or display.

Tt LCS Certified is a Thermaltake exclusive certification applied to only products that pass the design and hardcore enthusiasts standards that a true LCS chassis should be held to. The Tt LCS certification was created so that we at Thermaltake can designate to all power users which chassis have been tested to be best compatible with extreme liquid cooling configurations to ensure you get the best performance from the best features and fitment.



Built for Makers

By practicing and incorporating the idea of maker movement as well as 3D printing in Core P5, Thermaltake designs the open frame pamoramic viewing chassis as anyone can access and do his/her own mods as well as print out his/her own ideas using available liquid cooling components and manuals without boundaries.

Users can download 3D printing accessory files on Core P5 microsite, printing them out to do a special mod.

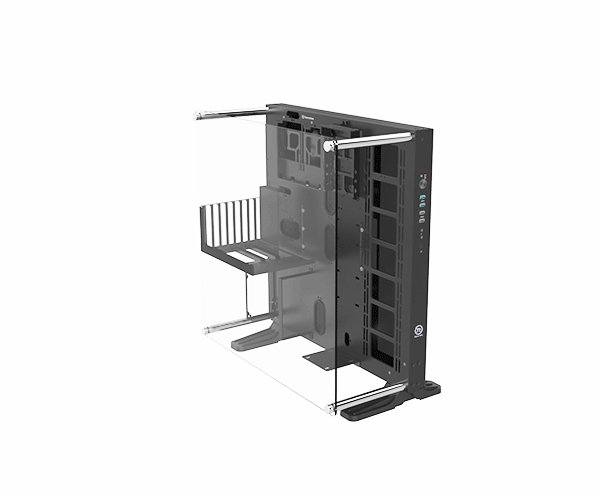

Fully Modular Concept

Four customizable 3.5 & 2.5 drive bays feature enables users to freely interchange the hard-drive cages to suit their particular needs, whilst being able to remove the 3.5 & 2.5 drive bays to gain maximum space for cable management up to 45mm.

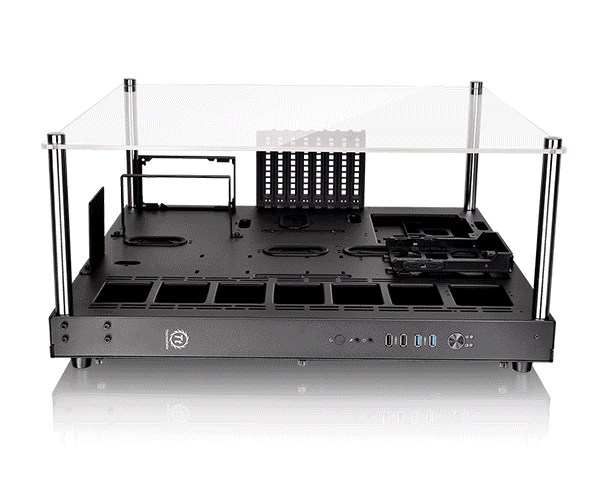

3-Way Placement Layout

The Core P5 wall-mount chassis is designed for use in three different ways: Wall-mount, vertical, and horizontal placement. Built for customization that reflects the makers personality, it allows for adjustments to the chassis for the best viewing presentation while ensuring outstanding cooling performance.

Users can hang it on the wall as decoration, take it to wherever they want and display the nice builds vertically or horizontally.

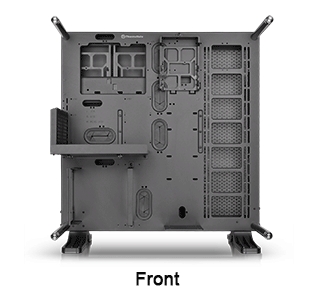

Panoramic Viewing

Other cases in the market still have ends on their open frame designs, while Core P5 is a true wall-mount case with viewing capability of showing front and back full sides unlike anything on the market that is not a modded design or scratch build.

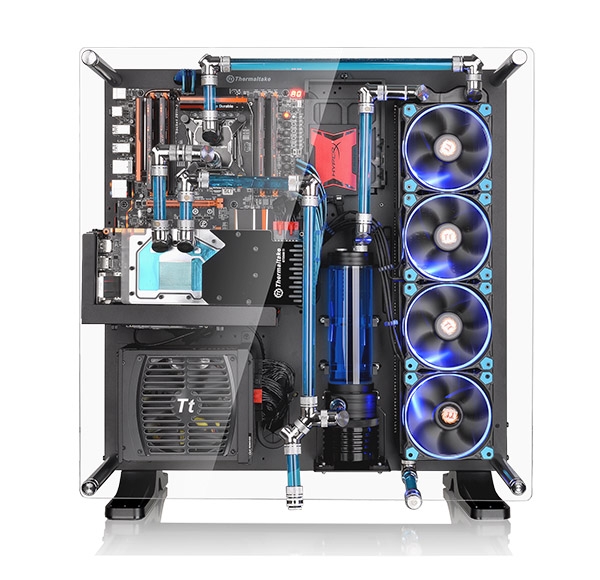

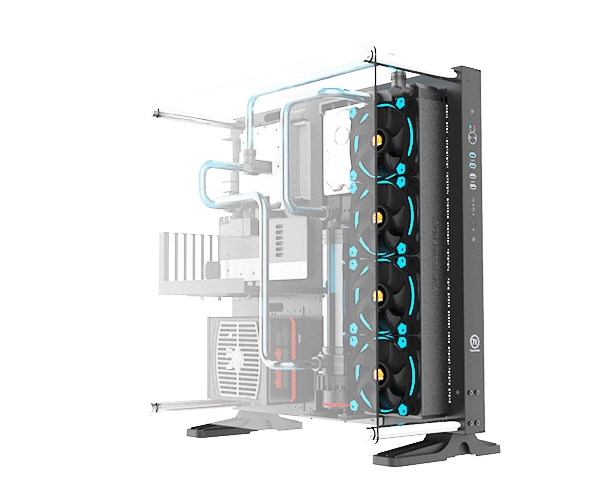

Supreme Liquid-Cooling Support

Core P5 wall-mount chassis enables users to build a complete high-end system, whilst supporting up to either 480mm radiator liquid cooling, or 140mm case fans, with a long graphic card at the same time, and simultaneously providing the best visual effects as well as increasing the CPUs case modding potential. Most importantly, it has the capability to deliver an outstanding cooling efficiency throughout the entire case.

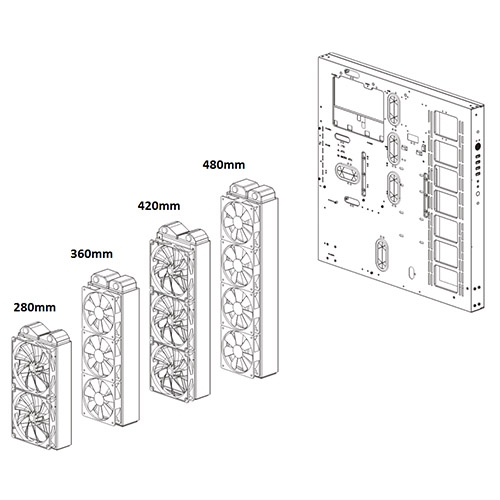

Core P5 Radiator Supporting List

Radiator Compatibility List
  120
mm
140
mm
240
mm
280
mm
360
mm
420
mm
480
mm
L-Side * * * * * * *

Core P5 Fan Supporting List

Thermaltake Fan Compatibility List
  120mm 140mm
Pure Fan Series * *
Luna Fan Series * *
Riing Fan Series * *


Specifications

Model Core P5
P/N CA-1E7-00M1WN-00
Case Type Mid Tower
Dimension (H x W x D) 608 x 333 x 570 mm
(23.9 x 13.1 x 22.4 inch)
Net Weight 12.2 kg / 26.9 lb
Side Panel Transparent Window
Color Black
Material SPCC
Drive Bays -Accessible : 1 x 3.5 or 2.5 (HDD tay)
-Hidden : 3 x 3.5 or 2.5 (Behind the M/B tray)
Expansion Slots 8
Motherboards 6.7 x 6.7 (Mini ITX), 9.6 x 9.6 (Micro ATX), 12 x 9.6 (ATX)
I/O Ports USB 3.0 x 2, USB 2.0 x 2, HD Audio x 1
PSU Standard PS2 PSU (optional)
Fan Support Left Side:
4 x 120mm
3 x 140mm
Radiator Support Left Side:
1 x 480mm
1 x 420mm
Clearance CPU cooler height limitation:
180mm

VGA length limitation:
280mm (With Reservoir)
320mm (Without Reservoir)

PSU length limitation:
200mm

* Specifications are subject to change without notice.
* The product picture(s) is only for your reference, it may differ from the actual product.

No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 Year Return to Base

Full manufacturers warranty details are available at the manufacturers (ThermalTake) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
