All stock codes associated to this product
FDPSUIN3B650WAU, FD-PSU-IN3B-650W-AU, FDPSUIN3B650W, FD-PSU-IN3B-650W
Integra M 650W
InformationFractal Design Integra M Series power supply units feature excellent electrical performance, including 80PLUS® Bronze certified efficiency.
The modular flat cable system allows for a clean installation, and enhances airflow patterns inside the case. The short 140mm length makes for easy installation in small computer cases, and the extra-long ATX12V cable accommodates modern, bottom-PSU cases.
Fractal Design Integra M units are equipped with a large temperature-controlled 120mm fan for reduced noise levels and optimum cooling.
The Integra M is a great choice for medium-performance gaming computers and workstations.

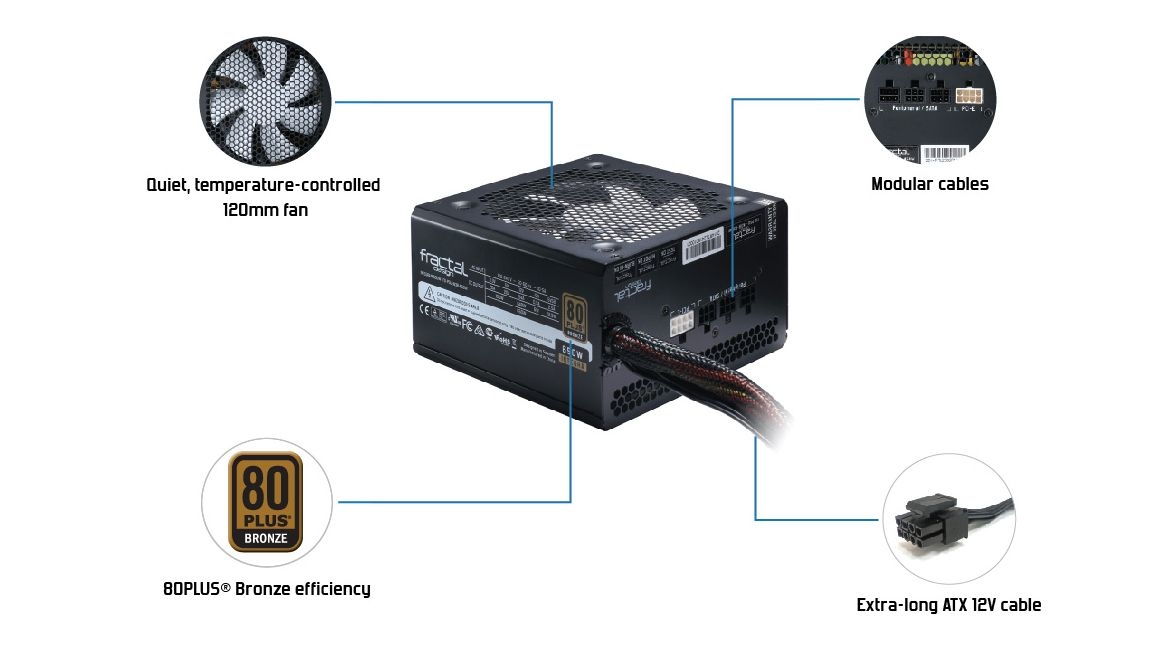

Key Features
- Modular cables. Only cables deemed likely for constant use (20+4-pin
cable; 12V CPU cable, one PCI-E cable on 650W+ models) are fixed.
- 80PLUS Bronze efficiency
- Extremely short 140mm case allows for easy installation in compact cases
- Extra-long ATX 12V cable

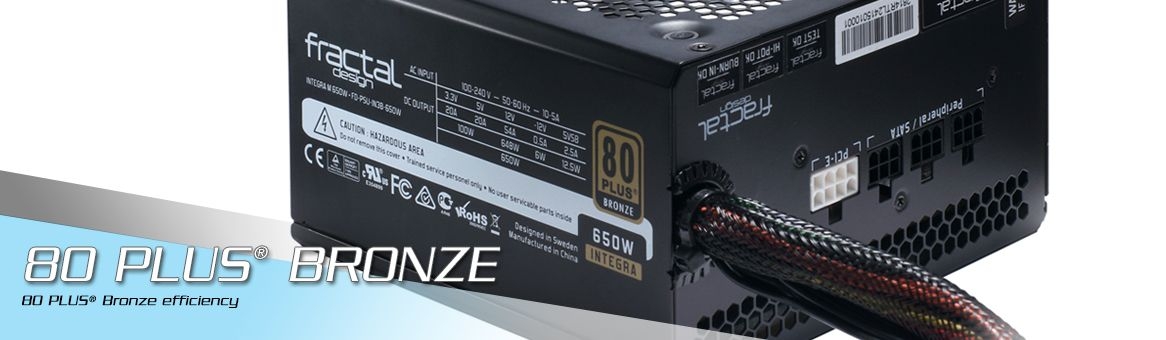

80 PLUS® Bronze certified efficiency
Integra M PSUs meet the 80 PLUS® Bronze specification for providing power with an efficiency that is typical of PSUs with much higher price points. Additionally, because Integra M PSUs generate less heat, they provide power at lower fan speeds, which results in reduced noise levels.
Excellent Electrical Performance
Fractal Design Integra M Series PSUs feature excellent DC voltage regulation and ripple suppression: they can deliver their full-rated wattage continuously even with an intake temperature as high as 40°C full load or 50°C at 80% load.
Compliant with the latest standards
Integra M PSUs are compliant with the latest PC PSU standard: ATX 2.4 / EPS 2.92

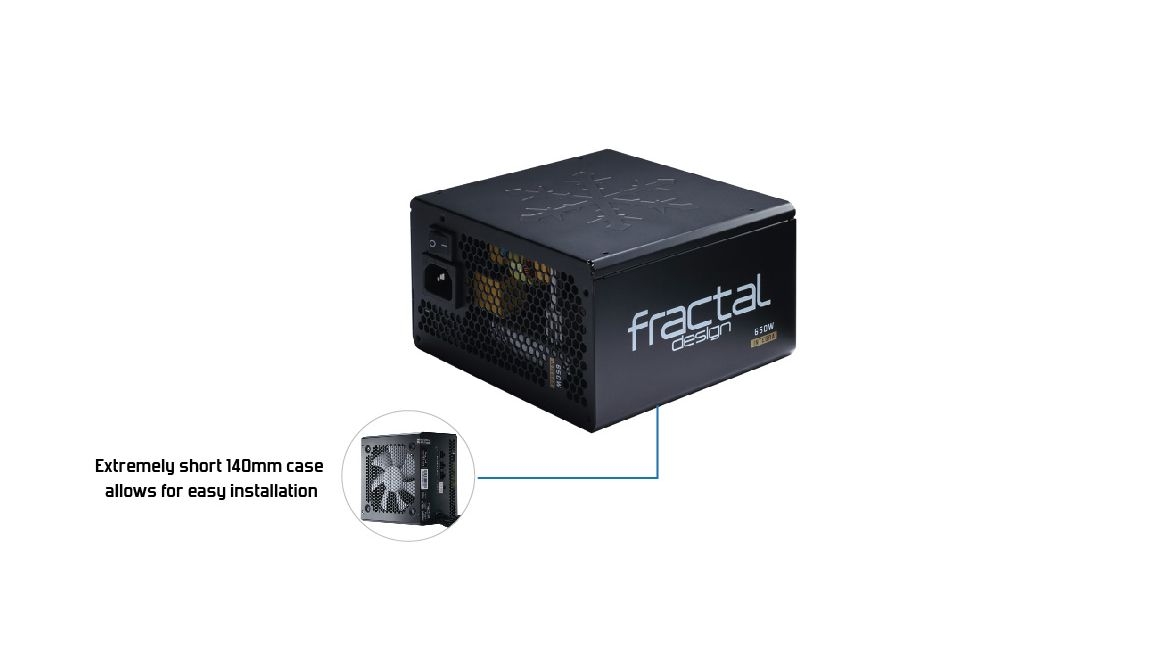

Extremely short 140 mm case
Integra M PSUs are only 140mm long, which accommodates the smallest ATX-compatible computer cases on the market.
Silent, temperature-controlled 120mm fan
Generally, larger fans move more air with less noise than smaller fans: Integra M Series PSUs are equipped with a 120mm fan Sleeve Bearing, which keeps noise level down.
Extra-long ATX12V cable
Integra M PSUs are equipped with an extra long 12V ("P4") connector cable, which accommodates bottom-mounted-PSU computer cases.
Computer protection
Integra M PSUs feature an impressive suit of computer protection, including: Over Power Protection, Over Voltage Protection, Under Voltage Protection and Short Circuit Protection.
General Specifications
80PLUS® Certification
|
|
|
Modular cables
|
|
|
Modular cable type
|
|
|
Fan type
|
- 120mm Sleeve bearing
- Temperature controlled
|
|
Maximum operating temperature at full load
|
|
|
FSupports Intel Haswell C6/C7 sleep states
|
|
|
Warranty
|
|
|
Capacitors
|
|
|
Protections
|
|
|
Life expectancy (MTBF)
|
|
|
PSU specification compliance
|
|
|
Standby efficiency
|
- ErP 2013 compliant (<0.5W system power draw)
|
|
Colors Available
|
|
|
Unit Measurements
|
|
|
Unit weights, with modular cables
|
- 450: 1.435
- 550: 1.49
- 650: 1.63
- 750: 1.69 kg
|
|
Package dimensions - W x H x D (mm)
|
|
|
Package weight – (Kg)
|
- 450: 1.63
- 550: 1.7
- 650: 1.85
- 750: 1.91 kg
|
Cable configuration
Fixed Cables (length in mm, + designates a second connector on the same cable)
Model
|
450W
|
550W
|
650W
|
750W
|
|
ATX 20+4 pin
|
510
|
510
|
510
|
510
|
|
ATX12V 4+4 pin
|
700
|
700
|
700
|
700
|
|
PCI-E 6+2 pin
|
-
|
-
|
500+100
|
500+100 |
Modular cables (length in mm, + designates a second connector on the same cable)
Model
|
450W
|
550W
|
650W
|
750W
|
|
PCI-E 6+2 pin
|
520
|
520+100
|
520+100
|
520+100
|
|
Peripheral
|
400+120
|
400+120
|
400+120
|
400+120
|
|
SATA
|
400+120+120
650+120
|
400+120+120
650+120
|
400+120+120
650+120+120
|
400+120+120+120
650+120+120 |
DC Output
|
Model
|
450W
|
550W
|
650W
|
750W
|
| 3.3V |
20A
|
20A
|
20A
|
20A
|
|
5V
|
15A
|
20A
|
20A
|
20A
|
| 3.3V and 5.V combined |
80W
|
100W
|
100W
|
100W
|
|
12V1
|
37A
|
45.5 A |
54A
|
62.5 A |
|
-12V
|
0.5 A |
0.5 A |
0.5 A |
0.5 A |
|
5V Standby (+5Vsb)
|
2.5 A |
2.5 A |
2.5 A |
2.5 A |
|
Total Power
|
450W
|
550W
|
650W
|
750W
|
Package contents
- Integra M Power Supply
- Modular cable kit
- AC power cord (localized)
- Zip ties and PSU screws
- User manual
Additional information
- EAN: 7350041082415
- UPC: 817301012416
- Product code: FD-PSU-IN3B-650W
- Masterbox quantity: 4pcs
