All stock codes associated to this product
E2270SWDN, 4717385942929
Overview
- 22" Class Full HD Monitor, rich details and colors
- 21.5 viewable image with 16:9 aspect ratio
- Extra narrow bezel and slim design
- Black with Hairline Texture in the front and matte back cover
- VGA, DVI connectivity
- VESA 100mm wall mount compliant
Features

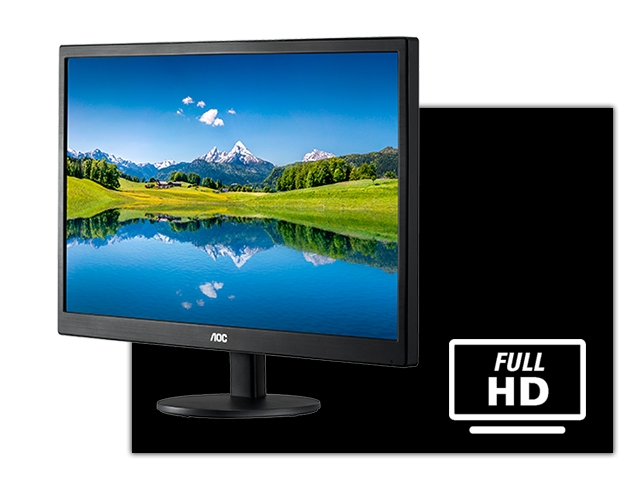

Full High-Definition and Mega Dynamic Contrast Ratio
The E2270SWDN features Full HD 1920 x 1080 resolution that allows for
high-definition image quality in terms of clarity and vivid colors. When you
have Full HD resolution with dynamic contrast ratio, the result is crisp
detailed images with incredible contrast, giving you bright vivid colors that
comes to life every time. Theimpressive 20,000,000:1 contrast ratiorevealsdarker
image areas in greater depth and detail. The E2270SWDN boasts a 5ms response
time to eliminate drag.
Full HD

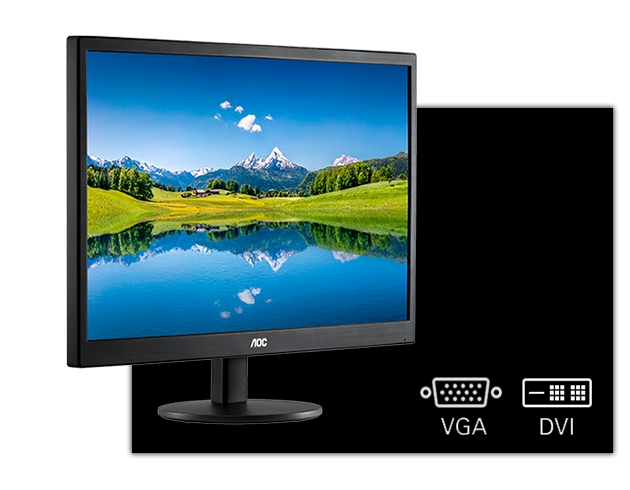

Multimedia Connectivity and Features
The E2270SWDN features VGA and DVI-Dconnections. A DVI-D with HDCPconnection
gives you high-definition video and audio, perfect for watching those videos or
highly-detailed images at home.The VESA 100mm Wall Mount compliant feature
allows you to have the monitor mounted on the wall with the appropriate mounting
accessory.
Eco-Friendly and Low-Power Consumption
This AOC monitor is both EPEAT and Energy Starcertified for low-power
consumption, which means the LED monitor is both power efficient and
eco-friendly. The E2270SWDN comes with AOCs e-Saver software, and On-Screen
Display Menufor both eco-friendly and user-friendly configuration and
navigation.
Kensington Security Slot
This AOC monitor comes with a Kensington Security Slot for theft prevention.
This anti-theft system allows you to secure the monitor in its place via
compatible locking cable kit. Kensington Security Slot is ideal for both office
and home settings.
Specifications
| PANEL |
| Viewable Screen
Size |
21.5" |
| Panel
Type |
TN
Panel |
| Aspect
Ratio |
16:09 |
| Brightness |
200 cd/m2
(typ) |
|
| Refresh
Rate |
| Contrast Ratio
(dcr) |
20,000,000:1
(dynamic) |
| Response
Time |
5
ms |
| Max
Resolution |
1920 x 1080
@60Hz |
| Color
Depth |
16.7M
colors |
| Pixel Pitch (mm) (H x
V) |
0.248 (H) mm x 0.248
(v) mm |
| View Angle (degrees) (H
x V) |
90 /
65 |
| Display Area (mm) (H x
V) |
476.64 mm x 268.11
mm |
| Scanning Frequency (H /
V) |
Horizontal:
30K~83KHzVertical: 50~76 Hz |
|
| DESIGN |
| Cabinet
Color |
Black |
| Adjustability |
Tilt:
-3.51.5~+21.51.5 |
|
| INPUTS |
| VGA |
1 |
| DVI-D |
1 |
| Dual-Link
DVI |
| HDMI
1.3 |
| HDMI
1.4 |
| HDMI
2.0 |
| HDMI
(MHL) |
| Display Port
1.2 |
| USB
2.0 |
| USB
3.0 |
| Upstream
USB |
|
| POWER |
| Power
Consumption |
Power On: <27W,
Standby: <0.5W |
| Power
Source |
Universal 110~240VAC,
50/60Hz |
|
| CONVENIENCE |
| Wall Mount (mm x
mm) |
| Built-in
Speaker |
| Audio |
| User
Control |
Auto/Power |
| Regulations |
CE, FCC, RoHS, EPEAT,
Energy Star, Windows 8 compatible |
| OSD
Languages |
16 Languages including
English, French and Spanish |
| Other
Features |
User Friendly Graphical
OSD Menu, VESA 100mm Wall Mount Compliant, Kensington Security Slot, AOC's
eSaver |
|
| WEIGHT/DIMENSIONS |
| Net Weight
(lbs) |
5.95 |
| Net Weight
(Kgs) |
2.7 |
| Gross Weight
(lbs) |
7.6 |
| Gross Weight
(Kgs) |
3.45 |
| Carton in inch
(WxHxD) |
21.97 x 15.52 x
4.25 |
| Carton in mm
(WxHxD) |
558 x 394 x
108 |
| Monitor in inch
(WxHxD) |
21.97 x 15.52 x
4.25 |
| Monitor in mm
(WxHxD) |
564 x 407 x
115 |
| Loading Qty
w/pallet |
20' = 1072 pcs.; 40'
Std = 2200 pcs. |
|
| UPC/IN THE
BOX |
| UPC |
685417080984 |
| IN the
Box |
21.5 Monitor, stand and
base, Power Cord, VGA Cable, Media (includes drivers, AOC Software, Users
Manual, Warranty) |
