ASUS exclusive innovations Picture-in-Picture (PIP) and Picture-by-Picture (PBP) allows users to view images from different signals in almost anyway they want. PIP and PBP let users view images from different signals and let them switch between the main and PIP source, including audio, easily.

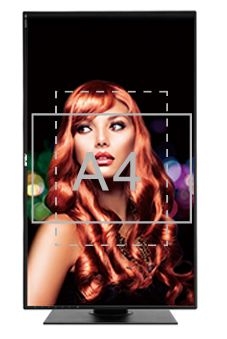

QuickFit Virtual Scale Function
ASUS included its exclusive
QuickFit Virtual Scale Function with the PB328Q , allowing users to
preview photos and documents on screen in their actual sizes prior to
printing. It can activated via a hotkey on monitor and used as a guide
to accurately view and edit photos. Additionally, the PB328Q also comes
with a choice of seven different background colors for users to choose
from.
Supporting Formats:
- Document: A3, A4, B4, B5, letter
- Photo: 8”x10”, 5”x7”, 4”x6”, 3”x5”, 2”x2”
- Grid: Alignment, Centimeters, Inches
Ergonomic Design
As with most ASUS displays, the PB328Q is VESA-wall mount compliant and comes with a versatile stand with full tilt, swivel, pivot, and height adjustment. A user-friendly Quick Release Stand for hassle-free setting.
For Your Comfort Viewing Experience
PB328Q provides Eye Care features - Flicker-free and Low Blue Light that prevent your eyes from fatigue and strain and many possible eye symptoms that caused by screen flicker and hazard blue light.
Conventional monitors without the flicker-free technology
ASUS Eyecare monitors with the Flicker-free and Low Blue Light technology
Specifications
Display
Panel Size: Wide Screen 32” (81.28cm) 16:9
Panel Backlight / Type : VA

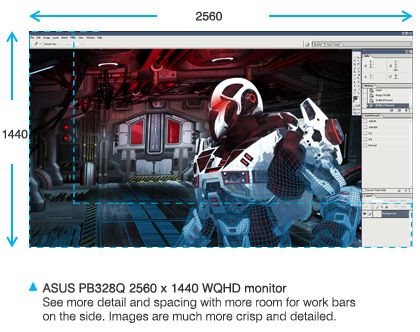

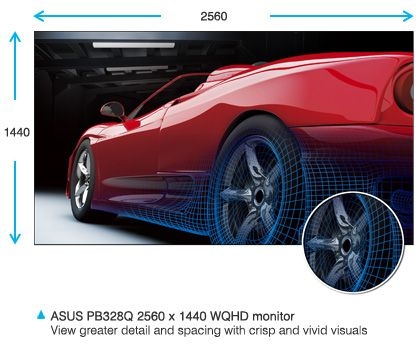

True Resolution : 2560x1440
Display Surface Non-glare
Pixel Pitch : 0.277mm
Brightness(Max) : 300 cd/?
ASUS Smart Contrast Ratio (ASCR) : 100000000:1

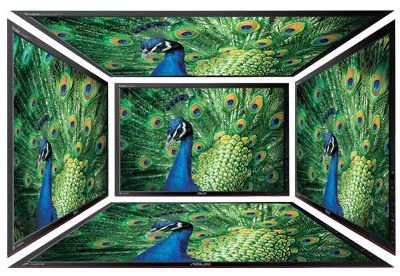

Viewing Angle (CR?10) : 178°(H)/178°(V)
Response Time : 4ms (Gray to Gray)

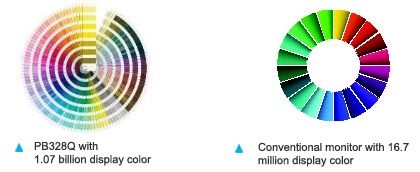

Display Colors : 1073.7M (10bit)
Flicker free
Look-up Table :12-bit
Video Feature
Gamma adjustment : Yes (Support Gamma 2.0/2.2/2.4/1.8 )
Low Blue Light : Yes
VividPixel : Yes
Audio Features
Stereo Speakers : 3W x 2 Stereo RMS
Convenient Hotkey
Blue Light Filter
Brightness Adjustment
Input Selection
QuickFit

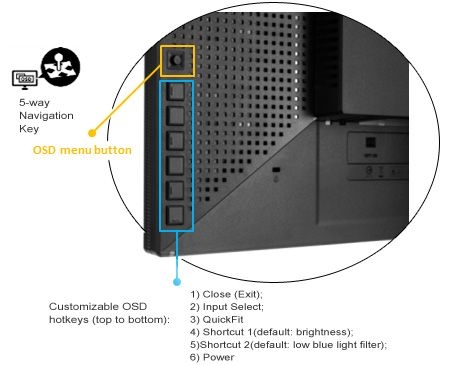

5-way OSD Navigation Joystick
I/O Ports
Signal Input : HDMI, D-Sub, DisplayPort, Dual-link DVI-D
USB Port(s) : 3.0x4
Signal Frequency
Analog Signal Frequency : 30~83 KHz(H) / 49~76 Hz(V)
Digital Signal Frequency : Display port 29~130 KHz(H) / 49~76 Hz(V)
Power Consumption
Power On: < 89.9 W*
Power Saving Mode: <0.5W
Power Off Mode: 0W
Voltage: 100-240V, 50/60 Hz
Mechanical Design
Chassis Colors : Black
Tilt : +25°~-5°
Swivel : +60°~+60°
Pivot : 0°~+90°
Height Adjustment : 0~150 mm
VESA Wall Mounting : 100x100mm
Super Narrow Bezel Design : Yes
Quick Release Stand Design : Yes
Security
Kensington lock
Dimensions
Phys. Dimension with Stand(WxHxD):735x625x242mm
Phys. Dimension without Stand(WxHxD):734.4x431x66.85mm (for VESA Wall Mount)
Box Dimension(WxHxD):847x552x350mm
Weight
Net Weight (Esti.): 11.8Kg
Gross Weight (Esti.): 16.5Kg
Accessories
Dual-link DVI cable
VGA cable
Audio cable
Power cord
DisplayPort cable
USB 3.0 cable
HDMI cable
Compliance and Standards
Energy Star®, BSMI, CB, CCC, CE, CU, ErP, FCC, ISO-9241-307, J-MOSS, KCC, PSE, RoHS, TCO6.0, UkrSEPRO, UL/cUL, VCCI, WEEE, WHQL (Windows 8, Windows 7), RCM, KC , eStandby
Note
Power consumption is based on EnergyStar 6.0 standard
