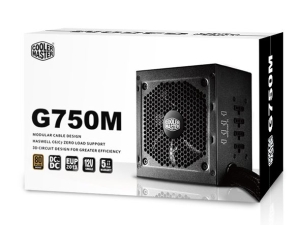

Cooler Master GM Series 750W; 80+Bronze; Semi Modul -
Intel S478/LGA775, AMD S754/S939/S940, 120mm Fan
Overview
- Unique 3D circuit design offers high efficiency and improves
the heat dissipation. It reduces the unnecessary cables which results in much
lower crosstalk, signal noise and improves airflow
- Powerful Single +12V rail for superior load balancing and VGA
compatibility. All series supports VGA up to Nvidia Titan.
- Modular cable designs for better cable management
- Custom DC-DC module design offers higher efficiency and
voltage stability
- Haswell C6/C7 support & zero load operation
- 80 PLUS Bronze certified: up to 88% efficiency @ typical
load
Intelligent 120mm fan
The intelligent 120mm fan speed controller with honey combo mesh increases
airflow for better heat dissipation.
Modular Cable System
Only use the cables you need, no unnecessary cable mess! Building a clean and
tidy system with excellent airflow has never been this easy and convenient.
Double Layer EMI Filter
It ensures low levels of electromagnetic interference
Custom DC-DC Module
Our custom 12V to 3.3V and 5V module design offers notably higher efficiency
and voltage stability than other designs.
Unique 3D Circuit Design
It offers high efficiency, improves the heat dissipation and reduces the
unnecessary cables which results in much lower crosstalk, signal noise.

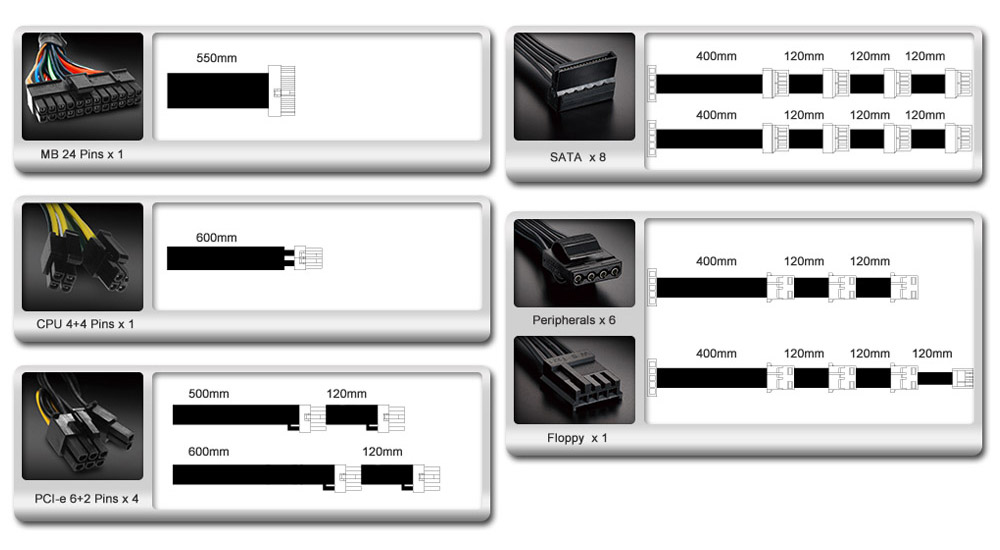

Connectors

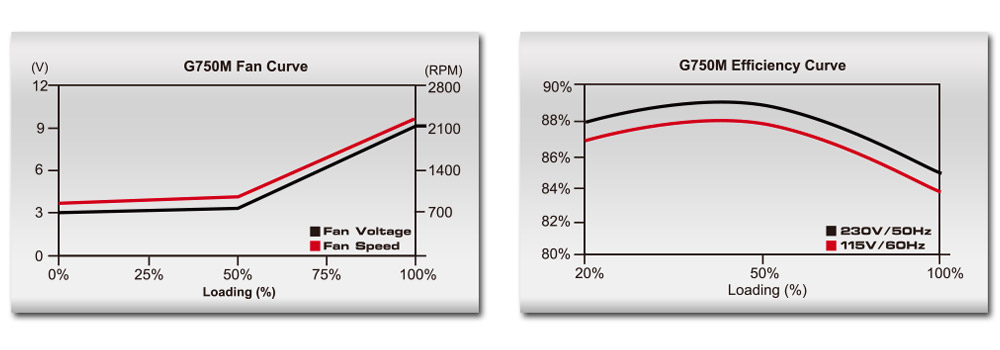

Performance
AC Input / DC Output
More Information
- Synchronous rectification & DC to DC design to provide much better
efficiency at lower loading

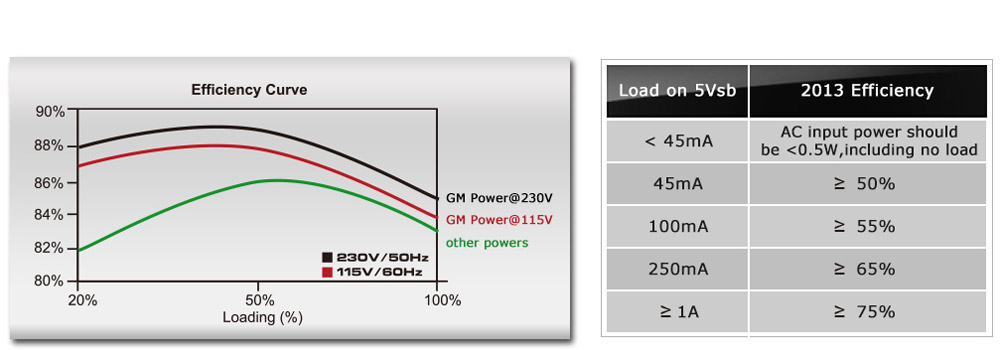

- Adoption of dual Inlet control IC to meet efficiency requirement of Erp
2013
Specifications
|
Model |
: |
RS750-AMAAB1-xx |
|
Type |
: |
Intel Form Factor ATX
12V V2.31 |
|
Dimension (W x L x
H) |
: |
150 x 140 x 86mm / 5.9
x 5.5 x 3.4 inch |
|
Input
Voltage |
: |
100-240Vac (Full
Range) |
|
Input
Current |
: |
12 -
6A |
|
Input Frequency
Range |
: |
60 -
50Hz |
|
PFC |
: |
Active PFC (>0.9
typical) |
|
Power Good
Signal |
: |
100-500ms |
|
Hold Up
Time |
: |
>16ms |
|
Efficiency |
: |
85%
Typically |
|
MTBF |
: |
>100,000
Hours |
|
Protection |
: |
OVP/UVP/OPP/OTP/SCP/OCP |
|
Output
Capacity |
: |
750W |
|
Operation
Temperature |
: |
0~40C |
|
Regulatory |
: |
CE/FCC/UL/TUV/RCM/EAC/BSMI/CCC |
|
Certifications |
: |
80 Plus
Bronze |
|
Connector |
: |
MB 20+4 Pin x
1 |
|
: |
CPU12V 4+4 Pin x
1 |
|
: |
PCI-e 6+2 Pin x
4 |
|
: |
SATA x
8 |
|
: |
4Pin Peripheral x
6 |
|
: |
4Pin Floppy x
1 |
