All stock codes associated to this product
CP9020105AU, CP-9020105-AU, CP9020105AU(SF600), CP-9020105-AU(SF600), 843591068994
Overview
The small form factor power supply for your big ideas.
SF Series power supplies bring legendary Corsair performance and reliability
to the SFX small form factor standard. They have the features found in full-size
high performance power supplies, with certification for 80 PLUS Gold efficiency,
superior voltage regulation, Zero RPM mode for virtually silent operation, and
105C All Japanese capacitors for better reliability.
80 PLUS Gold certified
If youre building a small system thats going to see a lot of use, low heat
generation and high efficiency are essential. SF Series power supplies operate
at greater than 90% efficiency at 50% load on 115V circuits.
SFX Form Factor
SF Series is designed to the SFX power supply specification for high
performance small form factor systems.
Fully modular cable set
The detachable DC cables make builds and upgrades easy, with clean,
great-looking results. Use only the power cables you need lets you save valuable
internal space and can improve system airflow.
100% All Japanese 105°C capacitors
Premium internal components ensure solid power delivery and long term
reliability.
Zero RPM Fan Mode
Building a silent PC SF Series power supplies are so efficient that the fan
doesnt need to spin at low to medium loads.
Specifications
|
Package
contents |
SF Series
High-Performance SFX Power Supply |
|
|
AC power
cord |
|
|
DC Modular cable
set |
|
|
DC Modular cable
storage bag |
|
|
Cable
ties |
|
|
Corsair case
badge |
|
|
User
Manual |
|
|
|
|
Features |
92mm thermally
controlled fan with Zero-RPM mode |
|
|
80 PLUS Gold
efficiency, delivering 90% energy efficiency at real world load
conditions. |
|
|
Fully modular cables
for easy installation, less clutter, and helps maximize airflow through
your computers chassis. |
|
|
Engineered to meet
maximum power output at a 40C temperature rating. |
|
|
Over-voltage
protection, under-voltage protection, short circuit protection, over power
protection, and over temperature protection provide maximum safety to your
critical system components. |
|
|
Safety and Agency
Approvals: FCC, ICES, CE, UL, CUL, RCM, TUV, CB, CCC, BSMI, EAC, RoHS,
WEEE, RoHS (China), KC |
|
|
|
|
Compatibility |
6th generation Intel
Core processor Ready (Intel Skylake and Z170
motherboards) |
|
|
ATX12V v2.4 and EPS
2.92 standards and is backward compatible with ATX12V 2.2, 2.31 and ATX12V
2.01 systems |
|
|
SFX PSU is compatible
with SFX cases. To use with an ATX case, an SFX to ATX bracket (not
included) is required |
|
|
|
|
Warranty |
12 Months |
|
Weight |
.86kg |
|
MTBF |
100,000
hours |
|
80
Plus |
Gold |
|
Power |
600
Watts |
|
Fanless
mode |
Yes |
|
Continuous output
rated temperature (C) |
40C |
|
|
|
|
Dimensions |
100mm x 63mm x
125mm |
|
ATX
Connector |
1 |
|
EPS
Connector |
1 |
|
Four Pin Peripheral
Connector |
1 |
|
PCI
Connector |
2 |
|
SATA
Connector |
4 |
|
Plug
Type |
NA |
|

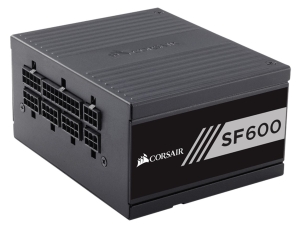

Corsair SF600 SFX Power Supply |
|
AC Input
Rating |
DC Output Rating |
|
AC Input: 100V -
240V |
DC Output |
+3.3V |
+5V |
+12V |
-12V |
+5Vsb |
|
Current: 10A -
5A |
Max Load |
20A |
20A |
50A |
0.3A |
2.5A |
|
Frequency: 47Hz -
63Hz |
Maximum Combined Wattage |
120W |
600W |
3.6W |
12.5W |
|
Total Power: 600W |
