DP-ITX-TST-NSW | Deepcool Tristellar Mini-ITX Case - NO PSU, Black

Overview

• Three independent cabins for Motherboard, VGA Card and PSU/HDD separately, offering the most efficient cooling solution for your PC
• Support one ultra-long (max 320mm) and ultra wide (3 PCI Slots) VGA Card vertical installation
• Aluminum shell and striking paint provide a better cooling performance &visual experience, and which greatly reduce the weight of the case.

Description

TRISTELLAR SW disrupts the traditional concept of a PC case, splits components into three cabins; The three high hardness V" shape metal frames and full aluminum shells ensure TRISTELLAR SW has a reliable and solid structure. In addition, breakthrough has been created by the amazing side window design, which offers a perfect GPU visible effect. The case supports the latest gaming configuration, it is an excellent choice for gamer or PC builder who want a case with both high performance and aesthetics.

Graphic Card Cabin

This cabin supports full-length (up to 320mm) graphic cards, which is connected to motherboard by a short PCI-E extension cable. Included 90mm case fan in front provides sufficient airflow to the cabin, next to graphic card slot, there are three 2.5"SDD bays with hot plugging (SATA) ports. In addition, breakthrough has been created by the amazing side window design, which offers a perfect GPU visible.

Motherboard Cabin

Motherboard cabin supports Mini-ITX motherboard with either Intel or AMD base; low profile (up to 85mm) CPU air cooler or 120mm radiator, it allows to install 120mm case fan as long as radiator is not installed.

Power Supply Cabin

PSU cabin is capable to accommodate 160mm length PSU, it includes two 3.5" HDD bays with hot plugging (SATA) ports, and supports one 5.25" slot-load optical drive installation.

Individual Air Duct System

Tristellar SW disrupts the traditional concept of a PC case, splits components into three cabins. Thanks to the individual design, the Tristellar SW is able to isolate the hottest components into separate compartments and provide a better cooling performance for the build.

Aluminum shell and striking paint provide a better cooling performance & visual experience, and which greatly reduce the weight of the case.

Thanks to the Tristellar SW steel construction, the whole case becomes remarkably sturdy and which is connected by the PCI-E in the central of 'V' shape frames.

Equipped with the unique knurl screw and the high quality surface painting, offering a perfect aesthetic effect.

The unique triangular vents greatly increase the ventilation rate and improve the cooling performance.

Features

• Three independent cabins for Motherboard, VGA Card and PSU/HDD separately, offering the most efficient cooling solution for your PC
• Support one ultra-long (max 320mm) and ultra wide (3 PCI Slots) VGA Card vertical installation
• Aluminum shell and striking paint provide a better cooling performance &visual experience, and which greatly reduce the weight of the case.
• Total 5pcs hot plugging (SATA) port (2*3.5'HDD/3*2.5' SSD)
• 2 *USB 3.0
• Support tray-load Optical Disk Driver installation
• Pre-installed one 90mm black fan in the VGA cabin
• Support water cooling system installation (120mm radiator)
• Support standard ATX PSU with 150*160*86mm Max
• Fully black interior
• Equipped with dust filter for PSU.
• Support cable management
• Side window makes GPU visible

Specifications

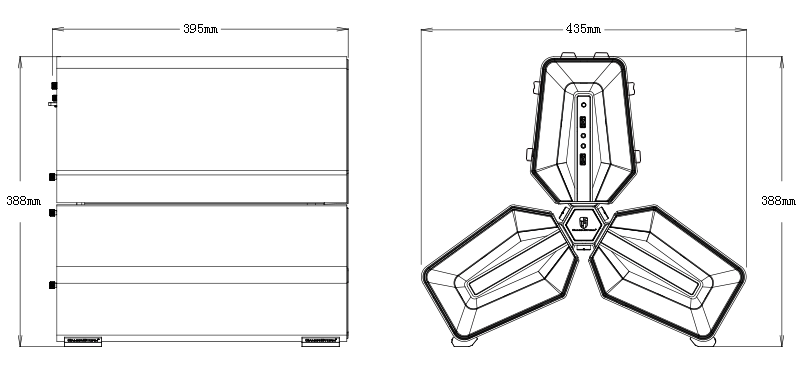

Product Dimension
