Overview

The CS84U PS/2-USB KVM Switch is a desktop control unit that allows users to access four computers from a single KVM console (PS/2 or USB keyboard and mouse, and VGA monitor). In addition, CS84U comes with ATEN's new Video DynaSync™ technology, which eliminates boot-up display problems and optimizes resolution.

Setup is fast and easy; simply plug cables into their appropriate ports. There is no software to configure, no installation routines, and no incompatibility problems. Since the CS84U intercepts keyboard input directly, it will work on multiple computing platforms.

Compatible Accessories

KVM Cables

  • 2L-5201U - Length: 1.2m
  • 2L-5202U - Length: 1.8m
  • 2L-5203U - Length: 3m
  • 2L-5205U - Length: 5m
  • 2L-5301UP - Length: 1.2m
  • 2L-5302UP - Length: 1.8m
  • 2L-5303UP - Length: 3m

Compatible Products

KVM Extenders

  • CE770
  • CE750
  • CE250A

Package Contents

  • 1x CS84U PS/2-USB KVM Switch
  • 4x Custom KVM Cable Sets
  • 1x User Instructions

Patent No.

US 6464197 , US 6564275

Features

  • One PS/2-USB VGA console controls four VGA interface computers.
  • Dual Interface - supports computers with PS/2 or USB keyboards and mice
  • Computer selection via front panel pushbuttons, hotkeys, and mouse
  • Multiplatform support - Windows, Linux, Mac, and Sun
  • Superior video quality - 2048 x 1536; DDC2B
  • Video DynaSync - Exclusive ATEN technology eliminates bootup display problems and optimizes resolution when switching between ports
  • Console mouse port emulation/bypass feature supports most mouse drivers and multifunction mice
  • Complete keyboard emulation for error-free booting
  • Mac/Sun keyboard support and emulation*
  • Multilingual keyboard mapping - supports English, Japanese, and French keyboards
  • Gaming keyboard support
  • Auto Scan Mode for monitoring all computers
  • Firmware upgradable
  • Non-powered

    * 1. PC keyboard combinations emulate Mac/Sun keyboards
    2. Mac/Sun keyboard work only with their own computers

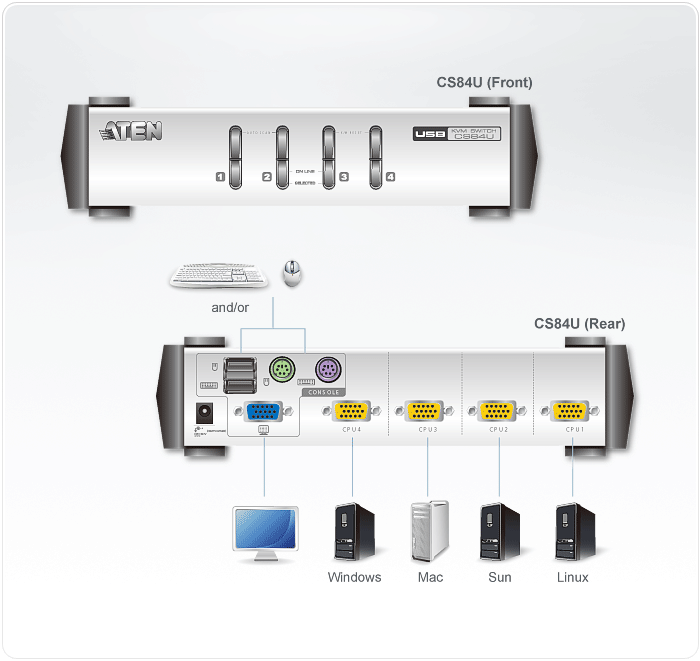

Diagram

CS84U Diagram

Specifications

Computer Connections

4

Port Selection

Hotkey, Pushbutton, USB Mouse

Connectors

Console Ports

2 x USB Type A Female (Black)

1 x 6-pin Mini-DIN Female (Purple)

1 x 6-pin Mini-DIN Female (Green)

1 x HDB-15 Female (Blue)

KVM Ports

4 x SPHD-18 Female (Yellow)

Power

1 x DC Jack

Switches

Selected

4 x Pushbutton

LEDs

Online

4 (Orange)

Selected

4 (Green)

Emulation

Keyboard / Mouse

PS/2, USB

Video

2048 x 1536 @ 60 Hz; DDC2B

Scan Interval

3, 5, 10, 20 secs. (5 secs. default)

Power Consumption

DC 5V, 1.2W

Environmental

Operating Temperature

0 - 50C

Storage Temperature

-20 - 60C

Humidity

0-80% RH, Non-condensing

Physical Properties

Housing

Metal

Weight

0.77 kg ( 1.7 lb )

Dimensions (L x W x H)

21.00 x 8.80 x 5.55 cm

(8.27 x 3.46 x 2.19 in.)

* The specification and pictures are subject to change without notice.

* All trademarks and logos are the properties of their respective holders.
