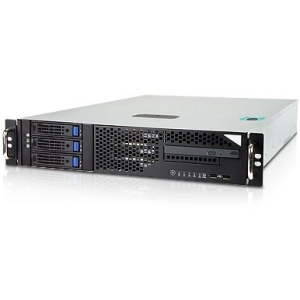

Inwin IW-R200-01 500W 2U Server Chassis
  • 500W PSU, 3xCooling Fan, 26" King Slide Rail, External Drive Bay: 2x5.25" or 3x3.5", 1xSlim ODD+FDD, Internal Drive Bay: 3x3.5"

IMG 1 of 1
No Longer Available
Part Number:
411440
(?) Brand:
Inwin
Manuf No:
IW-R200-01
IWR20001
Shipping Weight:
17 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
IWR20001, IW-R200-01, 3012369

Overview

  • Single or redundant power supply options
  • Utilized 5.25" x 2 optical bays supported In Win storage kits
  • Supports low profile or riser card rear window
  • Tool-free design top cover for easy maintenance
  • Supports EEB (12" x 13") M/B

Inside View

Accommodates up to external: 5.25" x 2, Slim ODD x 1, Slim FDD x 1, internal: 3.5" x 3

Flexible 5.25" ODD cage for versatile storage configuration

Supports single or redundant power supply (Watt up to 500W)

Supports 80 x 25 mm PWM middle fan x 3

Intrusion switch

Tool-free top cover

Optional railing system

Specifications

Standard

EIA-RS310D

M/B Form Factor

ATX (12" x 9.6"), CEB (12" x 10.5"), EEB (12" x 13")

Dimensions (D x W x H) w/o Front Panel

670.45 x 482.6 x 88.9 mm

(26.4" x 19" x 3.5")

Drive Bay

External: 5.25" x 2 or Hot-Swap 3.5" x 3 or 2.5" x 3, Slim ODD x 1, Slim FDD x 1

Internal: 3.5" x 3

Power Supply

Supports

 Form Factor: 2U Single or 2U 1+1 Redundant

 Watt up to 500W

Indicator

Power Status, HDD, LAN Activity LEDs

Front Control Panel

Power Switch, System Reset, USB 2.0 x 2

Chassis Security

Intrusion Switch

Cooling Fan

Supports 80 x 25 mm PWM middle fan x 3

Expansion Slot

Low Profile PCI slot x 7 or Full Height PCI slot x 3 (via riser card)

Material

Material: SGCC

Thickness: 1.2 mm

Packaging Dimensions (D x W x H)

843 x 594 x 244 mm

Shipping Information

Net Weight: 7.47 kg

Gross Weight: 15.34 kg

Cubic Feet: 4.314

Container Info

Single Packing: 20':200pcs, 40':400pcs, 40'H:450pcs

No additional files, specification sheets, guides or documentation found for product.

Warranty: 12 Month Return To Base
