All stock codes associated to this product
T3WRed3, T3-W Red 3, SKT3WRD3, SK-T3-W-RD3
Overview
Colorful Case, Not Just for Office PCs

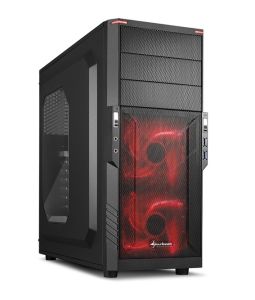

Proven design at an attractive price: The Sharkoon T3-W, in the Window
version, impresses through its ideal functionality, easily accessible controls,
modern connectivity options and offers an inside look of all installed
components. Thanks to the simple design of the front panel, the ATX case is
ideally suitable for office PCs or discreet gaming PCs. Three different color
versions are available in either red, blue and green with matching color LEDs
and 120 mm LED fans.
Lots of Space for Components
The broad side panels of the T3-W offer enough space for the easy
installation of tower coolers with a height of up to 16 cm. Graphics cards with
a maximum length of up to 31 cm can be installed; up to 38.5 cm with the middle
HDD cage removed. Maximum length for power supplies is 25 cm, plus a suitable
dust filter is pre-installed on the case bottom. The case also offers a useable
CPU cooler cutout, two water cooling openings as well as a convenient cable
management system.
Adjustable Fan Configuration
For efficient airflow inside the case, two 120 mm LED fans are pre-installed
within the front panel. An additional 120 mm fan can be mounted to the rear
panel to further enhance airflow inside the case.
Modern Front Connectors
Two USB 3.0 as well as two Audio ports in the front panel provide quick
access to connect peripheral devices. A power button and reset button can also
be found in the front.
Drive Bays
The ATX case offers three 5.25" drive bays for optical drives, with two drive
bays being installed tool-free. By means of the enclosed 5.25" to 3.5" bay cover
and mounting frame, a 3.5" card reader can, for example, be quickly and easily
installed into one of the three 5.25" drive bays. Internally, three 3.5" hard
drives can be easily installed tool-free. Up to three 2.5" HDD/SSDs can be
fitted into the middle HDD cage, while there is also space for an additional
2.5" HDD/SSD on the bottom of the case.
Specifications
|
General: |
|
|
Form
Factor: |
ATX |
|
Expansion
Slots: |
6 |
|
Water Cooling
Openings: |
2 |
|
Interior
Painting: |
Yes |
|
Tool-free Devices
Installation: |
Yes |
|
Cable Management
System: |
Yes |
|
Side
Panel: |
Acrylic |
|
Color
Versions: |
Blue, Green,
Red |
|
Weight: |
4.5
kg |
|
Dimensions (L x W x
H): |
44.5 x 20.0 x 43.0
cm |
|
I/O: |
|
|
USB 3.0
(Front): |
2* |
|
Audio
(Front): |
Yes |
|
Drive
Bays: |
|
|
5.25": |
2 |
|
5.25" or 3.5" or
2.5": |
1 |
|
5.25" to 3.5" Bay
Cover: |
1 |
|
3.5": |
3 |
|
2.5": |
4 |
|
Fan
Configuration: |
|
|
Front
Panel: |
2x 120 mm LED Fans
(Pre-Installed) |
|
Rear
Panel: |
1x 120 mm Fan
(Optional) |
|
Compatibility: |
|
|
Mainboard: |
Mini-ITX, Micro-ATX,
ATX |
|
Max. Length Graphics
Cards: |
31.0/38.5
cm** |
|
Max. Height CPU
Cooler: |
16.0
cm |
|
Max. Length Power
Supply: |
25.0
cm |
|
Package
Contents: |
|
|
T3-W |
|
Accessory
Set |
|
Note: |
|
|
* internal 19-pin
mainboard connector incl. USB 2.0 plug |
|
** with middle HDD cage
removed |
|
EAN
Code: |
|
|
Red:
4044951017546 |
