Overview

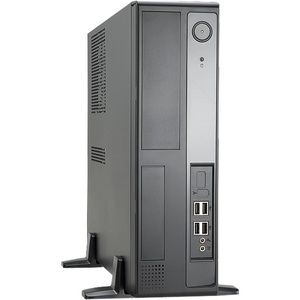

A small 11.5L SFF chassis with optimal thermal and acoustic performance without additional system fan.

  • Excellent Thermal Solution
  • High Compatibility
  • Multi-Enjoyment
  • New PPCT Excellent Thermal & Acoustic Solution

Design Philosophy

A small 11.5L SFF chassis with optimal thermal and acoustic performance without additional system fan.

Excellent Thermal Solution

The innovative partition plate cooling technology (PPCT) maximizes performance while providing a quiet and cooling environment.

High Compatibility

It is compatible with standard desktop components, which makes the installation easier and provides a great expandability when needed.

Multi-Enjoyment

Designated Infrared Receiver position to support Media Center and optional internal amplifier.

Detachable Drive Bay Cage

For easy installation

Tool-Free



Optional screwless designs - ODD/FDD/HDD bays, expansion slots, and top cover clips for easy installation

New PPCT Excellent Thermal Solution

  • New features of the 2nd generation of PPCT technology include removable air duct and an enlarged adjustable vent for various CPU positions.
  • Supports LGA1155 Socket and downward compatible (LGA775)

Small Form Factor Design

  • 11.5 Liters

Intel Lanyu Ref. Design

  • Optimal thermal and acoustic performance without additional system fan

Front Supports

  • USB 2.0 x 4
  • HD Audio
  • Optional USB 3.0 x 2

Tool Free

  • Screwless ODD Bay Clips

  • Screwless FDD/HDD Bays Clips

  • Screwless Expansion Slots Clip

  • Screwless Top Cover Clips

Optional

  • 1394 (FireWire) x 1 - type A or B
  • IR
  • 80 mm Fan
  • Removable Air Filter
  • Chassis Intrusion Switch

3.5" to 2.5" HDD/SSD Bracket

  • Supports 2.5" x 2

  • Optional 60 mm Fan x 1 (60 x 60 x 10 mm, 2500rpm, 20dB Fan, 4 Pin Power Connector)

Key Lock Side Panel

The side panel is a theft deterrent key lock set for safeguarding your chassis equipment from unauthorized access.

Specifications

Case Size

SFF Slim Chassis

External Drive Bays

5.25" x 1, 3.5" x 1

Internal Drive Bays

3.5" x 2, 2.5" x 1

Front Ports

USB 2.0 x 4, HD Audio

Dimensions (H x W x D)

330 x 96 x 365 mm (11.5L)

w/o Front Panel

13" x 3.8" x 14.4"

MB Form Factor

Micro-ATX

I/O Expansion Slots

Low Profile Slot x 4

Power Supply

Standard TFX 12V

Thermal Solution

Removable Air Filter

80 mm Side Fan

Safety

Meets RoHS, CE and FCC Class B Requirements

Security

Padlock Loop / Kensington Slot

Optional

Intel Lanyu Ref. Design-New Partition Plate Cooling Tech (New PPCT)

IR IEEE 1394

Chassis Intrusion Switch

Screwless ODD/FDD/HDD Bays Clips

Screwless Expansion Slots Clip

Screwless Top Cover Clips

USB 3.0 x 2

3.5" to 2.5" HDD/SSD Bracket

Key Lock Side Panel
