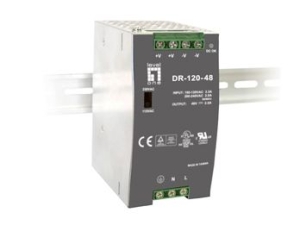

Level 1 POW-4840 DIN-Rail Industrial Power Supply - 48VDC/120W
  • Universal AC Input, Short Circuit, Overload/Over Voltage Protection,UL508, PoE Ready, Fanless

IMG 1 of 1
No Longer Available
Part Number:
412199
(?) Brand:
Level 1
Manuf No:
POW-4840
POW4840
Shipping Weight:
2 KG (Includes product packaging)
Estimate Shipping
Date Added:
22/9/2016
Details Files Images & Video
All stock codes associated to this product
POW4840, POW-4840, 3269301, 4015867183632

Overview

The POW-4840 is a DIN-rail industrial power supply is ruggedized, universal input voltage range and full compliance with all important safety and EMC standards. It can be operated at full load across an ambient temperature range of -10 to 60 Celsius degree without need of additional cooling to guarantee quality for harsh industrial environment. Moreover, this power unit has been designed specifically for use with Infinity Industrial PoE Ethernet series, also it meets the requirements for both PoE and PoE Plus as well.

Features

  • Universal AC Input at Full Range
  • Short Circuit, Overload / Over Voltage Protection
  • Fanless Design
  • Supports DIN-rail installation
  • UL508 approval

Speci­fication

Output DC                             48V



Output Current                     2.5A



Output Power                       120W



Input Voltage                        88-132VAC or 176-264VAC by switch, 248-370VDC



MTBF                                      15.6 years



Dimension & Weight            65.5 x 125.2 x 100mm @ 0.79kg



Operation Temperature       -10 to 60 Celsius



Operation Humidity             20 to 90% RH Non-condensing



Safety Approval                    IEC60068, EN60950-1, UL60950-1, EN55011,

                                                EN55022 (CISPR22) Class B, EN61000-3-2,

                                                EN61000-3-3, EN61000-4-2/3/4/5/6/8/11,

                                                EN61000-6-2, EN61204, EN55024



No additional files, specification sheets, guides or documentation found for product.

Warranty: 12 Month Return To Base

Full manufacturers warranty details are available at the manufacturers web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
