All stock codes associated to this product
CASETSRBFWH, CASE-TSRBF-WH, CADTSRBFWH, CAD-TSRBF-WH, 6933412712282
Overview
Description
Tesseract series computer case comes with multiple features. Its great
compatibility, simple design and uncompromising cooling performance have made it
a popular choice for many DIY enthusiasts and gamers. Up to six fan
installation, 310 mm graphic card space and various DIY features, what else
could you possibly ask for?
Great Compatibility for Installation

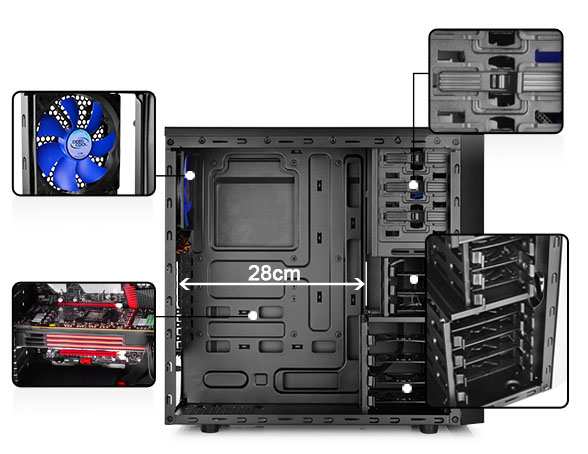

Innovative Design for DIY Usage
| ODD
installation tool-free design. |
| 2.5HDD/SDD
and 3.5 HDD installation tool-free design |
| Pre-installed
one DC fan on the rear. |
| High VGA card
and CPU cooler |
| Installation
compatibility. |
Ultimate Heat Ventilation Performance

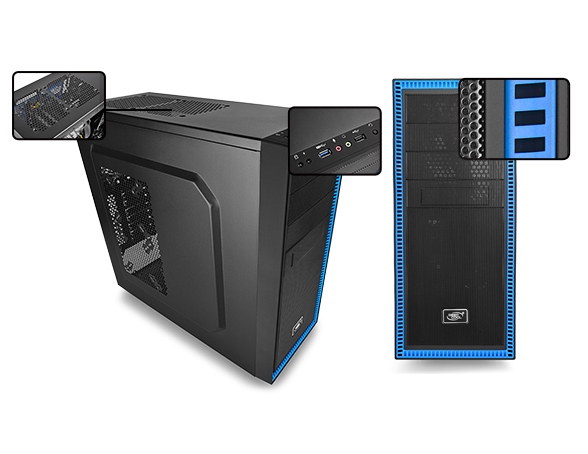

Top Panel Refinement
| Dust-filter
in the top panel. |
| USB ports,
plugholes and switches |
| on top panel
for easier operation. |
| Full
dust-filter in the interior panel. |
| Patented air
intake channel on the perimeter of the front panel. |
| High-quality
rubber coating. |
Maximum Space Capacity Management
PSU Protective Approaches
Backplate Cable Installation
- Multiple channels for supreme cable management.
Features
- Pre-installed one DC fan on the rear
- Dust-filter added at the top panel
- one USB 3.0 + one USB 2.0 Ports
- Fully black painted interior
- Patented air intake channel on the perimeter of the front panel
- Fully metal mesh design for the most cooling
- Enough room for long VGA card installation
- Rail slide HDD design for HDD easy installation
- Tool free installation design for ODD/HDD
- High quality rubberized coating for aesthetics
- 2 water cooling grommets on the rear
- Wide CPU cut out for CPU cooler mounting
- Bottom loaded PSU for effective cooling and large inner space
- Support cable management
- Support 120mm Liquid Cooler installation at rear
Specifications
|
Motherboards |
ATX/MICRO
ATX/MINI-ITX |
|
Materials |
SPCC+PLASTIC+RUBBER
COATING(Panel thickness: 0.7mm) |
|
Dimension
(LxWxH) |
472*210*454mm |
|
Net
Weight |
5.1kg |
|
5.25" Drive
Bays |
2 (all
tool-free installation) |
|
3.5" Drive
Bays |
4 (all
tool-free installation) |
|
2.5" Drive
Bays |
3 (all
tool-free installation) |
|
I/O
Panel |
1USB3.0/1USB2.0/Audio1/Mic1 |
|
Expansion
Slots |
7 |
|
Cooling
Fans |
Included: Rear:
1120mm DC fan; |
|
Optional: Front:
1120mm; |
|
Top:
2120mm; |
|
Side:
280/90/120mm |
|
Power Supply
Type |
ATX
PS2 |
|
CPU Cooler
Compatibility |
165mm |
|
VGA
Compatibility |
310mm |

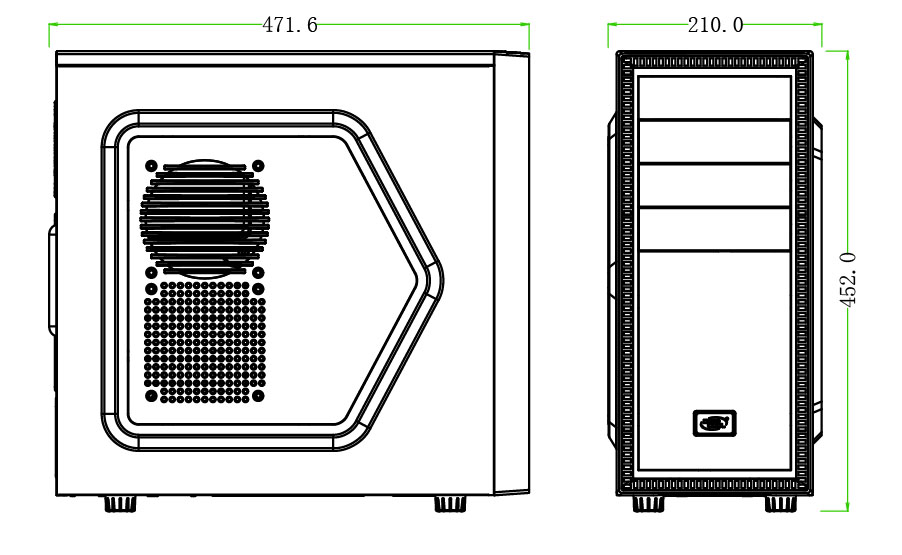

Product Dimension
