All stock codes associated to this product
RS600ACABD3AU, RS600-ACABD3-AU, PSCMTHUNDER600, PSCM-THUNDER600, 4719512037737
Overview
Single 12 V Power Rail
Tackling challenges from the most power-intensive peripherals head on,
solitary 12 V power rails provide ample power and strong resistance to any
overloading.
Double-Layer EMI Filter
Dual protection from electromagnetic interference, thus restraining noise and
interference for greater protection for you and your connections.
Intel Compliant
Intel ATX 12V v 2.3
Intelligent Fan Speed Control
Speed control makes the 120 mm fan adept for any user’s circumstances and
need.
Multiple Protection Design
Over Voltage Protection (OVP), Over Power Protection (OPP), Over Current
Protection (OCP), Short Circuit Protection (SCP).
Massive Bulk Capacitor
Producing hold times >14ms upon full loading
And More
- Multiple updated connectors for all types of interfaces (PCIe, SATA
etc.)
- High reliability with an MBTF of at least 100,000 hours of use.
- Three Year Warranty.
Specifications
|
Model |
RS-600-ACAB-D3 |
|
Type |
lntel ATX 12V
V2.3 |
|
Dimension (W x L x
H) |
150 x 140 x
86mm |
|
5.9 x 5.5 x 3.4
inch |
|
Input
Voltage |
180~264Vac |
|
Input
Current |
5A@230Vac |
|
Input Frequency
Range |
60~50Hz |
|
PFC |
Active PFC (>0.9
typical) |
|
Power Good
Signal |
100 ~ 500
ms |
|
Hold Up
Time |
>14ms |
|
Efficiency |
>85%@ Typical
Load |
|
MTBF |
>100,000
Hours |
|
Protection |
OVP / OCP / OPP / OTP /
SCP |
|
Output
Capacity |
600W |
|
Operation
Temperature |
0~40C |
|
Regulatory |
CE / GOST / C-tick /
KC |
|
Fan |
120mm
Fan |
|

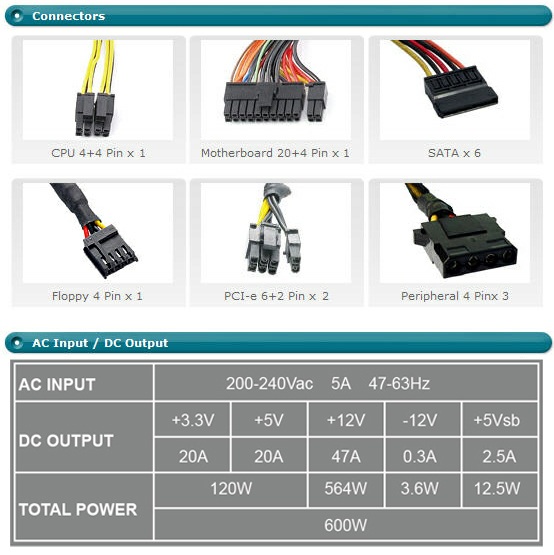

Connector |
MB 20+4 Pin x
1 |
|
CPU12V 4+4 Pin x
1 |
|
PCI-e 6+2 Pin x
2 |
|
SATA x
6 |
|
4Pin Peripheral x
3 |
|
4Pin Floppy x
1 |
