Overview

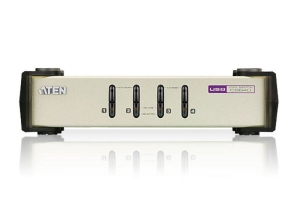

The CS84U PS/2-USB KVM Switch is a desktop control unit that allows users to
access four computers from a single KVM console (PS/2 or USB keyboard and mouse,
and VGA monitor). In addition, CS84U comes with ATEN's new Video DynaSync™
technology, which eliminates boot-up display problems and optimizes
resolution.
Setup is fast and easy; simply plug cables into their appropriate ports.
There is no software to configure, no installation routines, and no
incompatibility problems. Since the CS84U intercepts keyboard input directly, it
will work on multiple computing platforms.
Features
| One
PS/2-USB VGA console controls four VGA interface computers. |
| Dual Interface - supports computers with PS/2
or USB keyboards and mice |
| Computer selection via front panel pushbuttons,
hotkeys, and mouse |
| Multiplatform support - Windows, Linux, Mac, and
Sun |
| Superior video quality - 2048 x 1536; DDC2B |
- Video DynaSync™ - Exclusive ATEN technology
eliminates bootup display problems and optimizes resolution when switching
between ports
| Console mouse port
emulation/bypass feature supports most mouse drivers and multifunction
mice |
| Complete keyboard
emulation for error-free booting |
| Mac/Sun keyboard
support and emulation* |
| Multilingual keyboard mapping - supports
English, Japanese, and French keyboards |
| Gaming keyboard
support |
| Auto Scan Mode for
monitoring all computers |
| Firmware
upgradable |
| Non-powered |
* 1. PC keyboard combinations emulate Mac/Sun keyboards
2. Mac/Sun keyboard work only with their own computers

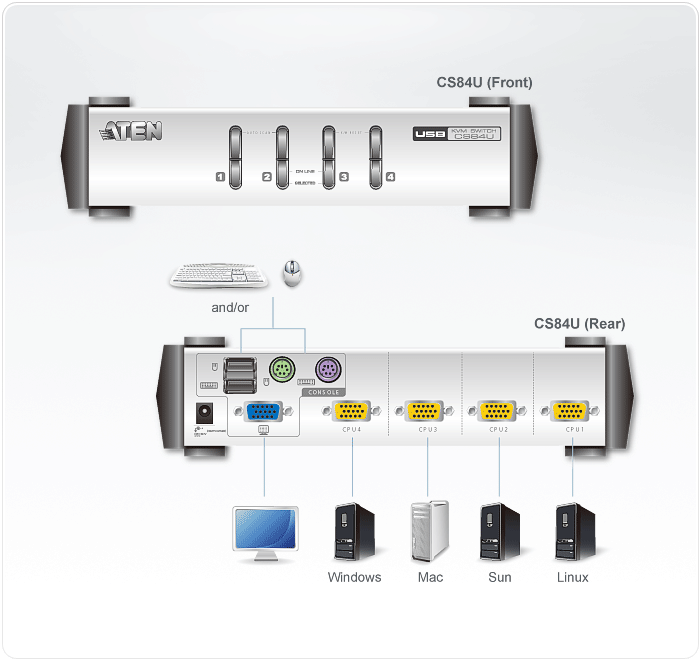

Diagram
Specifications
|
Computer
Connections |
4 |
|
Port
Selection |
Hotkey, Pushbutton, USB
Mouse |
|
|
|
Connectors |
|
Console
Ports |
2 x USB Type A Female
(Black) |
|
1 x 6-pin Mini-DIN
Female (Purple) |
|
1 x 6-pin Mini-DIN
Female (Green) |
|
1 x HDB-15 Female
(Blue) |
|
KVM
Ports |
4 x SPHD-18 Female
(Yellow) |
|
Power |
1 x DC
Jack |
|
Switches |
|
Selected |
4 x
Pushbutton |
|
|
|
LEDs |
|
Online |
4
(Orange) |
|
Selected |
4
(Green) |
|
|
|
Emulation |
|
Keyboard /
Mouse |
PS/2,
USB |
|
|
|
Video |
2048 x 1536 @ 60 Hz;
DDC2B |
|
Scan
Interval |
3, 5, 10, 20 secs. (5
secs. default) |
|
Power
Consumption |
DC 5V,
1.2W |
|
|
|
Environmental |
|
Operating
Temperature |
0 -
50C |
|
Storage
Temperature |
-20 -
60C |
|
Humidity |
0-80% RH,
Non-condensing |
|
|
|
Physical
Properties |
|
Housing |
Metal |
|
Weight |
0.77 kg ( 1.7 lb
) |
|
Dimensions (L x W x
H) |
21.00 x 8.80 x 5.55
cm |
|
(8.27 x 3.46 x 2.19
in.) |
