All stock codes associated to this product
DPITXTSTTW, DP-ITX-TST-TW
Overview

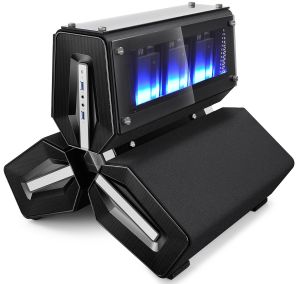

TRISTELLAR SW disrupts the traditional concept of a PC case, splits
components into three cabins; The three high hardness V shape metal frames and
full aluminum shells ensure TRISTELLAR SW has a reliable and solid structure. In
addition, breakthrough has been created by the amazing side window design, which
offers a perfect GPU visible effect. The case supports the latest gaming
configuration, it is an excellent choice for gamer or PC builder who want a case
with both high performance and aesthetics
Graphic Card Cabin
This cabin supports full-length (up to 320mm) graphic cards, which is
connected to motherboard by a short PCI-E extension cable. Included 90mm case
fan in front provides sufficient airflow to the cabin, next to graphic card
slot, there are three 2.5"SDD bays with hot plugging (SATA) ports. In addition,
breakthrough has been created by the amazing side window design, which offers a
perfect GPU visible.
Motherboard Cabin
Motherboard cabin supports Mini-ITX motherboard with either Intel or AMD
base; low profile (up to 85mm) CPU air cooler or 120mm radiator, it allows to
install 120mm case fan as long as radiator is not installed
Power Supply Cabin
PSU cabin is capable to accommodate 160mm length PSU, it includes two 3.5"
HDD bays with hot plugging (SATA) ports, and supports one 5.25" slot-load
optical drive installation.
Individual Air Duct System
Tristellar SW disrupts the traditional concept of a PC case, splits
components into three cabins. Thanks to the individual design, the Tristellar SW
is able to isolate the hottest components into separate compartments and provide
a better cooling performance for the build.
Aluminum shell and striking paint provide a better cooling performance &
visual experience, and which greatly reduce the weight of the case.
Thanks to the Tristellar SW steel construction, the whole case becomes
remarkably sturdy and which is connected by the PCI-E in the central of "V"
shape frames
Equipped with the unique knurl screw and the high quality surface painting,
offering a perfect aesthetic effect.
The unique triangular vents greatly increase the ventilation rate and improve
the cooling performance.
Features
- Three independent cabins for Motherboard, VGA Card and PSU/HDD separately,
offering the most efficient cooling solution for your PC
- Support one ultra-long (max 320mm) and ultra wide (3 PCI Slots) VGA Card
vertical installation
- Aluminum shell and striking paint provide a better cooling performance
&visual experience, and which greatly reduce the weight of the case.
- Total 5pcs hot plugging (SATA) port ( 2*3.5''HDD/3*2.5'' SSD)
- 2 *USB 3.0
- Support tray-load Optical Disk Driver installation
- Pre-installed one 90mm black fan in the VGA cabin
- Support water cooling system installation (120mm radiator)
- Support standard ATX PSU with 150*160*86mm Max
- Fully black interior
- Equipped with dust filter for PSU.
- Support cable management
- Side window makes GPU visible
Specifications
|
Materials |
SPCC + Toughened
glass (Panel thickness: 0.6mm; Cabin Cover thickness:
2mm) |
|
Product
Dimension |

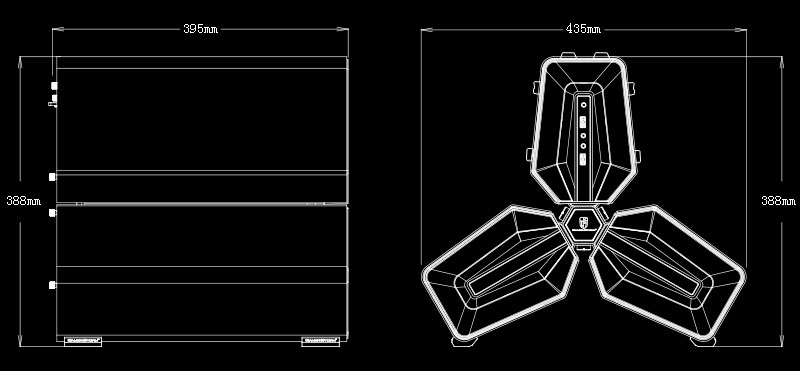

L395*W435*H388mm |
|
Package
Dimension |
L540*W465*H485mm |
|
Weight |
Net.: 10.55KG
Gross: 13.53KG |
|
5.25" Drive
Bays |
tray-load Optical Disk
Driver |
|
3.5" Drive
Bays |
2 (all tool-free
installation with hot plugging port) |
|
2.5" Drive
Bays |
3 (all tool-free
installation with hot plugging port) |
|
I/O
Panel |
2USB3.0/Audio1/Mic1 |
|
Expansion
Slots |
3 Slots (1
way) |
|
Cooling
Fans |
Included: 190mm Black
fan in the VGA cabin Optional:1120mm fan in the mainboard cabin if liquid
radiator not installed. (this fan should blow outward to ensure a good
cooling effect) |
|
Power Supply
Type |
ATX
PS2 |
|
CPU Cooler
Compatibility |
85mm
height |
|
VGA
Compatibility |
320mm |
|
Motherboards |
MINI-ITX |
