Overview

Tesseract series computer case comes with multiple features. Its great compatibility, simple design and uncompromising cooling performance have made it a popular choice for many DIY enthusiasts and gamers. Up to six fan installation, 310 mm graphic card space and various DIY features, what else could you possibly ask for?

Great Compatibility for Installation

Innovative Design for DIY Usage

  • ODD installation tool-free design.
  • 2.5HDD/SDD and 3.5 HDD installation tool-free design
  • Pre-installed two LED fan on the front and rear.
  • High VGA card and CPU cooler installation compatibility.

Ultimate Heat Ventilation Performance

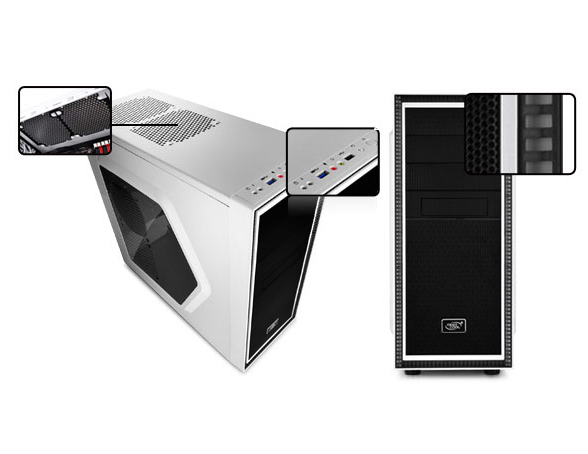

Top Panel Refinement

  • Dust-filter in the top panel.
  • USB ports, plugholes and switches on top panel for easier operation.
  • Full dust-filter in the interior panel.
  • Patented air intake channel on the perimeter of the front panel.
  • High-quality rubber coating.
  • Pre-installed Blue LED fan in the front panel.

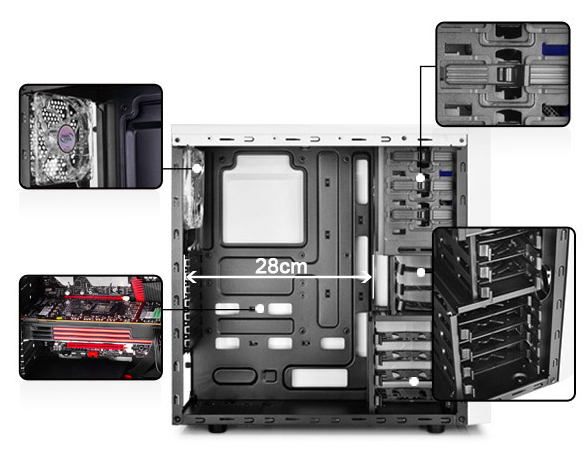

Maximum Space Capacity Management

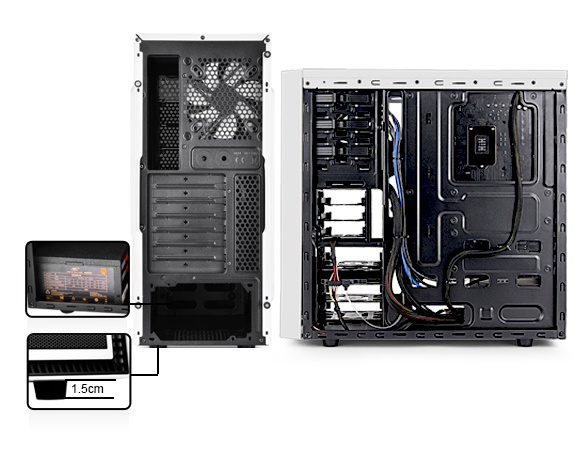

PSU Protective Approaches

  • Bottom located PSU for better space management.
  • Ground-lifted design for better air dynamic and cooling performance of PSU fan's air intake.

Backplate Cable Installation

  • Multiple channels for supreme cable management.

Features

  • Side window makes appearance more fashionable and shining
  • Anti-dust filters in top, bottom and front panel
  • One USB 3.0 + one USB 2.0 Ports
  • Fully black painted interior
  • Patented air intake channel on the perimeter of the front panel
  • Fully metal mesh design for the most cooling
  • Available room for long VGA card installation
  • Rail slide HDD design for HDD easy installation
  • Tool free installation design for ODD/HDD
  • Wide CPU cut out for CPU cooler mounting
  • Bottom loaded PSU for effective cooling and large inner space
  • Support cable management
  • Support 120mm Liquid Cooler installation at rear

Specifications

Motherboards

ATX/MICRO ATX/MINI-ITX

Materials

SPCC+PLASTIC (Panel thickness: 0.7mm)

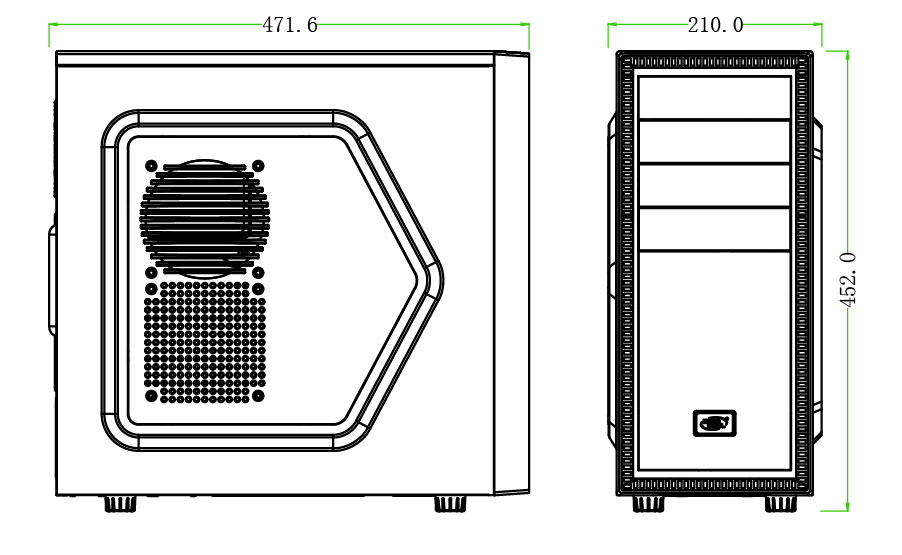

Dimension (LxWxH)

472*210*454mm

Net Weight

5.1kg

5.25" Drive Bays

2  (all tool-free  installation)

3.5" Drive Bays

4  (all tool-free  installation)

2.5" Drive Bays

3  (all tool-free  installation)

I/O Panel

1USB3.0/1USB2.0/Audio1/Mic1

Expansion Slots

7

Cooling Fans

Included:

Rear: 1120mm LED fan;

Optional:

Front: 1120mm;

Top: 2120mm;

Side: 2120mm

Power Supply Type

ATX PS2

CPU Cooler Compatibility

165mm

VGA Compatibility

310mm

 Product Dimension
