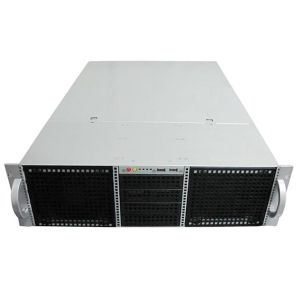

TGC TGC-39650G 3U Rackmount Server Chassis Case - No PSU
  • Supports mITX, mATX, ATX, CEB, EEB, 650mm Depth, 3.5" HDD Bays(14), ATX PSU Window, 80mm Fans(4), 60mm Fans(2), 120mm Fans(2)

IMG 1 of 3
No Longer Available
Part Number:
413280
(?) Brand:
TGC
Manuf No:
TGC-39650G
TGC39650G
Shipping Weight:
16 KG (Includes product packaging)
Estimate Shipping
Date Added:
13/10/2016
Details Files Images & Video
All stock codes associated to this product
TGC39650G, TGC-39650G, CAT39650G, CAT-39650G, 9341756011232

Overview

  • 3U rack mount design
  • 14 x 3.5 " Internal drive bays
  • Can be modified to have 10 x 3.5" Hot Swap etc.

Details



3U rack mount design, meets EIARS-310C standard. Usage: A/V system, DVR, Home Theater server and corporate server

  • 14 x 3.5 " Internal drive bays
  • Can be modified to have 10 x 3.5" Hot Swap, 4 x 3.5" internal drives using the TGC-H500 Caddy or other alternatives
  • OR 4 x 3.5 Internal drive bays, 6 x 5.25 bays
  • OR 9 x 3.5 internal drive bays, 3 x 5.25 bays
  • Support EEB (12" x 13"), CEB(12" x 10.5"), ATX (12" x 9.6"), Micro ATX (9.6" x 9.6"), Mini ITX (6.7" x 6.7") motherboard
  • 4 x 80mm ball bearing fans in middle wall, 2 x 60mm rear fans, 2 x 120mm front fan
  • Two front accessible USB ports
  • RoHS Compliant



Specifications



  • Drive Bay:                      Supports Fourteen Internal 3.5" drives
    • Alternative 1:            Can be modified to have 10 x 3.5" Hot Swap, 4 x 3.5" internal using the TGC-H500 Caddy
    • Alternative 2:            Can be modified to have 6 x 3.5" Hot Swap. 4 x 3.5" internal using the TGC-H500 Caddy
    • Alternative 3:            Can be modified to have 4 x 3.5 Internal drive bays, 6 x 5.25 bays
    • Alternative 4:            Can be modified to have 9 x 3.5 internal drive bays, 3 x 5.25 bays
  • Cooling Fans:
    • 4 x 80mm ball bearing fans in centre fan wall
    • 2 x 60mm rear fans
    • 2 x 120 mm front fan, mounted in the 5 x 3.5" internal caddy
  • Switch:                               1 x Power ON/OFF, 1 x System reset
  • Indicator:                           1 x Power ON/OFF, 1 x HDD, 2 x NETWORK
  • Connector:                         Two front accessible USB ports
  • Motherboard Compatibility:
    • EEB (12" x 13")
    • CEB(12" x 10.5")
    • ATX (12" x 9.6")
    • Micro ATX (9.6" x 9.6")
    • Mini ITX (6.7" x 6.7")
  • PCI Expansion:                   Accepts 7 full height PCI slots
  • Power Supply Options:       Standard ATX (Front mounted)
  • Dimensions (WxDxH):       19 x 25.5 x 5.1" (483 x 650 x 130.1mm)
  • Packing:                               Single box
  • Weight:                                12.3kg, 27lb (NET) 17.7kg, 39lb (GROSS)
  • Environment:
    • OperatingTemp.              0C ~55C (32F ~131F)
    • Non-OperatingTemp.   -20C ~60C (-4F ~140F)
    • Relative Humidity:         5% ~ 95% non-condensing
  • Vibration (5-500Hz):            1g (Operating), 2g (Non-Operating)
  • Shock:                                  10g (with 11ms duration, half sine wave) (Operating), 30g (Non-Operating)
