Overview

Rugged, Sleek and Simple

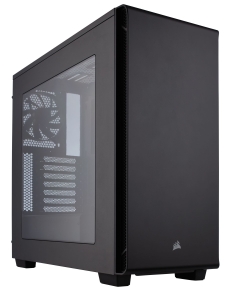

Carbide Series 270R is compact and engineered for building high-performance yet minimalist systems.

Builder-friendly internal layout

  • Simple and intuitive internal layout enables easy and quick building

Versatile cooling options

  • Room for up to a 360mm radiator in front, 240mm radiator at top, and 120mm radiator in the rear

Expansive storage space

  • Rugged construction steel drive trays provide ample of room for additional drives

Clean and minimalist exterior design

  • Unobstructive panels deliver an understated look

Built-in cable routing

  • Cable routing compartment enables effortlessly clean builds

Direct Airflow Path

  • Provides airflow to the hottest components without any interference from drive cages

Look Hot. Run Cold.

Take advantage of Direct Airflow Cooling as well as ample room for radiators in the front, top and rear. Keep your rig running cool and quiet with 270Rs enormous cooling potential.

Keep it Clean

Unobstructive exterior panels provide an understated look for an overall clean and minimalist design. The subtle cable routing compartment makes it even easier to achieve an effortlessly clean build.

Specifications

Warranty

Two years

Weight

7.28kg

Case Form Factor

Mid-Tower

Dimensions

509mm x 210mm x 460mm

Case Motherboard Support

Mini-ITX, MicroATX, ATX

Maximum GPU Length

370mm

Maximum CPU Cooler Height

170mm

Maximum PSU Length

225mm

Case Expansion Slots

7

Case Drive Bays

(x2) 3.5in

(x2) 2.5in

Case Material

Steel

Case Power Supply

ATX (not included)

External Connections

(x2) USB 3.0

(x1) Headphone Port

(x1) Microphone Port

Fan Mount Locations

Front: (x3) 120mm or (x2) 140mm

Top: (x2) 120/140mm

Rear: (x1) 120mm

Fans Included

Front: (x1) 120mm red LED

Rear: (x1) 120mm

Radiator Mount Locations

Front: 120/240/280/360mm

Top: 120/240mm

Rear: 120mm

Compatible Corsair Liquid Coolers

H55, H60, H75, H80i, H90, H100i, H105, H110
