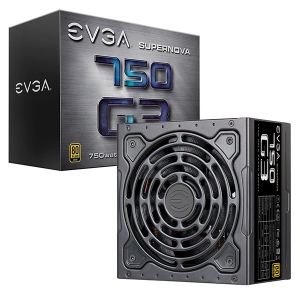

EVGA 220-G3-0750-X1 SuperNOVA 750 G3 Power Supply



Overview

Features

  • Unbeatable 10 Year Warranty and unparalleled EVGA Customer Support
  • 80 PLUS Gold certified, with 90% (115VAC) / 92% (220VAC~240VAC) efficiency or higher under typical loads
  • Highest quality Japanese brand capacitors ensure long-term reliability
  • Fully Modular to reduce clutter and improve airflow
  • NVIDIA SLI & AMD Crossfire Ready
  • Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection)
  • EVGA ECO Intelligent Thermal Control System elminates fan noise at low to medium loads
  • Hydraulic Dynamic Bearing Fan for ultra-quiet operation and increased lifespan.

Specifications

CABLE LENGTH











ATX CABLE

1x 600mm (m)









EPS CABLE

2x 700mm (m)









PCIE CABLE

2x 700mm, 2x 700mm, 850mm (m)









SATA CABLE

3x 550mm, 650mm, 750mm (m)









FOUR-PIN PERIPHERAL CABLE

1x 550mm, 650mm, 750mm, 850mm (m)









FLOPPY ADAPTER

1x 100mm









AC POWER

1x 1500mm (m)









MODULAR CABLE TYPE

Full





















CONNECTOR QUANTITY











24 PIN ATX

1x









EPS (CPU)

2x 8pin (4+4)









PCIE

6x 8pin (6+2)









SATA

9x









FOUR-PIN PERIPHERAL

4x









FLOPPY

1x





















POWER SPECS











AC Input

100 - 240 VAC, 10A, 50 - 60 Hz

Rail

+3.3V

+5V

+12V

+5Vsb

-12V

Max Output

24A

24A

62.4A

3.0A

0.5A

748.8W

120W

748.8W

15W

6W

Total

750W @ +50C













ADDITIONAL DETAILS











OPERATING TEMPERATURE

0° to 50° C









JAPANESE CAPACITORS

100%









ECO MODE

Yes









MTBF

100,000 Hours









NET WEIGHT

5 lbs









SIZE

85mm (H) x 150mm (W) x 150mm (L)









APPROVALS

TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS









Compliance with ErP Lot 6 2013 Requirement









FAN SIZE / BEARING

130mm Hydraulic Dynamic Bearing









No additional files, specification sheets, guides or documentation found for product.

Warranty: 10 years

Full manufacturers warranty details are available at the manufacturers (EVGA) web site.
