Aten CN8000A Single Port KVM over IP
Overview
The new generation ATEN CN8000A features superior video quality with HD
resolutions up to 1920 x 1200, LUC (Laptop USB Console) for easier KVM access,
user-friendly local console OSD and virtual media function without additional
cable. The CN8000A Single Port KVM over IP provides access control through
“over-IP” for conventional KVM switches that do not have built in over-IP
functionality. It allows system operators to monitor and access computers from
remote locations using standard Web browsers or Windows and Java based
application programs. The CN8000A connects to the Intranet either LAN or WAN
simply by using an industry standard Cat 5e/6 cable, and is connected to a local
KVM switch or server via a custom KVM cable.
The ATEN CN8000A uses the standard TCP/IP protocols for communications, it
allows the connected server or KVM switch to be accessed from any computer over
the internet – whether that computer is located down the hall, in other areas of
the country or branch offices in other parts of the world.
The CN8000A expands on previous models by providing a dedicated RS-232 port
for modem access or serial console management, a PON port to connect a ATEN PDU
device and USB 2.0 virtual media capability.
A Windows Client Viewer and a Java Applet Viewer are available for browser
access, while Windows Client AP and Java Client AP programs are provided for
non-browser GUI access. They allow IP connection and login from anywhere over
the internet. Inclusion of a Java-based client ensures that the CN8000A is an
independent platform, and is able to work with practically all operating
systems.
To meet advanced security requirements, the CN8000A’s Virtual Media function
allows a Smart Card / CAC reader on a user’s local system to be mapped to a
remote server. The CN8000A provides a fast, reliable and a cost effective way to
remotely access and manage widely distributed multiple computer
installations.
Package Contents
- 1x CN8000A Single Port KVM over IP
- 1x Custom KVM Cable Set
- 1x Custom Console Cable Set
- 1x Laptop USB Cable
- 1x Power Adapter
- 1x Rack Mounting Kit
- 1x User Instructions
Features
Hardware
- Provides over-IP capability to KVM switches that do not have built in
over-IP functionality *
- Supports PS/2,USB, Sun Legacy (13W3)** and serial (RS-232) connectivity
- Local console provides PS/2, USB keyboard and mouse support
- Supports multiplatform server environments: Windows, Mac, Sun, Linux and
VT100 based serial devices
- Virtual Media Support
- High video resolution – up to 1920 x 1200 @ 60 Hz- 24 bit color depth for
the local console; up to 1920 x 1200 @ 60 Hz with 24 bit color depth for
remote sessions
- Enhanced fps (frames per second) throughput for crisp responsive video
display
Note:
* Cascade-compatible KVM Switches include the following: CS9134, CS9138,
CS88A, CS1308, CS1316, CS1754*, CS1758*, CS1708A, CS1716A, ACS1208A, ACS1216A,
CS228*, CS428*, KH0116, KH2508, KH2516, KH1508, and KH1516
- Some of the CN8000A’s features may not be supported, depending on the
functionality of the cascaded KVM switch. (For example, some switches do not
support virtual media.)
- Some features found on the cascaded KVM switches may not be supported on
the CN8000A. (For example, the CS1754s audio.)
** Requires CV131A converter purchase
Management
- Laptop USB Console (LUC) – A dedicated USB port directly connects to
laptop for easy console operation
- Easy configuration through local console OSD
- Up to 64 user accounts – up to 32 users simultaneously share the control
- End session feature – administrators can terminate running sessions
- Event logging and Windows-based Log Server support
- Critical system events sent by email and SNMP trap; and Syslog
support
Remote Firmware upgradable
- Serial console management – serial terminal access. Access the CN8000A via
a built-in serial viewer, or via third party software (such as PuTTY) for
Telnet and SSH sessions
- PPP mode (modem) dial-in/dial back/dial out support for out-of-band, and
low bandwidth operation
- Port Share Mode allows multiple users to gain access to a server
simultaneously
- Local/Remote Share Mode to conveniently grant shared or exclusive console
privilege
- Integration with ATEN CC2000 Centralized Management Software
- Power Over the NET integration for remote power control
- DDNS (Dynamic Domain Name System)
- Export/import user account and configuration settings
- Enable/disable browser operation
- IPv6 capable
Easy-to-Use Interface
- Browser-based and AP GUIs offer a unified Multilanguage interface to
minimize user training time and increase productivity
- Multiplatform client support (Windows, Mac OS X, Linux, Sun)
- Multibrowser support (IE, Mozilla, Firefox, Safari, Opera, Netscape)
- Browser-based UI in pure Web technology allows administrators to perform
administrative tasks without pre-installed Java software package required
- Full-screen or sizable and scalable Virtual Remote Desktop
- Magic Panel
Advanced Security
- Smart Card /CAC Reader Support
- External authentication support: RADIUS, LDAP, LDAPS, and MS Active
Directory
- TLS 1.2 encryption to protect password when users log in
- Flexible encryption design allows users to choose any combination of
56-bit DES, 168-bit 3DES 256-bit AES, 128-bit RC4, or
- Random for independent KB/Mouse, video, and virtual media data encryption
- Support for IP/MAC Filter
- Supports password protection
- Private CA
Virtual Media
- Virtual media enables file applications, OS patching, software
installation and diagnostic testing
- Works with USB enabled servers in operating system and BIOS level
- Supports USB 2.0 DVD/CD drives, USB mass storage devices, PC hard drives
and ISO images
- Convenient to use without virtual media cable
Virtual Remote Desktop
- Video quality and video tolerance can be adjusted to optimize data
transfer speed; monochrome color depth setting, threshold and noise settings
for compression of the data bandwidth in low bandwidth situations
- Full screen video display or scalable video display
- Message Board for communication among remote users
- On-screen keyboard with multilanguage support
- Mouse Dynasync
- Exit Macros support
- BIOS-level access

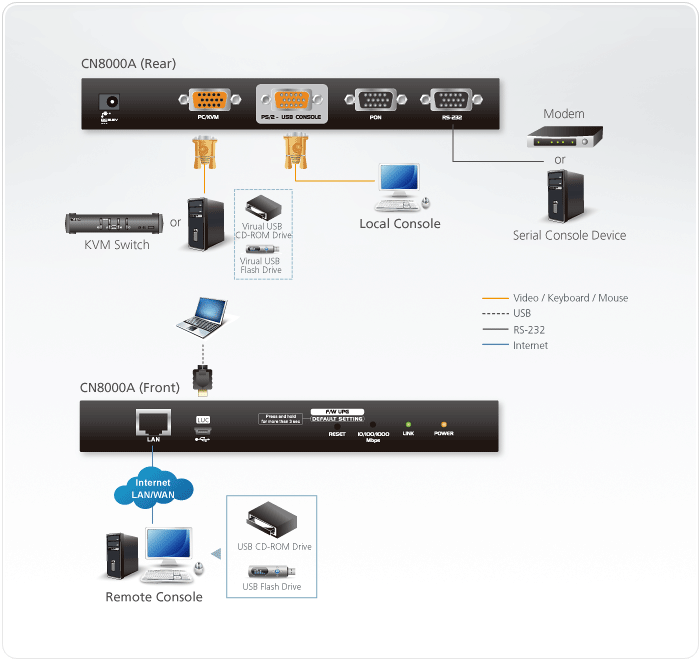

Diagram
Specifications
|
Connectors |
|
Console
Ports |
1 x SPHD-18 Male
(Yellow) |
|
KVM (Computer)
Ports |
1 x SPHD-18 Female
(Yellow) |
|
Laptop USB Console
(LUC) Port |
1 x USB Mini Type B
Female (Black) |
|
PON |
1 x DB-9 Male
(Black) |
|
RS-232 |
1 x DB-9 Male
(Black) |
|
LAN
Ports |
1 x RJ-45
Female |
|
Power |
1 x DC
Jack |
|
|
|
Switches |
|
Reset |
1 x Semi-recessed
Pushbutton |
|
|
|
LEDs |
|
Power |
1
(Orange) |
|
Link |
1
(Green) |
|
10/100/1000
Mbps |
1 (10: Orange / 100:
Orange+Green / 1000: Green) |
|
|
|
Emulation |
|
Keyboard /
Mouse |
USB;
PS/2 |
|
Video |
Up to 1920 x 1200 @ 60
Hz; DDC2B |
|
Power
Consumption |
DC5.3V,
7.26W |
|
|
|
Environmental |
|
Operating
Temperature |
0 - 50C
(CN8000A) |
|
0 - 40C (Power
Adapter) |
|
Storage
Temperature |
-20 -
60C |
|
Humidity |
0 - 80% RH,
Non-condensing |
|
|
|
Physical
Properties |
|
Housing |
Metal |
|
Weight |
0.49 kg ( 1.08 lb
) |
|
Dimensions (L x W x
H) |
20.00 x 8.14 x 2.50
cm |
|
(7.87 x 3.2 x 0.98
in.) |
