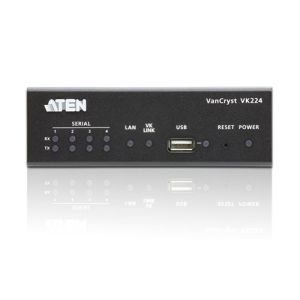

ATEN VK224 4-Port Serial Expansion Box
  • Bi-Directional RS-232/422/485 Port(4), 1-Port 10/100Base-T RJ45, USB Type-A

IMG 1 of 3
Our Price:
$777.80
RRP:
$1,035.10
You Save:
$257.30
or quickly purchase this product
Backorder
Part Number:
421077
(?) Brand:
ATEN
Manuf No:
VK224
Shipping Weight:
1.5 KG (Includes product packaging)
Estimate Shipping
Date Added:
8/6/2017
Details Files Finance Images & Video

Enter email address to be notified when this item is available again

All stock codes associated to this product
VK224, KVAVK224, KVA-VK224, 4719264643682

Overview

The VK224 4-Port Serial Expansion Box provides four additional bi-directional RS-232 / 422 / 485 serial ports for a flexible expansion of the ATEN Control System. This allows users to control additional serial devices in an environment where more serial devices are required. With the advantage of an Ethernet-based connection, the expansion box can be easily connected to the VK2100 Control Box via a LAN connection from a variety of locations across a network.

ROHS Weee

Features

  • Provides 4 bi-directional RS-232/422/485 serial ports to expand the ATEN Control System.
  • Up to eight VK224 expansion boxes can be added to a single VK2100 Control Box.
  • Flexible Deployment: Connects to a VK2100 Control Box via an Ethernet connection.
  • ID Switch pairs the VK224 with a controller to instantly configure the network settings.
  • Supports Power over Ethernet (PoE) or DC power supply.
  • Firmware upgradable through USB or Web interface.

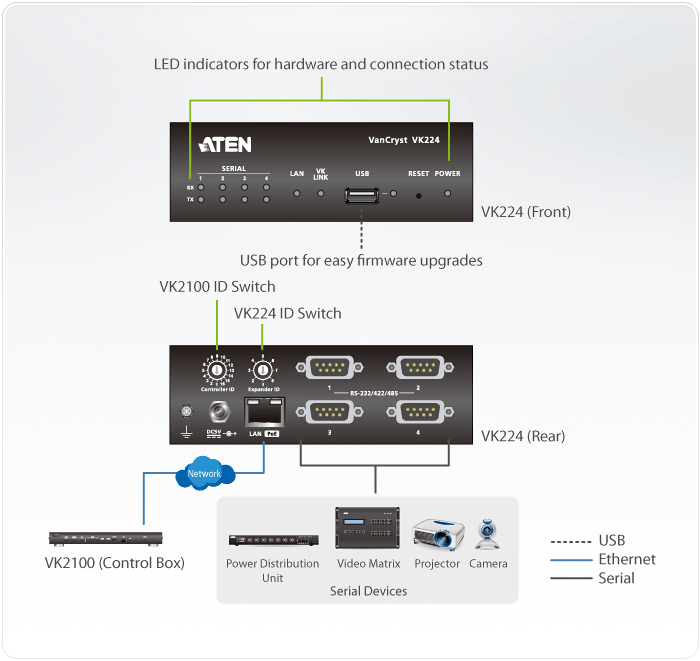

Diagram

Specifications

Interfaces

Serial

 4 x Programmable Bi-directional RS-232/422/485 Port

(4 x DB9 Male Connector, configurable via pin assignments);

  Baud Rate: 300 to 115200 (default: 9600);

  Data Bit: 8 (default) or 7;

  Stop Bit: 1 (default) or 2;

  Parity: None (default), Even or Odd;

  Flow Control: None (default) RTS/CTS

RS-232

RS-422

RS-485

Pin2: RX

Pin 1:RX-

Pin3:D+

Pin3: TX

Pin 2: RX+

Pin 4:D-

Pin 5: GND

Pin 3: TX+

Pin 7: RTS

Pin 4: TX-

Pin 8: CTS

Pin 5: GND

Ethernet

 1 x RJ-45 Female, 10/100Base-T

 Supported Protocol: ICMP, TCP/IP, DHCP, HTTPS, SSH

 DHCP-enabled. The following default IP settings will be used if no IP is assigned within 30 seconds:

IP: 192.168.0.60

Subnet Mask: 255.255.255.0

Switches

Controller ID

1 x 16-segment Switch

Expander ID

1 x 8-segment Switch

Reset Button

1 x Semi-recessed Pushbutton

USB

1 x USB Type A

Power

Consumption

5V 1.2A

Environmental

Operating Temperature

0  50C

Storage Temperature

20  60C

Humidity

0 - 80% RH, Non-Condensing

Physical Properties

Housing

Metal

Weight

0.45 kg ( 0.99 lb )

Dimensions (L x W x H)

13.00 x 7.58 x 4.20 cm

(5.12 x 2.98 x 1.65 in.)

Package Contents

1x VK224 4-Port Serial Expansion Box

1x Power Adapter

1x Mounting Kit

1x User Instructions
