Overview

Add Another Layer of Realism To Your Setup

Upgrade your flight sim experience with the Logitech G Flight Instrument Panel. A colorful 3.5-inch LCD screen seamlessly integrates into your favorite flight sim software. The Instrument Panel automatically updates and reacts to software events, giving you accurate, real-time access to important flight and aircraft information.

Features

15 Different Readouts in OneCompact Box

Easy transitions between displays

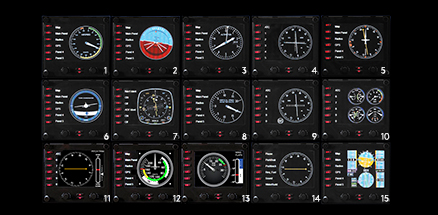

Toggle between 15 different displays, or utilize additional units to create a larger configuration which simultaneously displays multiple panels. Twin dials and a set of hotkeys simplify switching between various readouts. Displays include:

  • Attitude Indicator
  • Heading Indicator
  • Turn/Slip Indicator
  • Vertical Speed Indicator
  • Altimeter
  • Airspeed Indicator
  • VHF Omnidirectional Radio (VOR) 1
  • VHF Omnidirectional Radio (VOR) 2
  • Primary Flight Display (PFD)
  • Airborne Direction Finder (ADF)
  • Horizontal Situation Indicator (HSI)
  • Engine Gauges
  • ADF with Trim Indicator
  • Cessna Airspeed Gauge
  • RPM with Flaps Indicator

Flight Simulator X, Flight Simulator X Steam Edition (PC only), and X-Plane 10 Flight Instrument Panel support available at support download page

Fully Customizable For All Flying Conditons

Modular and Interchangeable

The Logitech G range of panels can be situated one on top of another or side-by-side. Want the Multi Panel above the Radio Panel? Done. Prefer your Switch Panel to the left of your Yoke? Go for it. Easy-to-use mounting brackets provide the means to arrange your flight simulation setup into any configuration

Simple Installation

Plug-and-Play All the Way

Your panel works with Windows 7, 8.1 and 10 and, following the quick installation of a small driver and plug-in from the support page, is compatible with your favorite flight simulation software for PCs including FSX - Flight Simulator X, X-Plane 10, and Prepar3D2.2.

Learn To Fly An MD80

Simulate the Actual Aircraft with This Kit

For a quick simulation configuration to get you in the pilots seat of an MD80 twin-engine commercial jetliner, this bundle is the recipe:

  • 1 Flight Yoke System
  • 2 Flight Instrument Panels
  • 1 Flight Switch Panel
  • 1 Flight Radio Panel
  • 1 Flight Multi Panel

Specifications

System Requirements

Windows 10, Windows 8.1, Windows 7

1-USB 2.0 Port

Internet connection for optional software download

Packaging Content

Flight instrument panel

Flight instrument bracket

User documentation

Physical Specifications

Flight Instrument Panel

Length

3.7 in (9.4 cm)

Width

1 in (2.6 cm)

Height

3.3 in (8.4 cm)

Weight (w/o bracket)

4.2 oz (118 g)

Weight

6.3 oz (178 g)

Cable Length (Power/Charging) 5.9 ft (1.8 m)

Flight Instrument Bracket

Length

3.7 in (9.4 cm)

Width

3.2 in (8 cm)

Height

3.2 in (8 cm)

Controller Specifications

Connection Type

USB

USB Protocol

 USB 2.0

USB Speed

 Full Speed

Indicator LIghts (LED)

Yes

LCD Display

 Yes

USB Ports (Built-in)

 No

Backlighting

 No

No additional files, specification sheets, guides or documentation found for product.

Warranty: 24 Month Return To Base

Full manufacturers warranty details are available at the manufacturers (Logitech) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
