All stock codes associated to this product
V11H796053, EB1795F, EB-1795F, 9314020623691
Overview
KEY FEATURES & BENEFITS
  - 3 x Brighter Colours and Reliable Performance* 3LCD, 3-Chip Technology.
  Look for both high colour brightness and high white brightness.

- Bright Images 3,200 lumens colour and 3,200 lumens white brightness.

- Brilliant Full HD performance 1080p resolution (1920 x 1080) for sharp,
  widescreen images.

- Wireless Project from your laptop, tablet, or smartphone without plugging
  into the projector, so you can move freely about the room.

- Travel Friendly Weighs just 1.83kg.

- Fast, easy image adjustments Auto horizontal and vertical keystone
  correction, plus Screen Fit to quickly adjust the image to fit the screen,
  even if the projector is placed off centre.

- Fast wireless setup for your mobile device Just scan the on-screen QR code
  using your phone or tablet.

- Versatile connectivity Compatible with the latest laptops and media
  players supports HDMI, Chromecast via HDMI and MHL-enabled
  devices.
* Colour Brightness (Colour Light Output) measured in accordance with
IDMS 15.4. Colour Brightness will vary depending on usage conditions. Leading
3LCD projectors compared to leading 1-chip DLP projectors, based on NPD data for
June 2013 through May 2014 and PMA Research data for Q1 through Q3
2013.
3LCD technology

All Epson projectors are based on 3-chip LCD technology for amazing colour,
incredible detail and solid reliability. 3LCD's 3-chip architecture dedicates an
entire chip to process each primary colour - red, green and blue, continuously.
Unlike single-chip technology that delivers colour sequentially, you get
full-time colour. The result is vibrant, realistic images and video all
delivered with 3LCD's true-to-life colour.
3x Brighter Colours with Epson Projectors*

Brilliant image quality requires high colour brightness (colour light
output), and Epson 3LCD projectors have 3 x Brighter Colours than leading
competitive projectors*.
One brightness measurement (lumens) is not enough. A projector's
specification needs to show both high colour brightness and high white
brightness. If colour brightness is lower than white brightness, images may be
dark, dull and lose detail. If not provided, be sure to ask for a projector's
colour brightness specification.
* Colour Brightness (Colour Light Output) measured in
accordance with IDMS 15.4. Colour Brightness will vary depending on usage
conditions. Leading 3LCD projectors compared to leading 1-chip DLP projectors,
based on NPD data for June 2013 through May 2014 and PMA Research data for Q1
through Q3 2013.

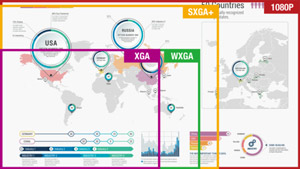

Brilliant High Definition

With brightness up to 3,200 lumens the screen is easily viewed from anywhere
in the room, even without dimming the lights. Even though its light weight and
compact size enable it to be carried from room to room, the projector is capable
of highly visible images thanks to its high brightness and superior 10,000:1
contrast ratio.
High Brightness
With 3,200 lumens, the 1975F screen is easily viewed from anywhere in the
room, even without dimming the lights. Even though its light weight and compact
size enable it to be carried from room to room, the projector is capable of
highly visible images thanks to its high brightness and superior 10,000:1
contrast ratio.
Enhanced connectivity with NFC

With the NFC function, the projector can be turned on automatically and
connected wirelessly by simply touching an NFC compatible smartphone to the
projector. Epson iProjection can also be connected automatically once the
compatible smartphone has been connected. Conventional cumbersome wireless
settings are no longer necessary.
Enhanced connectivity with iProjection

Wirelessly connect directly to laptops, tablets, smartphones or to a network
for easy control over your presentations. This free application allows you to
travel light and present from your mobile device. Just turn on the projector,
use Epson iProjection to scan the on-screen QR code, and share content on the
big screen.
Miracast

With Miracast support for screen mirroring, you can now project your
smartphone or tablet screens without a cable connection. Receive easy wireless
transmission of full HD (1080p) video and sound from your devices without the
complicated set up. There's also no need to purchase any external wireless
modules separately.
HDMI connectivity and MHL

Get both audio and brilliant HD video content with just one cable that can
connect with the latest laptops, Blu-ray Disc, media players and
MHL-enabled devices. The 1700 series enables you to display content from
MHL-enabled smartphones and tablets, as well as charge your MHL-enabled device
when its connected to the projector.
Gesture presenter

With this function, you can present smarter without a laser pointer. Simply
move your hand in front of the arrows and make your presentation more engaging
and realistic with the audience.
Easy image adjustments with Keystone Adjustor

Position your projector almost anywhere in the room and still get a correctly
proportioned image with auto vertical correction and Easy-Slide horizontal image
correction. In cases where the image extends beyond the frame of the screen or
whiteboard you just have to push the "Screen Fit" button and the image frame
automatically matches up with the edges of the screen. 'Slide keystone adjuster'
enables you to adjust the image easily and quickly, even in a limited space,
making it perfect for narrow spaces, such as on a desk.
Quick, convenient control

The Epson 1700 series is easier to control than ever through its Auto Power
On feature. There is no need to turn on the power using the remote control or
the power button on the projector itself because startup is activated with cable
insertion.
With Sleep Mode (A/V Mute) you can pause your presentation without turning
the projector off. The 1700 series also enables you to quickly power down the
projector, pack up and go with its Instant Off feature, allowing you
to control your projector with the flip of a switch.
Shorter throw distance

The short throw ratio means you can project onto a large screen even in small
spaces eliminating concern about where presentations can be made.
New Home screen

Get up and running in a snap with an intuitive, user-friendly home screen.
Select the content source and easily access frequently-used functions such as
keystone correction, volume control, Split Screen and more. Wireless connections
can be made easily because all the information you need is right there on the
screen.
Split Screen



Split Screen allows inputs from two separate sources to be displayed side by
side on the same screen. With three layout options you can display video and
presentation materials, and run video on both screens.
Front Exhaust
Thanks to front exhaust, the hot exhaust is directed away from your audience
and allows for efficient use of desk space
Longer lamp life

The long 7,000H* lamp life saves time and money by reducing the frequency of
costly lamp replacements.
* Power Consumption: ECO mode

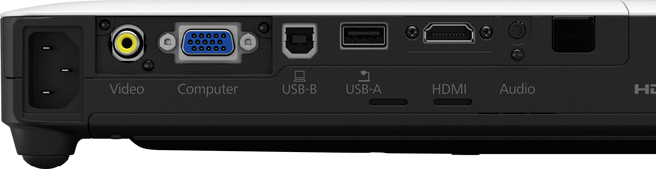

Connectivity Panel

Specifications


    | PRODUCT NAME | Epson EB-1795F |

    | PRODUCT CODE | V11H796053 |

    | WHAT'S IN THE BOX |  |

    |  | Epson EB-1795F Projector,1.8m Computer Cable, 3m USB A/USB B
      Cable, Remote Control, Soft Carry Case, Manual |

    | TECHNOLOGY |  |

    | Projection System | Epson 3LCD, 3-chip technology |

    | LCD Panel | 0.61-inch panel (D9) |

    | OPTICAL |  |

    | Zoom | 1-1.2 (Optical Zoom) |

    | Screen Size | 30" to 300" [0.67 to 6.86 m] (Zoom:Wide) 30" to
      300"[0.81 to 8.28 m] (Zoom:Tele)
 |

    | Projection Distance | 60" screen 1.35 - 1.64 m |

    | Throw Ratio | 1.02 (Zoom:Wide), 1.23 (Zoom:Tele) |

    | Projection Lens F Number | 1.58mm-1.70mm |

    | Projection Lens Focal Length | 14.06mm-16.82mm |

    | Focus Method | Powered Focus |

    | Offset | 13.9:1 |

    | IMAGE |  |

    | Colour Light Output | 3,200 Lumens |

    | White Light Output | 3,200 Lumens |

    | Resolution |  |

    | Native Aspect Ratio |  |

    | Contrast Ratio |  |

    | Lamp Hours | Normal/Eco: 4,000/7,000 Hours |

    | Lamp Type | 214W UHE |

    | Keystone Correction | Vertical : -45 degrees to +45 degrees Horizontal: -30
      degrees to +30 degrees
 |

    | CONNECTIVITY |  |

    | Input: Video | 1 x RCA (Yellow) |

    | Input: Computer | 1 x D-sub 15-Pin (RGB), 1 x USB 2.0 type B |

    | Input: USB Memory Device | 1 x USBType A |

    | Input: Three-In-One USB Display | 1 x USB 2.0 Type B |

    | Input: Digital | 1 x HDMI (1 x MHL) |

    | Input: Audio | 1 x Stereo mini jack |

    | Input: Control | 1 x USB 2.0 Type B |

    | Input: Epson USB Document Camera | 1 x USB 2.0 type A |

    | Wireless Connectivity | included |

    | NFC | included |

    | WiDI/Miracast | included |

    | Speaker Output | 1W |

    | ADVANCED FEATURES |  |

    | EasyMP Network & Control | Yes |

    | EasyMP Network Projection | Yes |

    | PC Free Presentations | Yes |

    | USB Plug 'n Play | Yes |

    | AV Mute | Yes |

    | Instant Off | Yes |

    | Direct Power On/Off | Yes |

    | Gesture Presenter | Yes |

    | Security | Kensington -style lock provision Password
      protect function
 |

    | Colour Modes | Dynamic, Presentation, Cinema, sRGB, Blackboard, DICOM
  SIM |

    | GENERAL |  |

    | Dimensions D x W x H (excluding feet) | 213 x 292 x 44 mm |

    | Weight | 1.83kg (approximate) |

    | Compatible lamp model | ELPLP94 (New) |

    | Lamp Warranty | 12 months or 750 hours* |

    | Projector Warranty | 3 Years |

    | Power Consumption: Lamp on | Normal/Eco: 295/208W |

    | Noise Level | Normal/Eco: 39/30dB |

    |  |

    | * Which ever comes first. For more information visit
      Epson Projector Warranty |

    | PRODUCT OPTIONS | Item Code | Description |

    |  | V13H010L94 | Replacement Lamp ELPLP94 |

    |  | V13H134A53 | Replacement Air Filter ELPAF53 |

    |  | V12H003B23 | Ceiling Mount (Standard) ELPMB23 |

    |  | V12H003D01 | Setting Plate for Mount ELPPT01 |

    |  | V12H003P13 | Extension Pole 668-918 mm |

    |  | V12H003P14 | Extension Pole 918-1,168 mm |

    |  | V12H002S2Y | 80" Portable Tripod Screen ELPSC21B |

    | Epson is the registered trademark of Seiko Epson
      Corporation. Epson ESC/P2 and Epson Stylus are trademarks of Seiko Epson
      Corporation. MicroDot is a trademark of Epson Australia Pty Limited. All
      other product names and other company names used herein are for
      identification purposes only and may be the trademarks or registered
      trademarks of their respective owners. Epson disclaims any and all rights
      in those marks. Specifications are subject to change without
  notice. |
Equipment supplied by Epson Australia is designed to function in conjunction
with genuine Epson consumables and accessories specifically configured for
it.
