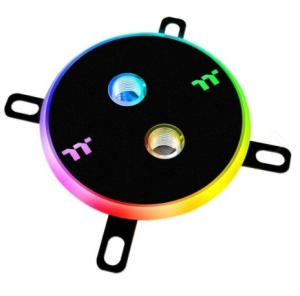

Thermaltake CL-W181-CU00SW-A Pacific W4 Plus CPU Water Block



Overview

Thermaltake combines the gorgeous LED light with cutting-edge technology to deliver a brand new experience of using PC cooling, the Thermaltake Pacific W4 Plus CPU Water Block. Coming with a 16.8 million colors LED ring, 12 addressable single LEDs, 11 LED lighting modes (Copy color, Full lighted, RGB spectrum, ripple, pulse, wave, flow, sound effects, blink, cross and thermal), the Pacific W4 Plus CPU Water Block can be controlled by the patented Riing Plus RGB Software. Plus, it features 0.15mm internal fin construction, a copper base with anti-corrosive nickel plating and high-quality PMMA cover, and a universal mounting mechanism that offers error-free as well as no-tools installation. Fits with most G1/4 fittings, the Pacific W4 Plus provides the ultimate in cooling performance, and delivers extreme compatibility for custom PC builders.

Tt LCS Certified

Tt LCS Certified is a Thermaltake exclusive certification applied only to products that pass the design and hardcore enthusiast standards that a true LCS chassis should hold to. The Tt LCS certification was created so that we at Thermaltake can indicate to all power users which chassis have been tested to be best compatible with extreme liquid cooling configurations, ensuring you get the best performance from the best features and fitment.

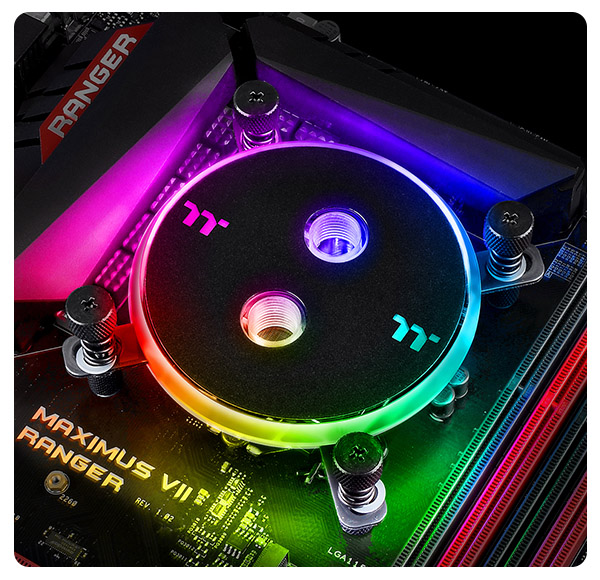

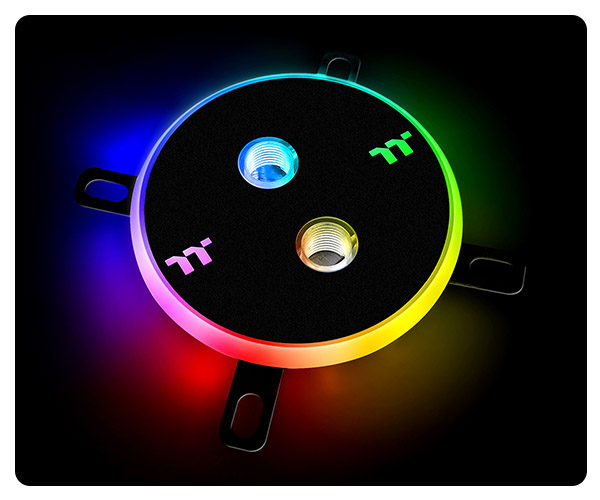

16.8 Million Colors RGB LED Design

Featuring 12 addressable single LEDs, great light coverage, and uniform color and brightness, the built-in LED ring can paint your build with 16.8 million colors.

Patented Riing Plus RGB Software & App

Monitor the fan performance, adjust the fan speeds, and customize the lighting effects for Thermaltake Plus RGB liquid cooling products with the patented Riing Plus RGB Software and an exclusively designed mobile app. Choose a function from below and scroll down to read the details.

Light Mode - Copy Color

Apply one of the present light modes that allow you to switch between different lighting schemes along with three Color modes (RGB, Single and Off) and four Light Speeds (Slow, Normal, Fast and Extreme).

Copy Color Seamlessly transfer lighting effects of the first device across to others.

Color Palette

Immediately personalize your lighting with the recommended color palette. You can change colors and brightness for the LED light which features 16.8 million colors, or the built-in single LEDs where the lights can be adjusted individually. You also can let each LED display a specific color. Press Color, enter the decimal color coded, and then save it.

Profiles

Conveniently control all devices and customize the lights at the same time by setting up to five profiles for each controller. Each controller your system connected is displayed at the top left of the interface for you to quickly access. Within each profile, you can check which device is set to what operating mode and lighting effect. You can even SAVE and apply the settings to other controllers your system is running.

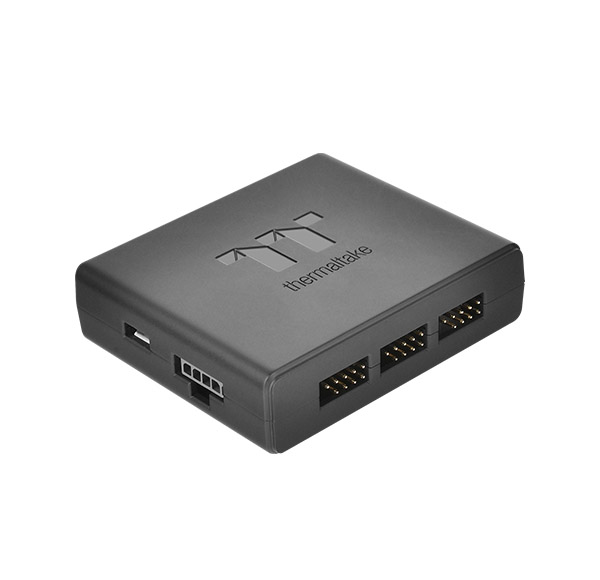

Digital Lighting Controller

The controller is designed with a DIP switch on the back. Hence, you can set a number for each controller easily. You can add up to 5 devices to one lighting controller and up to 16 controllers to the software. The controller and the coding guide are included in all packs.

*It is recommended to connect up to 3 controllers on one peripheral cable( Molex) only.

Anti-Corrosion Design

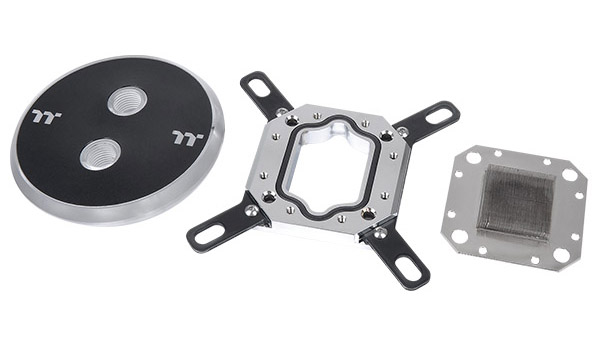

Made in Taiwan, the Pacific W4 Plus Water Block’s specially machined copper base prevents corrosion and the high quality PMMA cover allows users to directly see through the water block. The mating surface to the CPU has a mirror finish, providing exceptional heat transfer for the most demanding use conditions.

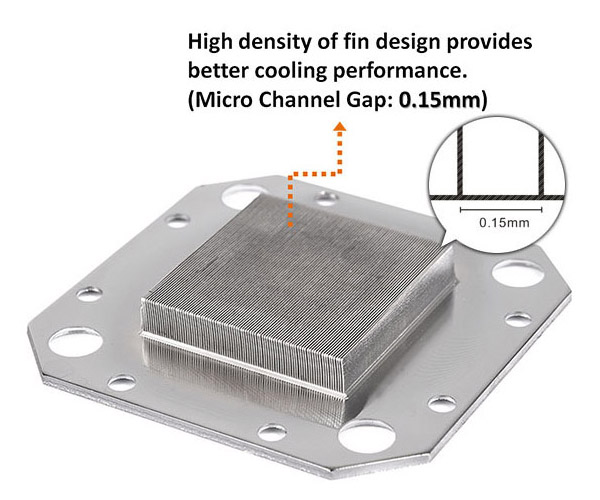

Optimized Micro-Channel Structure

The Pacific W4 Plus Water Block is designed with a compact form factor featuring 0.15mm micro-channel fin construction for optimal clearance and extreme heat dissipation.

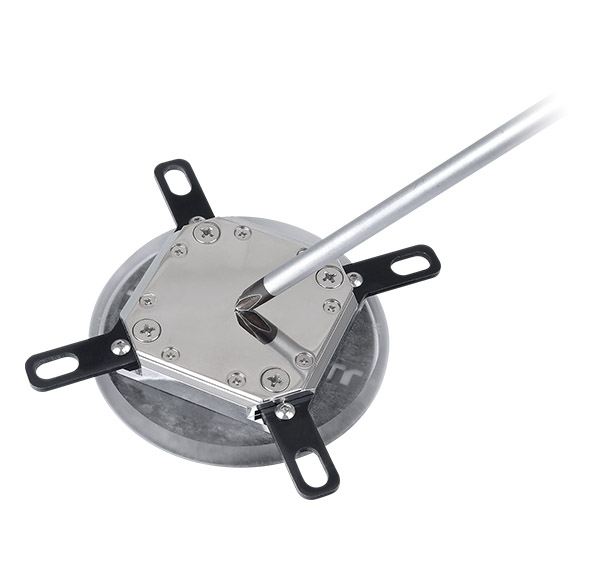

No-Fuss Expansion

Designed to fit all modern CPU sockets with universal mounting mechanisms, the Pacific W4 Plus allows enthusiasts to build superior water-cooling systems from an aesthetic standpoint as well as incorporate modular chassis upgrades for the future.

Specifications

P/N

CL-W181-CU00SW-A

Compatibility

Intel: LGA 2066/2011-3/2011/

1366/1156/1155/1151

/1150/775

AMD AM4/FM2/FM1

AM3+/AM3/AM2+/AM2

Dimension

93.4L * 93.4 W* 22 H mm

Heatsink Material

Copper + PMMA

Rated Voltage

5V

Power Input

2.4 W

Connector

4-Pin Molex

Threads

G

Weight

670 g

No additional files, specification sheets, guides or documentation found for product.

Warranty: 12 Month Return To Base

Full manufacturers warranty details are available at the manufacturers (ThermalTake) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
