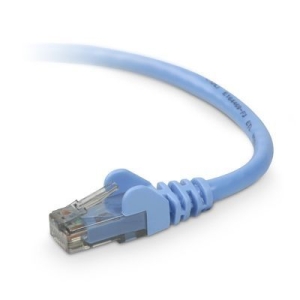

Belkin CAT6 Snagless Patch Cable - 3m, Blue
Upgrade your network with a CAT6 Snagless Networking Cable from Belkin and
enjoy clean, clear transmissions. Now you can replace CAT5 cables that dont
support 100Base-T or gigabit Ethernet and improve the return loss in your
current network by 40 percent. Engineered with 50-micron, gold-plated connectors
to ensure clear transmissions and snagless molds to protect the RJ45 tab from
damage during installation, this cable meets the performance requirements of
Category 6.Belkin Build-To-Order Service: Belkin can manufacture virtually any
cable type, length, or color. Contact your Belkin team today to get pricing and
lead times.
Features
- Maximize your network speed with higher bandwidth
- Perfect for VoIP, video, and file transfers
- Performance tested - tested to exceed 500MHz
- Protect your network for future expansion
- Belkin Lifetime Warranty
Specifications
|
Characteristic Impedence |
10015 @ 1 ~ 550MHz |
|
Conductor Construction |
Bare Stranded Copper |
|
Conductor Resistance |
93.8/km/20C max |
|
Conductor Size |
24AWG x 4pairs |
|
Dielectric Strength |
AC 1.5kV |
|
Flame Retardant Test |
CM |
|
Insulation Material |
HDPE |
|
Jacket Material |
PVC |
|
Mutual Capacitance |
56pF/m max |
|
Propagation Delay |
536nS/100m max @ 550MHz |
|
Spark Test |
2.5kV |
|
Standards Compliance |
ISO/IEC 11801; TIA/EIA-568-B.2-1 |
|
Structural Return Loss |
8.6dB min at 550MHz |
|
Cable Type |
Cat 6 |
|
Cable Characteristic |
Unshielded twisted pair (UTP) |
|
Connector on First End |
1 x RJ-45 - male |
|
Connector on Second End |
1 x RJ-45 - male |
|
Jacket Diameter |
5.90.15mm |
|
Connector Type(s) |
50 micron gold-plated
connector |
