Aten CS1922M 2-Port USB3.0 4K DisplayPort MST KVMP Switch
Incorporating the latest Multi-Stream Transport (MST) technology, the CS1922M
2-Port USB 3.0 4K DisplayPort MST KVMP™ Switch is the world’s first DisplayPort
KVM switch with a built-in MST hub. The CS1922M enables users to adopt two
console displays from a single DisplayPort 1.2 video source, providing an
extended desktop mode and splitter mode at resolutions up to 4K for multitasking
across two displays while reducing bulky cable connections.
To meet the ever-increasing demand for high-speed peripheral data
transmissions, the CS1922M integrates a USB 3.1 Gen 1 hub to deliver
unprecedented data transfer rates up to 5 Gbps allowing you to maximize
multitasking operations.
The unique independent switching feature allows the KVM switchs focus to be
on one computer while its USB peripheral focus is on another computer. This
eliminates the need to purchase a separate USB hub or stand-alone peripheral
sharer such as a print server or splitter. Additionally, the switch allows you
to share the audio from each of the connected computers and even allows HD audio
transmitted through a DisplayPort source.
With a rich feature set, the CS1922M is designed to exceed the requirements
such as excellent video quality and ultra-fast data transmission speed for
gaming, graphic design, animation, and video-editing applications.
Features
World’s First DisplayPort KVM Switch with Built-in MST
Hub
- One USB keyboard/mouse and DisplayPort or HDMI monitor control 2 computers
and 2 USB peripherals
- Built-in Multi-Stream Transport (MST) hub allows dual displays
(DisplayPort / HDMI) from a single DisplayPort source *
- Supports MST Mode, Splitter Mode, and Single Port Mode.
- 2-port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer speeds
- DisplayPort Dual-Mode (DP++) technology supports HDMI and DVI signals via
a DisplayPort-to-HDMI/DVI DP++ adapter **
- Firmware upgradeable
- Hot pluggable – add or remove computers without powering down the
switch
Remarkable Audio/Video Experience
- Superior video quality – 4K UHD (3840 x 2160 @ 60 Hz) and 4K DCI (4096 x
2160 @ 60 Hz)
- DisplayPort 1.2 compliant, HDCP compliant
- Supports HD audio through DisplayPort ***
- Full bass response for high-quality 2.1 channel surround sound
systems
Intelligent Operation
- Computer selection via front panel pushbuttons, hotkeys, mouse ****, and
RS-232 commands
- Independent switching of KVM, USB hub, and Audio focus
- Power On Detection – if a computer is powered off, the CS1922M
automatically switches to the next powered-on computer
- Auto Scan Mode for monitoring all computers
Versatile Compatibility
- Keyboard emulation/bypass feature supports most gaming keyboards
- Mouse emulation/bypass feature supports most mouse drivers and
multifunction mice
- Multi-platform support – Windows, Mac and Linux
- Multilingual keyboard mapping supports English, Japanese, French and
German keyboards
Note:
- The PC source must be DisplayPort 1.2 compliant.
- DisplayPort Dual-Mode technology (DP++) does not require an active adapter
for most single display setups
Active DisplayPort adapters are recommended if you are unsure of the video
source's DP++ compatibility.
- HD audio through DisplayPort cannot be switched independently.
- Mouse port switching is only supported under mouse emulation mode with a
USB 3-button mouse wheel.
Package Contents
- 1x 2-Port USB 3.0 4K DisplayPort MST KVMPâ„¢ Switch
- 2x DisplayPort 1.2 Cables (1.5m/5ft)
- 2x USB Cables (USB 3.0-A to USB 3.0-B; 1.8m/6ft)
- 4x Audio Cables (1.8m/6ft)
- 1x Power Adapter
- 1x User Instructions

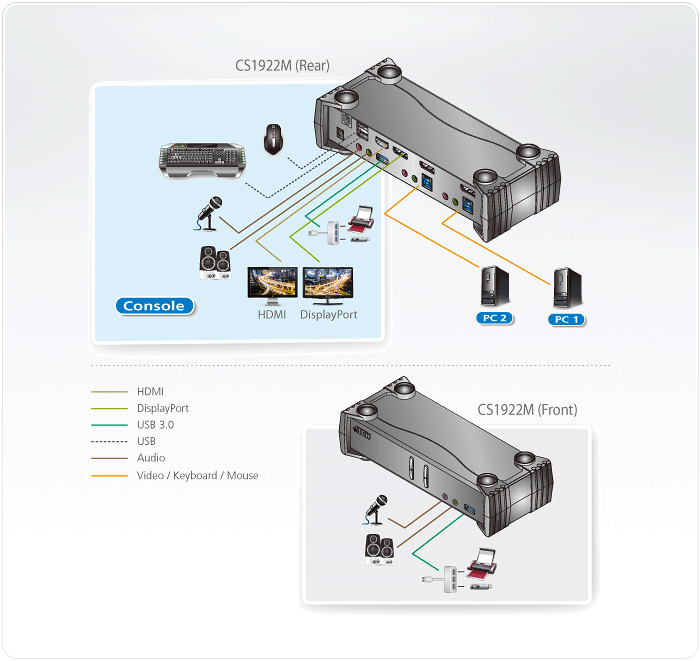

Diagram
Specifications
|
Computer Connections |
2 |
|
|
|
Port Selection |
Hotkey, Pushbutton, Mouse, RS-232 Commands |
|
|
|
Connectors |
|
|
Console Ports |
2 x USB Type A Female |
|
1 x DisplayPort Female (Black) |
|
1 x HDMI Female (Black) |
|
2 x 3.5mm Audio Jack Female (Green; 1 x front, 1 x
rear) |
|
2 x 3.5mm Audio Jack Female (Pink; 1 x front, 1 x
rear) |
|
1 x RJ-11 Female |
|
KVM (Computer) Ports |
2 x USB3.1 Gen1 Type B Female (Blue) |
|
2 x DisplayPort Female (Black) |
|
2 x 3.5mm Audio Jack Female (Green) |
|
2 x 3.5mm Audio Jack Female (Pink) |
|
Power |
1 x DC Jack |
|
USB Hub |
2 x USB3.1 Gen1 Type A Female (Blue; 1 x front panel; 1 x rear
panel) |
|
|
|
Switches |
|
|
Selected |
2 x Pushbutton |
|
|
|
LEDs |
|
|
On Line /Selected |
2 (Orange) |
|
USB Link |
2 (Green) |
|
|
|
Emulation |
|
|
Keyboard / Mouse |
USB
|
|
Video |
4096 x 2160 @ 60Hz
|
|
Scan Interval |
1-99 seconds (Default: 5 seconds)
|
|
Power Consumption |
DC 5.0V; 3.44W |
|
|
|
Environmental |
|
|
Operating Temperature |
0-50 degree C |
|
Storage Temperature |
-20-60 degree C |
|
Humidity |
0-80% RH, Non-condensing |
|
|
|
Physical Properties |
|
|
Housing |
Metal, Plastic |
|
Weight |
0.73 kg ( 1.61 lb ) |
|
Dimensions (L x W x H) |
21.00 x 8.80 x 5.55 cm |
|
(8.27 x 3.46 x 2.19 in.) |
|
|
|
Note |
For some of rack mount products, please note that the standard physical
dimensions of WxDxH are expressed using a LxWxH
format. |
