All stock codes associated to this product
CA1H700M1WN00, CA-1H7-00M1WN-00
ThermalTake Versa C23 Tempered Glass Mid-Tower Case - No PSU, Black - RGB Edition
Perfectly designed for gamers, the new Versa C23 Tempered Glass RGB Edition
Mid-Tower chassis comes with brushed aluminum front and top panels for elegant
aesthetic, an 4mm thick enlarged tempered glass side panel for a direct view of
the inner system, and with the built-in RGB LED illuminating on front right and
top right edges and also around top front I/O ports to give users a personal
touch with 11 lighting modes whilst adding incredibly stunning visual
perspective to the system. The Versa C23 TG RGB Edition supports the latest PC
hardware and all high-end GPU solutions, guarantees on unparalleled
expandability for high-end configurations and liquid cooling system to satisfy
the market where users have opted for stylish PC chassis with advanced features
and aesthetic appeal.
Tt LCS Certified
Tt LCS Certified is a Thermaltake exclusive certification applied to only
products that pass the design and hardcore enthusiasts standards that a true LCS
chassis should be held to. The Tt LCS certification was created so that we at
Thermaltake can designate to all power users which chassis have been tested to
be best compatible with extreme liquid cooling configurations to ensure you get
the best performance from the best features and fitment.

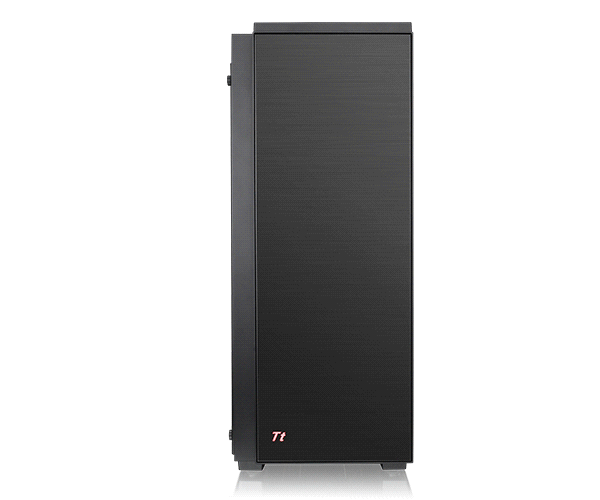

Aluminum Front and Top Panels
Featuring brushed aluminum front and top panels to mask the extrusive drive
devices, not only unify the appearance, but also provide a simple yet elegant
aesthetic.
Gorgeous RGB LED Illumination
The Versa C23 RGB is an ideal chassis for those who want to show their style
and personality in a subtle manner. With the RGB LED controller on the front-top
panel, users get to enjoy 11 vivid lighting modes, including static color
(red/blue/white/green), RGB spectrum and RGB breathing.

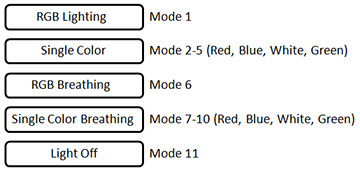

RGB Control Mode:
*Long
press on the control button will immediately turn the light off, press the
control button once again to restore it to original states.
Control All Your RGB Lights by One Button
With the integrated RGB LED controller on the front-top panel, all the
lighting effects of Thermaltakes Riing 12 RGB fan can fully sync with the lights
of the built-in RGB LED.

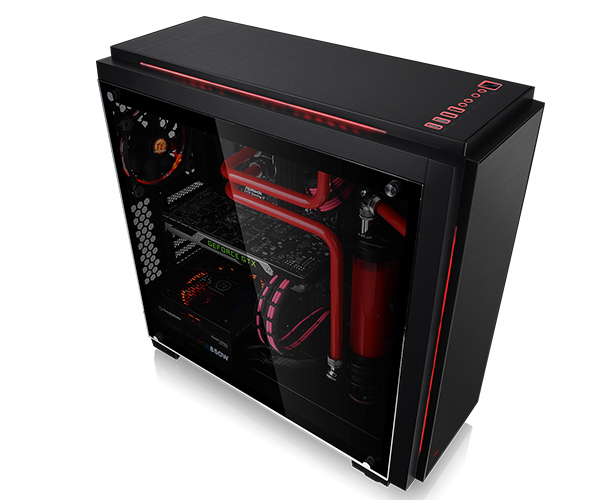

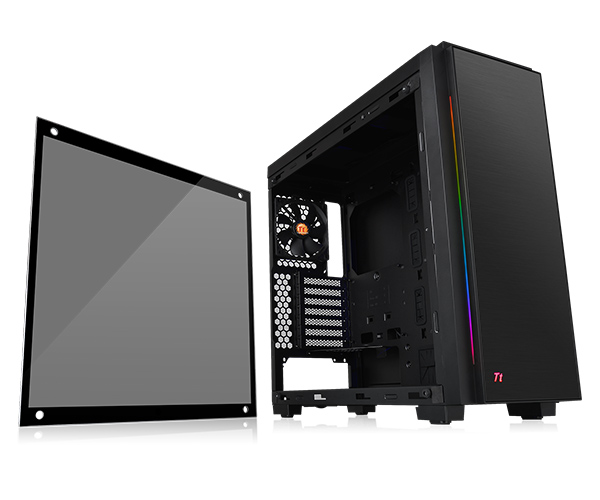

4mm Thick Enlarged Tempered Glass Side Panel
Versa C23 TG RGB adopts right 4 mm thick tempered glass window guarantees the
durability of the window; moreover, the enlarged window design permits users to
fully display and admire all components of the liquid-cooling system. Show off
your dedicated set in the subtlest manner!
Fully Modular Concept
The fully modular drive cages minimize the hassles of installation and
removal. Especially, the 3.5” &2.5” drive bay is applied tool-less design
that allows users to freely interchange the hard-drives to suit their particular
needs. The dual drive bay concept of “2+6” offers a good ratio for accessories
and storage devices.

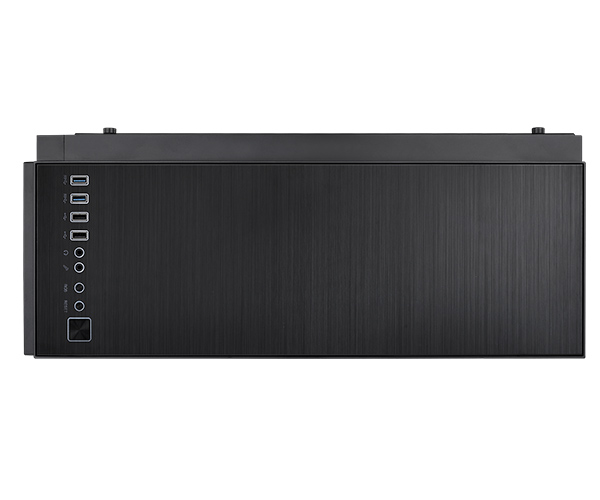

Handy I/O Ports
The top-front panel is designed two USB 3.0 data transfer ports along with
two standard USB 2.0 ports and a LED controller, to grand direct access when
needed.
Superior Hardware Support
The Versa C23 TG RGB supports motherboards up to standard ATX, a tower CPU
cooler with maximum height 155mm, and a dual expansion slot VGA of up to 400mm
in length without front fan. Moreover, with the tool-free design, users can
easily mount up to two 3.5”/2.5” (with HDD tray) and two 2.5” (with the M/B
tray) storage devices into the build at the same time.
Outstanding
Ventilation

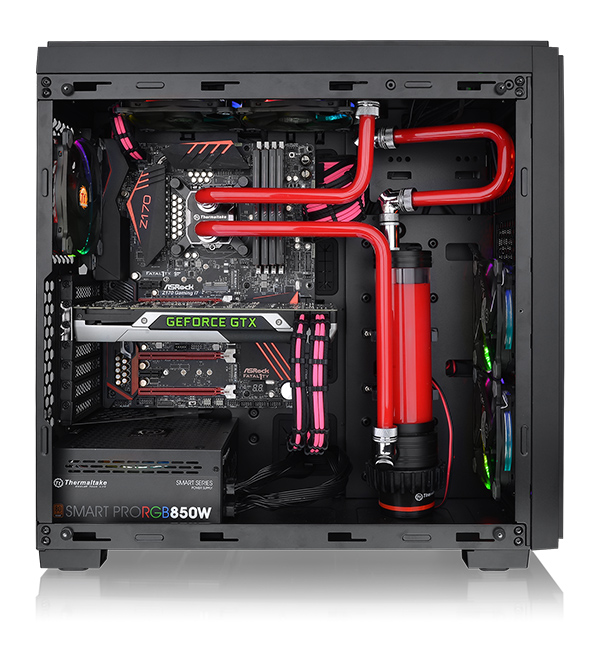

The Versa C23 TG RGB’s unparalleled cooling ability offers various mounting
points to support any type of cooling you can dream of including DIY/AIO

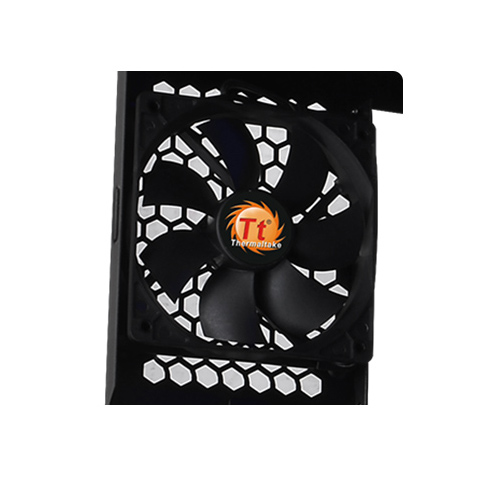

liquid-cooling systems and air-cooling units. Apart from the built-in 120mm rear
fan, users are allowed to install up to 240mm DIY liquid cooling radiator or two
120mm fans at the front to optimize system ventilation.
Specifications
| P/N |
CA-1H7-00M1WN-00 |
| Dimension (H x W x D) |
510 x 200 x 508mm
(20.1 x 7.9 x 20 inch) |
| Net Weight |
8.5 kg / 18.73 lb |
| Side Panel |
Tempered Glass*1 |
| Color |
Exterior &Interior : Black |
| Material |
SPCC |
| Cooling System |
Rear (exhaust) :
120 x 120 x 25 mm Turbo fan (1000rpm,
16dBA) |
| Case Type |
Mid Tower |
Drive Bays
-Accessible
-Hidden |
2 x 3.5 or 2 x 2.5, 4 x 2.5"
|
| Expansion Slots |
7 |
| Motherboards |
6.7 x 6.7 (Mini ITX), 9.6 x 9.6 (Micro ATX),
120 x 9.6 (ATX) |
| I/O Port |
USB 3.0 x 2, USB 2.0 x 2, HD Audio x 1 |
| PSU |
Standard PS2 PSU (optional) |
| LCS Upgradable |
Supports 1/23/81/4 water tube |
| Fan Support |
Front:
2 x 120mm
Top:
2 x 120mm
Rear:
1 x
120mm |
| Radiator Support |
Front:
1 x 240mm , 1 x 120mm
Top:
1 x 240mm, 1 x
120mm
Rear:
1 x 120mm
*Only Applicable up to 40mm high and 120mm
wide |
| Clearance |
CPU cooler height limitation: 155mm
VGA length limitation:
400mm(Without Front Fan)
PSU length limitation:
220mm |
