All stock codes associated to this product
VGA2HD2, 2350806, 65030848732

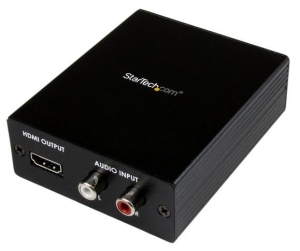

StarTech Component/VGA Video & Audio to HDMI
Converter
The VGA2HD2 Component/VGA to HDMI Video Converter offers seamless conversion
from an analog VGA or Component video source, such as a Computer, DVR, or DVD
player, to a digital HDMI output.
The converter helps reduce equipment costs by eliminating the need to upgrade
individual analog components, by offering a solution that converts an analog
video source (RGB/YPbPr) for use with a digital HDMI display.
This versatile analog-digital converter not only supports resolutions up to
1920x1200 including high-definition 1080p, but also enables you to convert and
combine an analog RCA audio source into its digital HDMI output signal.
The VGA2HD2 Component/VGA to HDMI converter is backed by a StarTech.com
2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Eliminates equipment costs by providing an alternative to the device
upgrades required for compatibility between a VGA or Component video output
and an HD display
- Ensures durability, with a rugged metal enclosure
- Delivers worry-free performance, with a 2-year warranty and free lifetime
technical support
Specifications
| Warranty Information |
| Warranty |
2 Years |
| Hardware |
| Active or Passive Adapter |
Active |
| Audio |
Yes |
| Converter Type |
Format Converter |
| Output Signal |
HDMI |
| Performance |
| Supported Resolutions |
Maximum of 1080p for HD Input, and 1920x1200 for PC input |
| Wide Screen Supported |
Yes |
| Connector(s) |
| Connector A |
1 - Component Video (3 x RCA) Male Input |
|
1 - Stereo Audio (2 x RCA) Female Input |
|
1 - VGA (15 pin, High Density D-Sub) Female Input |
| Connector B |
1 - HDMI (19 pin) Female Output |
| Special Notes / Requirements |
| System and Cable Requirements |
HDMI M/M Cable (Destination)
VGA M/M Cable (If using VGA as source)
|
| Power |
| Center Tip Polarity |
Positive |
| Input Current |
0.3A |
| Input Voltage |
100 ~ 240 AC |
| Output Current |
1.2A |
| Output Voltage |
5 DC |
| Plug Type |
N |
| Power Consumption (In Watts) |
6 |
| Power Source |
AC Adapter Included |
| Environmental |
| Humidity |
20~90% RH |
| Operating Temperature |
0C to 40C (32F to 104F) |
| Storage Temperature |
-20C to 60C (4F to 140F) |
| Physical Characteristics |
| Color |
Black |
| Product Height |
1.2 in [30 mm] |
| Product Length |
4.3 in [110 mm] |
| Product Weight |
6.7 oz [190 g] |
| Product Width |
3.1 in [78 mm] |
| Packaging Information |
| Shipping (Package) Weight |
1.2 lb [0.5 kg] |
| What's in the Box |
| Included in Package |
1 - PC/HD to HDMI Converter with Audio |
|
1 - VGA to Component (RCA) Breakout Cable |
|
1 - Universal Power Adapter (US/UK/EU/AUS) |
