Aten VC985 DisplayPort to HDMI Adapter
Features
- Converts DisplayPort signals to HDMI output
- DisplayPort 1.2 a compliant
- Supports VGA, SVGA, XGA, SXGA, UXGA and resolutions up to 1080p (HDTV)
- Audio Supported
- No software or driver installation required
Overview
The VC985 is a DisplayPort to HDMI adapter, allowing you to connect your
device’s DisplayPort output to the HDMI input of a TV or other display. The
VC985 provide a cost-effective yet high performance signal conversion solution.
This adapter is therefore perfect for computers and notebooks, supporting
display resolutions of up to 1080p (1920x1080@60Hz).
Package Contents
- 1x DisplayPort to HDMI Adapter

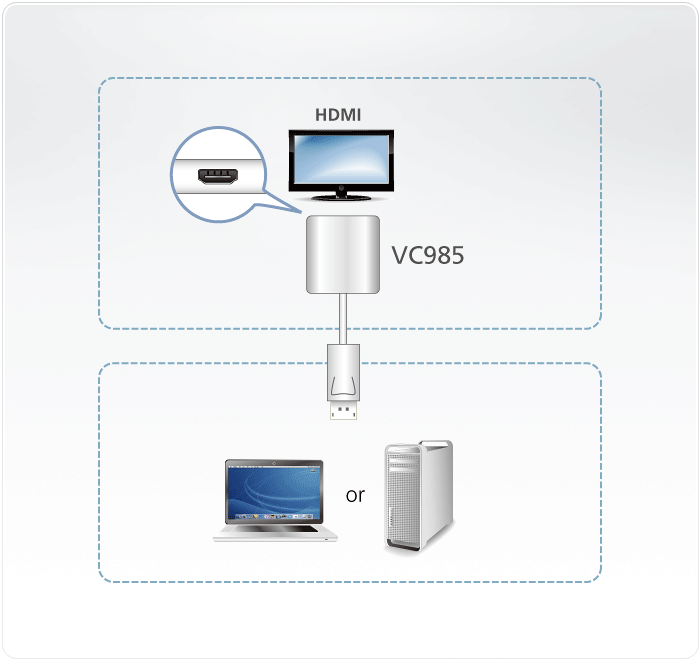

Diagram
Specifications
Video Input |
|
Interfaces |
1 x DisplayPort Male (White) |
Video Output |
|
Interfaces |
1 x HDMI Type A female (Black) |
Video |
|
Max. Pixel Clock |
165MHz |
Compliance |
DP1.1a |
Max. Resolution |
1920 x 1080@60HZ |
Audio |
|
Output |
1 x HDMI Type A Female (Black) |
Environmental |
|
Humidity |
0 - 80% RH, Non-Condensing |
Operating Temperature |
0 - 50 ºC |
Storage Temperature |
-20–60 ºC |
Physical Properties |
|
Housing |
Plastic |
Weight |
0.04 kg ( 0.09 lb ) |
Dimensions (L x W x H) |
18.00 x 4.50 x 1.50 cm |
|
(7.09 x 1.77 x 0.59 in.) |
Carton Lot |
40 pcs |
Note |
For some of rack mount products, please note that the standard physical
dimensions of WxDxH are expressed using a LxWxH
format. |
